Balestrini Pico MD2 tenonneuse mortaiseuse 2006

Balestrini Pico MD2 tenonneuse mortaiseuse 2006 – Image 2

Balestrini Pico MD2 tenonneuse mortaiseuse 2006 – Image 3

Balestrini Pico MD2 tenonneuse mortaiseuse 2006 – Image 4

Balestrini Pico MD2 tenonneuse mortaiseuse 2006 – Image 5

Balestrini Pico MD2 tenonneuse mortaiseuse 2006 – Image 6

Balestrini Pico MD2 tenonneuse mortaiseuse 2006

Imprimer

UGS : 2635 Catégories : Machine de portes à angles, Mortaiseuse Cnc, Tenonneuse Cnc

Description

Description

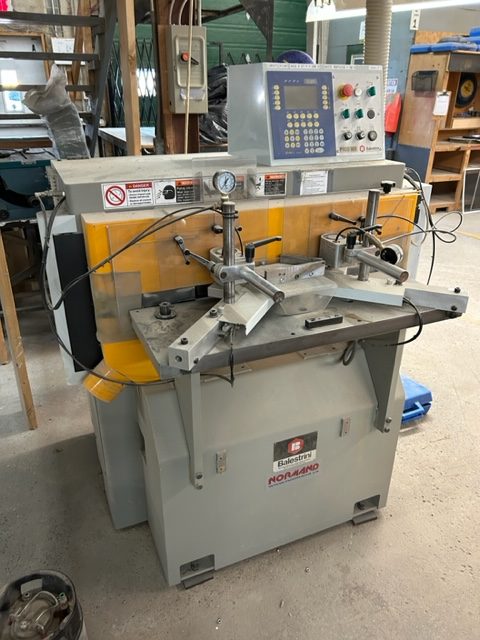

Balestrini Pico MD2

Année: 2006

480 VOLTS /60/3

Machine en excellente condition reconditionner

Description:

BALESTRINI PICO MD CNC Round End Tenoner/Mortiser

•	Great compact CNC for MITERED cabinet door and furniture parts; equipped with a tenoning block and a slot mortiser, and scribing function to achieve a chip free cut. Technical Specifications:
•	Max. depth of mortise/tenon 50 mm (1.97″);÷Max. thickness of mortise/tenon 38 mm (1.5″)
•	Max. frame width 120 mm (4.72″);÷Max. thickness 40 mm (1.57″).
•	Tenon/Cut-off motor 4.1 KW (5.5 HP); motor speeds 9,000 & 12,000 RPM.
•	Mortising motor 2 KW (2.7 HP); motor speeds 9,000/12,000 &18,000 RPM.
•	(2) Adjustable pneumatic lateral clamps;
•	(2) Dust collection points for 100 mm (4. « ) pipe.
•	Separate floor standing control cabinet. Front mounted start/stop controls. Touch screen controller with 40 Gb hard disk storage; Simple programming with pre-installed macro’s; Offset function allows easy reset of programming to obtain a tighter or looser fit tolerance as needed.

2635
