Description
Beam saw Holzher Cut 6120, 2016
-Cutting length: 3,900mm (153.5″)
-Pusher stroke: 3,900mm (153.5″)
-Saw blade projection: 82mm (3.23″)
-Clamp opening: 82mm (3.23″)
-Main saw blade motor: 15 HP
-Main saw blade diameter: 350mm (13.78″)
-Scoring saw blade motor: 1.5 HP
-Scoring saw blade diameter: 180mm (7.09″)
-Saw carriage feed speed: 1-100 MPM (3 – 328.08 FPM)
-Saw carriage return speed: 130 MPM (426.51 FPM)
-Rip fence feed speed: 0-100 MPM (0-328.08 FPM)
-Rip fence return speed: 100 MPM (328.08 FPM)
-7 grippers (6 standard and 1 clamp as double finger clamp for clamping 3 strips each 80mm, max)
-3 air tables
-Electronically controlled pressure beam
-Electronically adjustable prescoring saw
-Electronically controlled saw carriage with cut-out device
-Grooving height motor-driven adjustment
-Rack and pinion

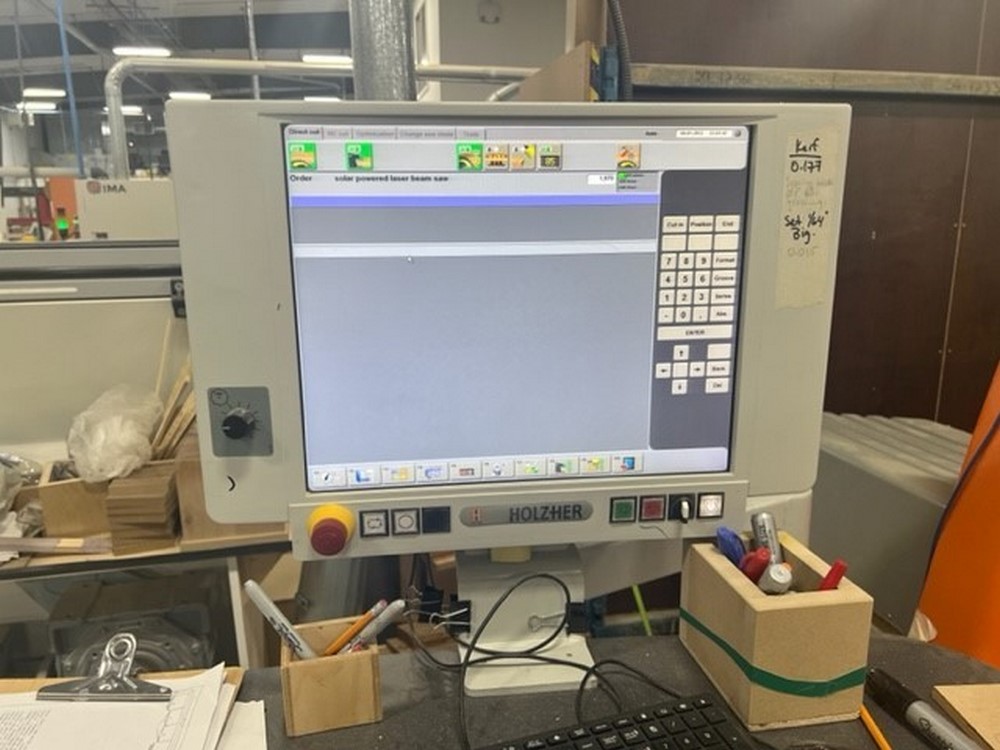

-19″ TFT display
-CUTCONTROL 2
-EASY-PLAN optimisation module
Machine en Colombie Britannique
