Description

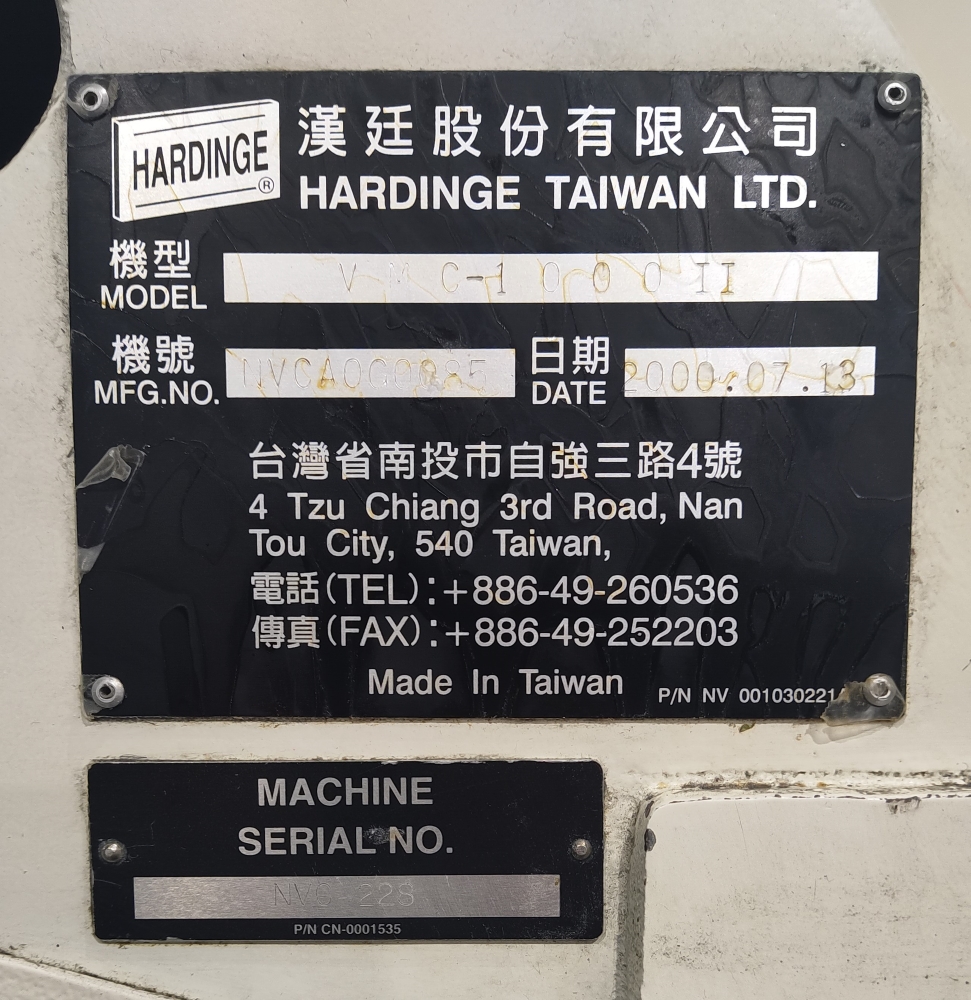

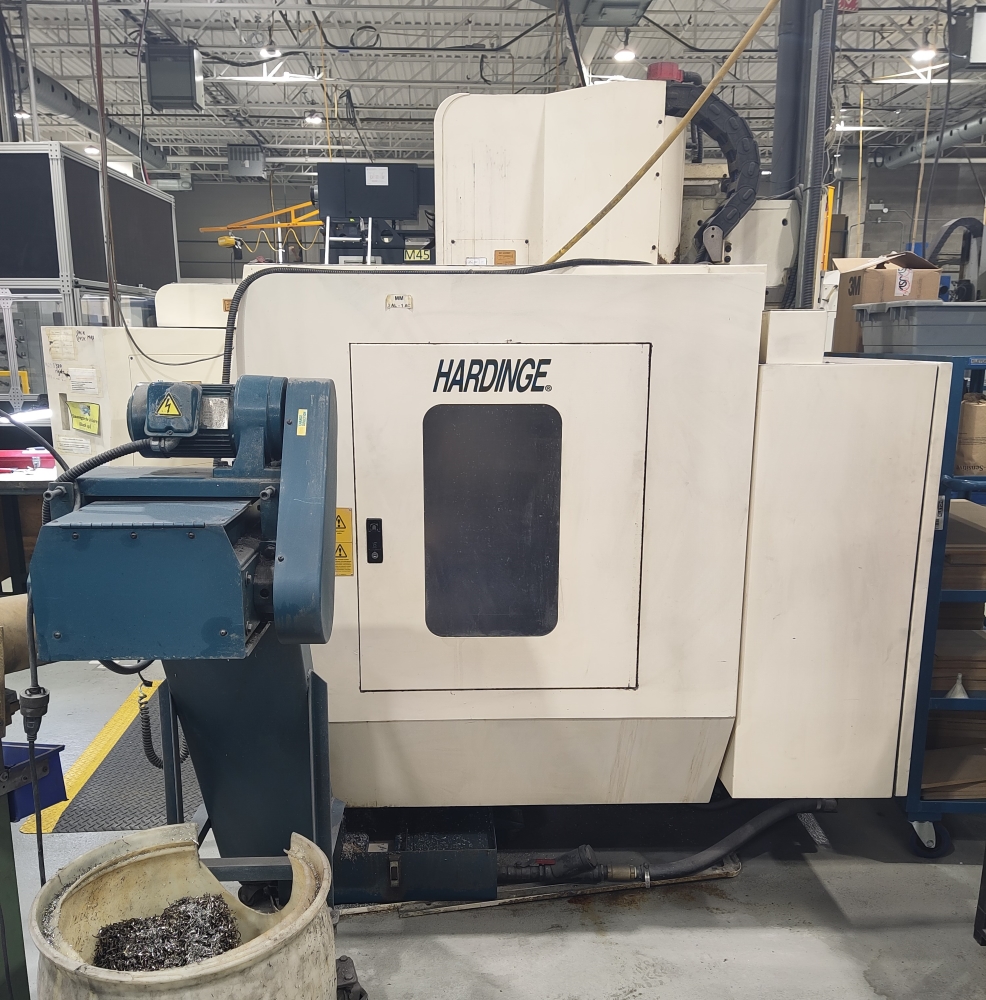

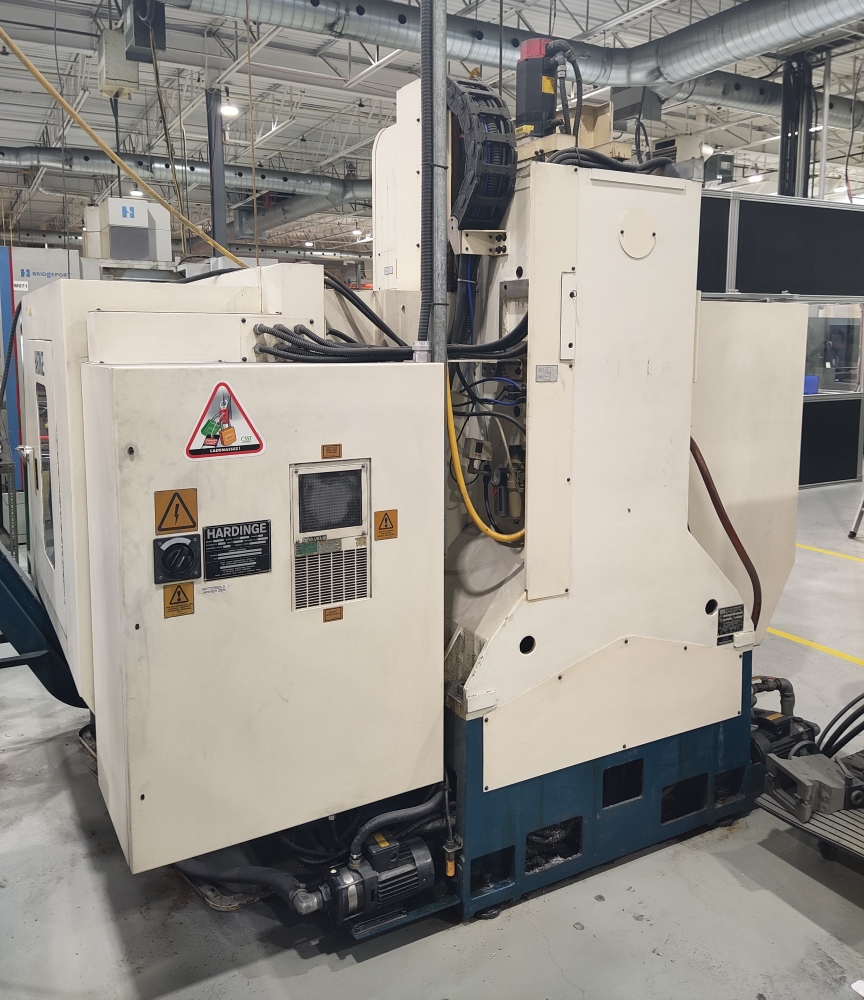

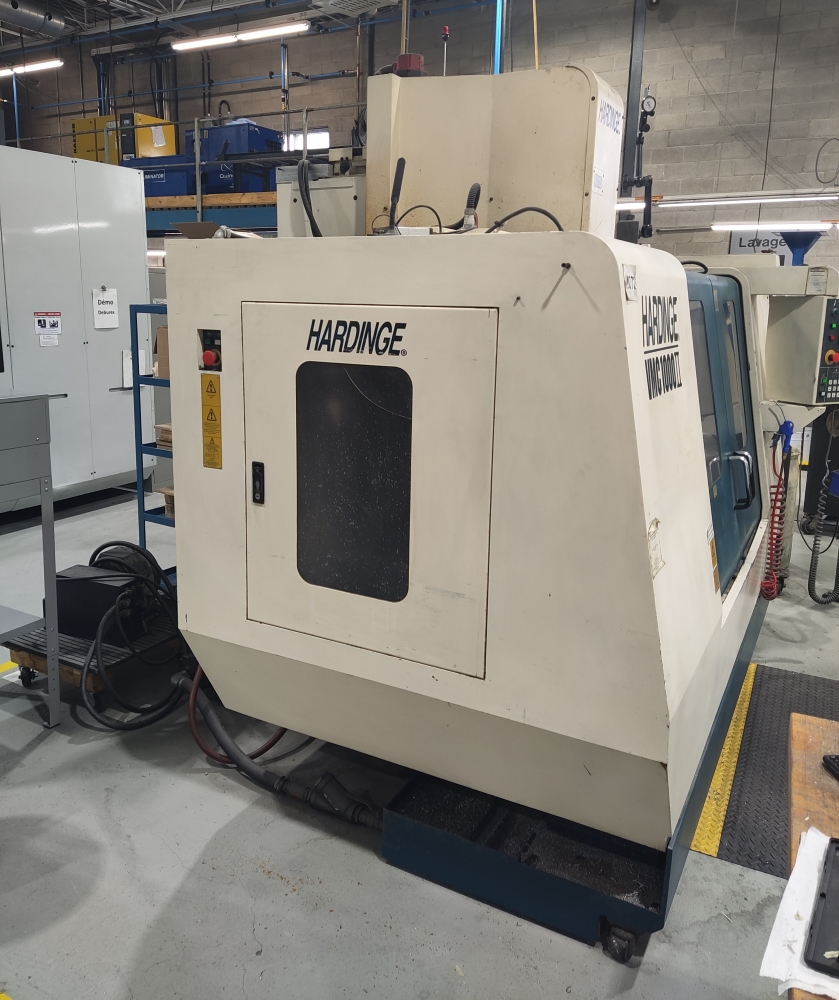

Centre d’usinage verticale Cnc Hardinge VMC-1000 II
Année 2000

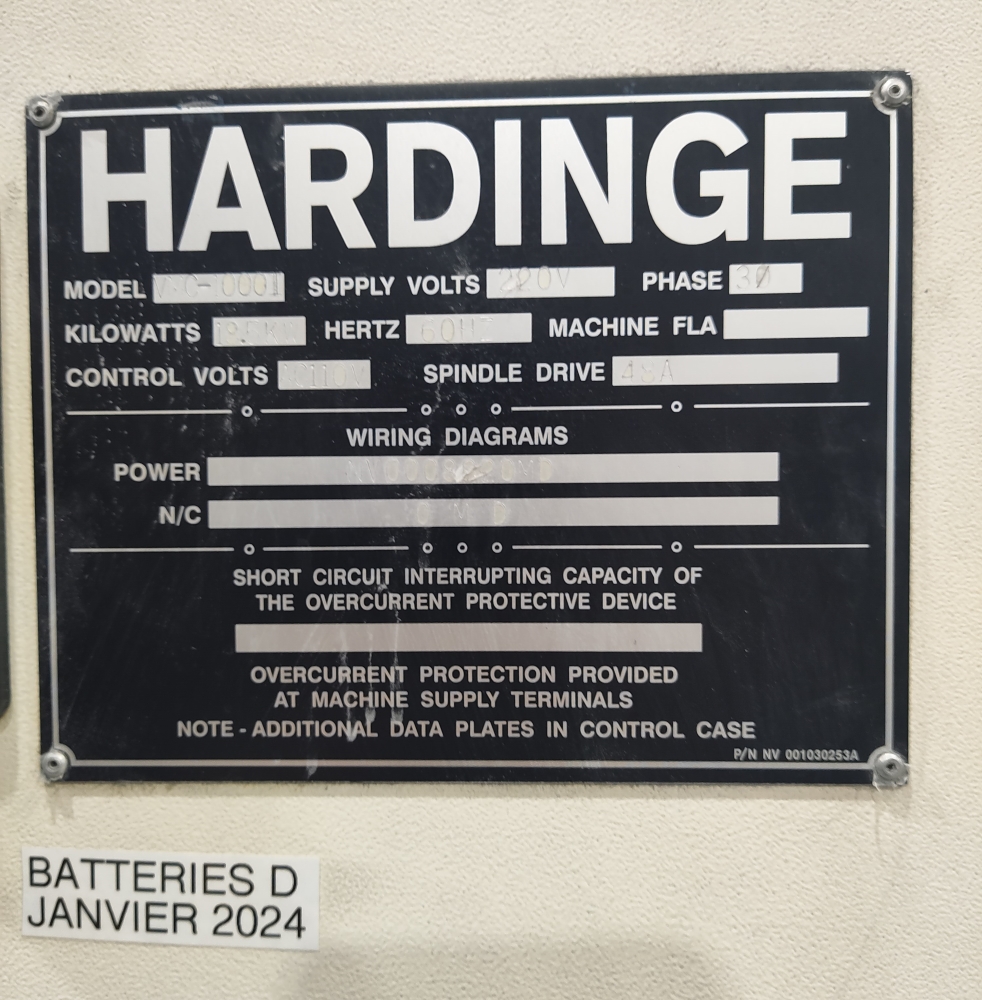

220 volts 3 phases
Équipé d’un quatrième axe et d’une poupée mobile
Made in Taiwan
SPECIFICATIONS:
X AXIS TRAVEL ………….. 40.16″
Y AXIS TRAVEL ………….. 20.08″
Z AXIS TRAVEL ………….. 20.08″
RAPID TRAVERSE XYZ ……… 1181 IPM
CUTTING FEED RATE ………. 0.1 – 472 IPM
SPINDLE TAPER ………….. BT-40
SPINDLE SPEEDS …………. 0 – 8,000 RPM
SPINDLE MOTOR ………….. 15 HP VECTOR DRIVE
TOOL CAPACITY ………….. 20 ATC
MAXIMUM TOOL DIAMETER …… 3.5″
MAXIMUM TOOL DIAMETER WITHOUT ADJACENT TOOL ..5.9″
MAXIMUM TOOL LENGTH …….. 9.84″
MAXIMUM TOOL WEIGHT …….. 13.2Lbs.
TABLE SIZE …………….. 44″ x 20″
MAXIMUM TABLE LOAD ……… 1,540 LBS
SPINDLE NOSE TO TABLE TOP .. 6.1″ – 26.1″
DIMENSIONS APPROXIMATELY 240″ x 84″ x 109″
MACHINE WEIGHT APPROX. 10,185 LBS
