Cnc Biesse Klever 1530, 5 x 10 GFT, 2011

Imprimer

UGS : 2441 Catégorie : Cnc table pleine (nesting)

Description

Description

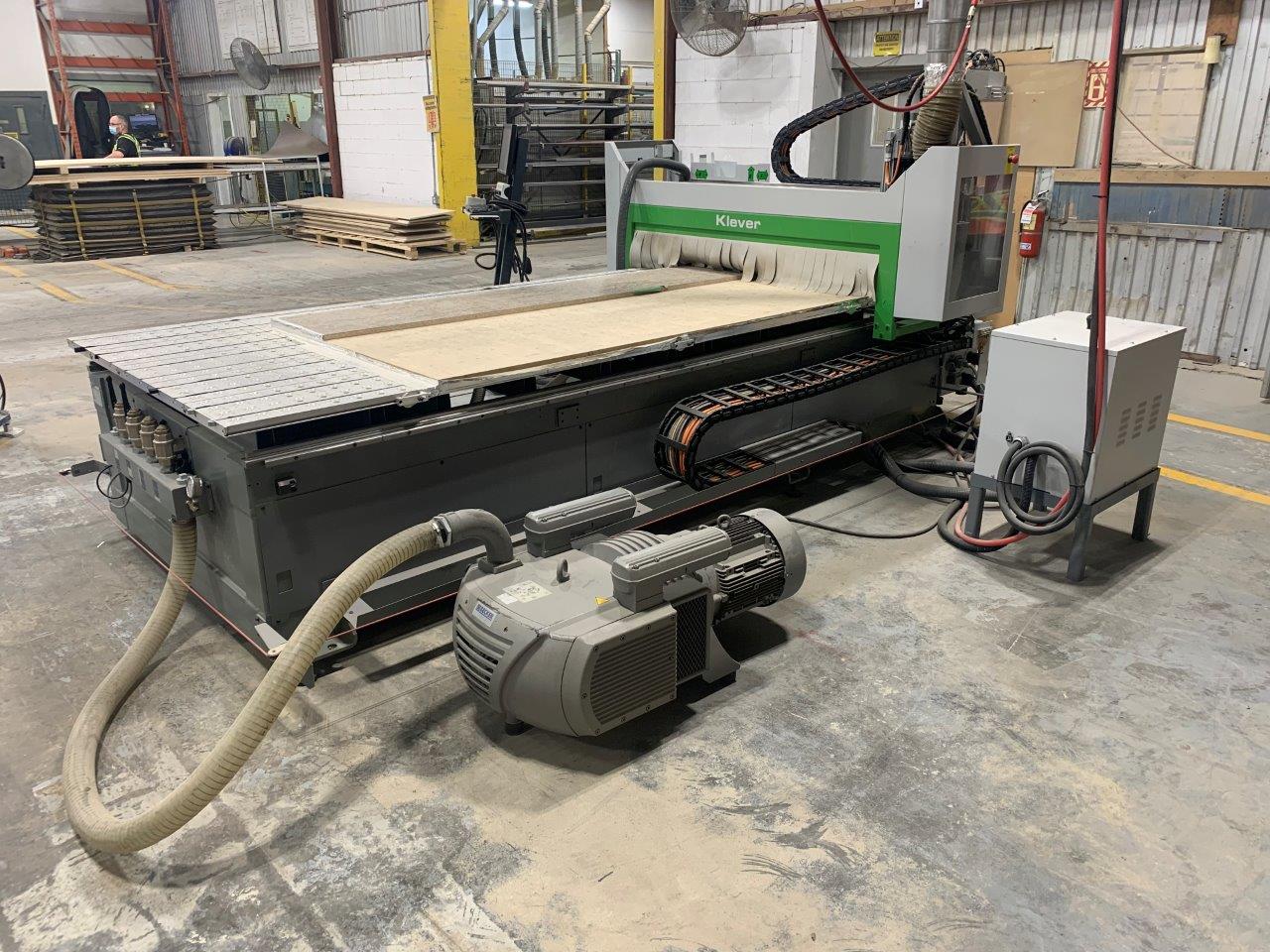

Cnc Biesse Klever 1530, 5 x 10 GFT, 2011

Année 2011

Seulement heures

Inclus pompe a vacuum Baker

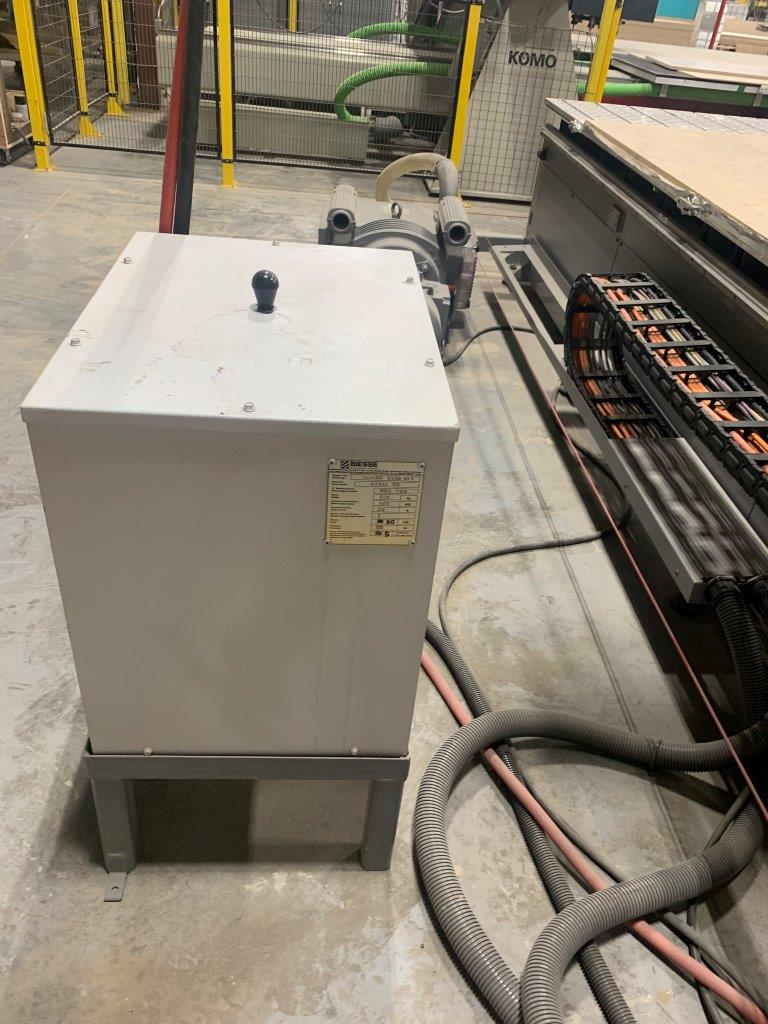

600 volts 480 ou 230 volts 3 phases avec auto transfo

SPECIFICATIONS:

Working Fields:
X = 3085 mm (121″)
Y = 1560 mm (61″)
Z = 160 mm (6.3″)

AXIS Stroke:
X = 3309 mm (130″)
Y = 1703 mm (67″)
Z = 260 mm (10.2″)

Precision Matrix Table

Multi Zone Table Feature
High Precision Linear Guide System
3 Rear Stops, 3 Front Stops, and 2 Side Stops
12HP HSD Electrospindle
Accepts HSK F63 Tool Holders
8 Position Tool Rack
Digital Presetting Device
2 Way Air Nozzle
Biesse BH 5 Boring Head:
5 Independent Vertical Spindles
250 m3h Vacuum Pump
Air Conditioner for Electric Cabinet
User Friendly Operator Control Cabinet
PC-Based Control System BH660
Computer w/19″ Color Screen
160 GB Hard Drive, Keyboard, and Mouse
