Description

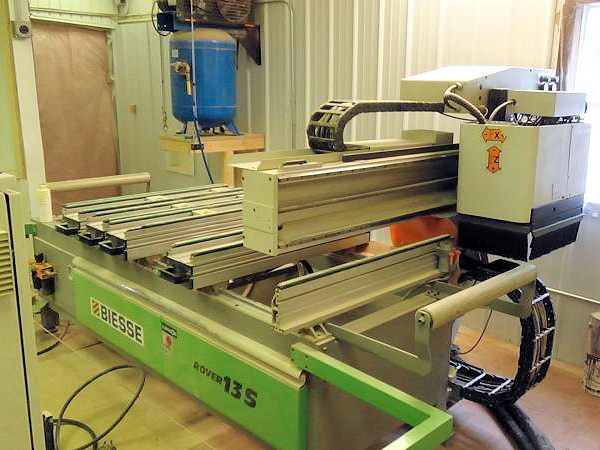

Cnc Biesse Rover 13 S
Année: 1997
Voltage: 200-600 V, 50/60 Cy, 3Ph
Capacité: axe X 1600 mm, avec capacité miroir 3200 mm.
Axe Y : 950 mm, axe Z : 100 mm. épaisseur maximal du matériel: 65 mm.
| • | Specifications: Working Field « X » Axis 63″ (1,600 mm) with mirror-image stop to process 126″ (3,200 mm) panels, « Y » axis 35.4 (898 mm) when boring & 37.4″ (950 mm) when routing; « Z » axis stroke 3.9″ (100 mm), max material thickness is 2.55″ (65 mm). |
| • | Positioning Speed: « X » Axis 246 FPM (75 MPM), « Y » axis 147 FPM (45 MPM), « Z » axis 49 FPM (15 MPM); « X » Axis moves on high precision prismatic guides and ground helical rack, « Y » & « Z » axis via hardened ground ball screw; AC Servo drive on « X », « Y » & « Z » axis. |
| • | Work area: (4) Manually positioned panel supports and (2) fixed side support rollers, (2) vacuum pods each support; (4) Pop up pneumatic backstops and (2) pneumatic side stops create (1) working zone, stops raised & lowered automatically by start/stop of machining cycle. |
| • | Boring unit: 2.3 HP – 4,000 RPM motor; (10) independent vertical spindles with (5) in « X » axis & (5) in « Y » axis; (6) Horizontal spindles with (2+2) in « X » axis & (1+1) in « Y » axis. (1) 5,000 RPM « X » axis grooving saw with 120 mm dia. blade. |
| • | Machining unit: (1) 5 HP (3.7 kW) Push Button « Quick-Change » Electro spindle router with ISO 30 adaptor, variable speed from 1,000 – 24,000 RPM, inverter driven with programmable RH/LH rotation. |

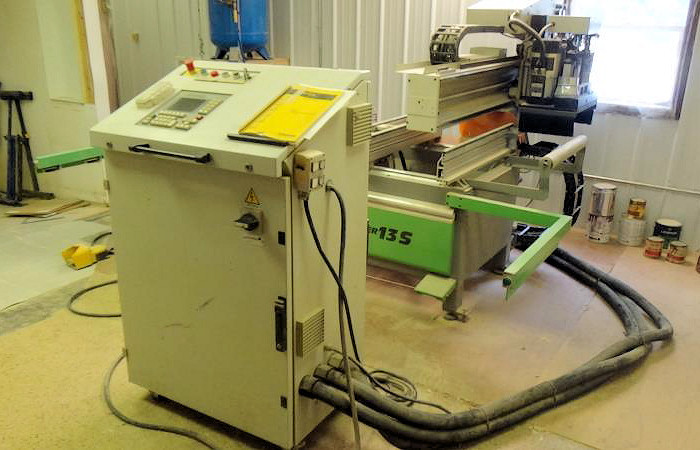

| • | Operator & Machine Control: Separate control console with CNi « NC 400 PLUS » operating system housed in air conditioned cabinet; 8″ LCD monitor, displays programming graphics, numerical and function keyboard. 512 KB RAM memory, (1) 1.44MB floppy disk drive, RS-422 serial port for PC and RS-425 port for inverter connection, E-prom for machine data & subroutines, runs production programs while programming and editing. |

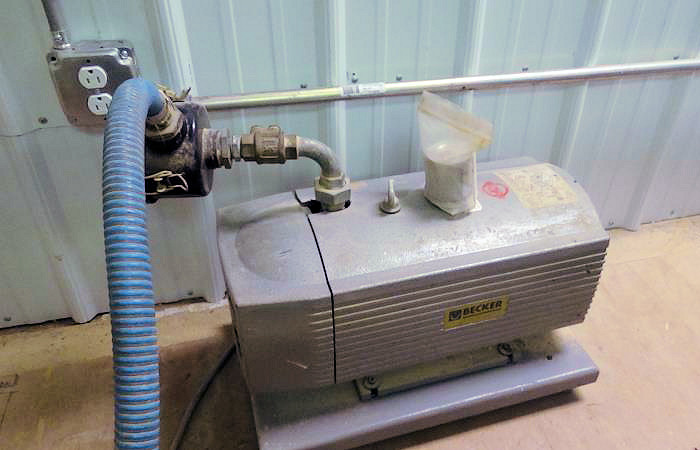

| • | Complete with: Auto-Transformer for voltages between 200 – 600 volt; (1) 60 m³/Hr vacuum pump, triple photocell safety barrier; includes documents, user’s & maintenance manuals as pictured. |

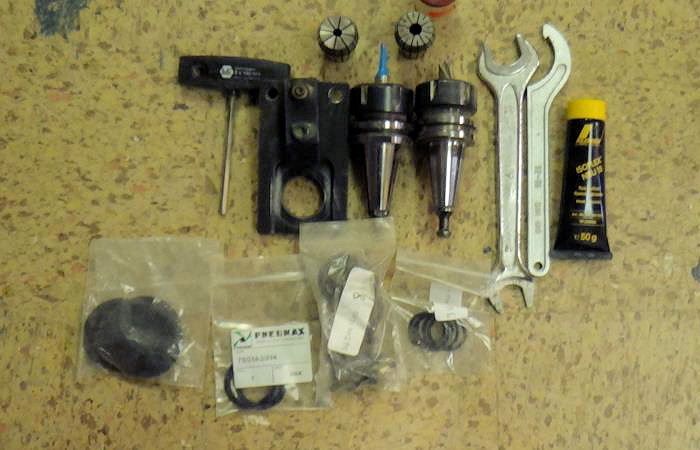

| • | Options Include: Tooling, tools & some spare parts as pictured |
MACHINE AUX USA
PRIX USD
1556
