Description

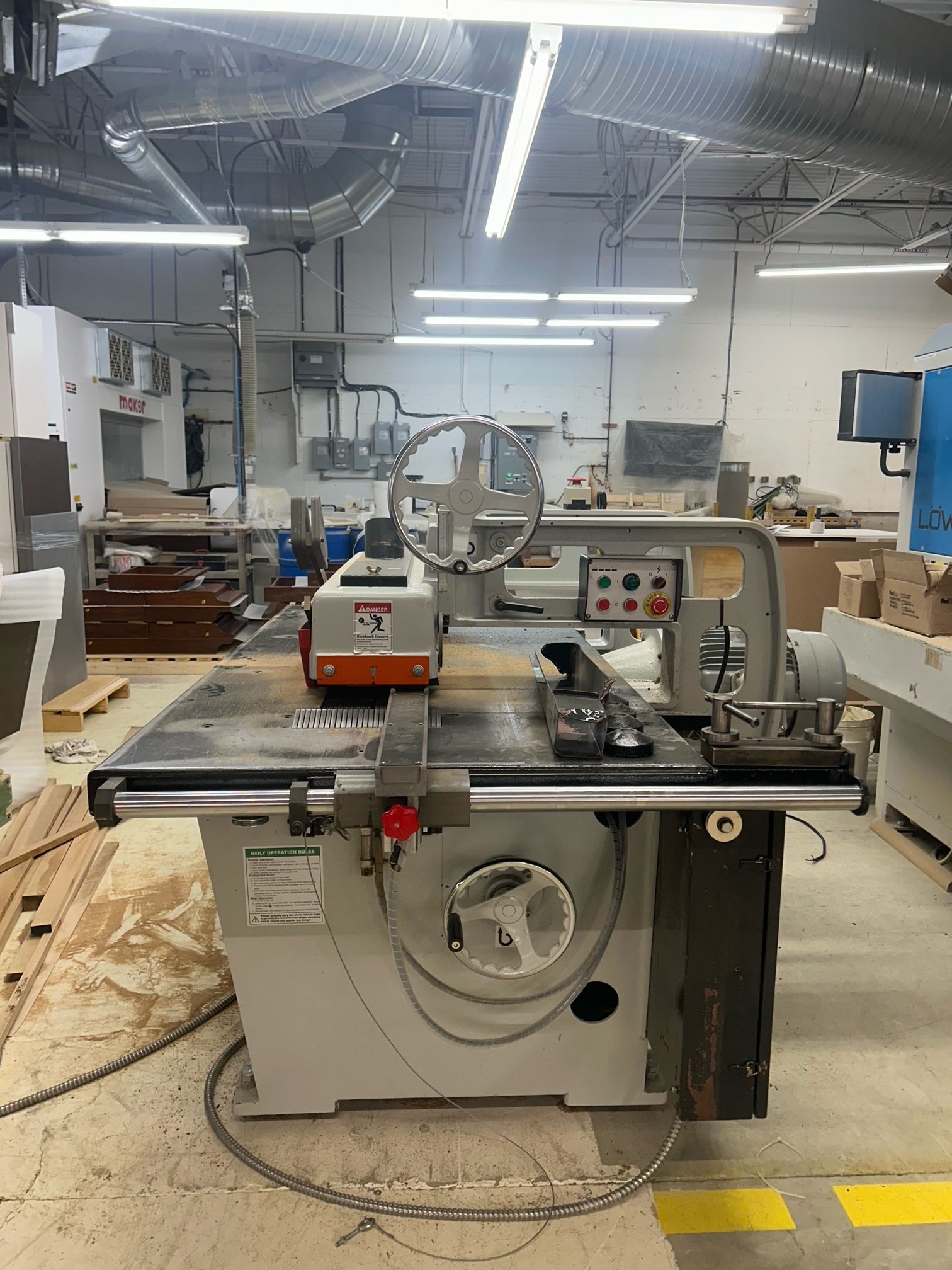

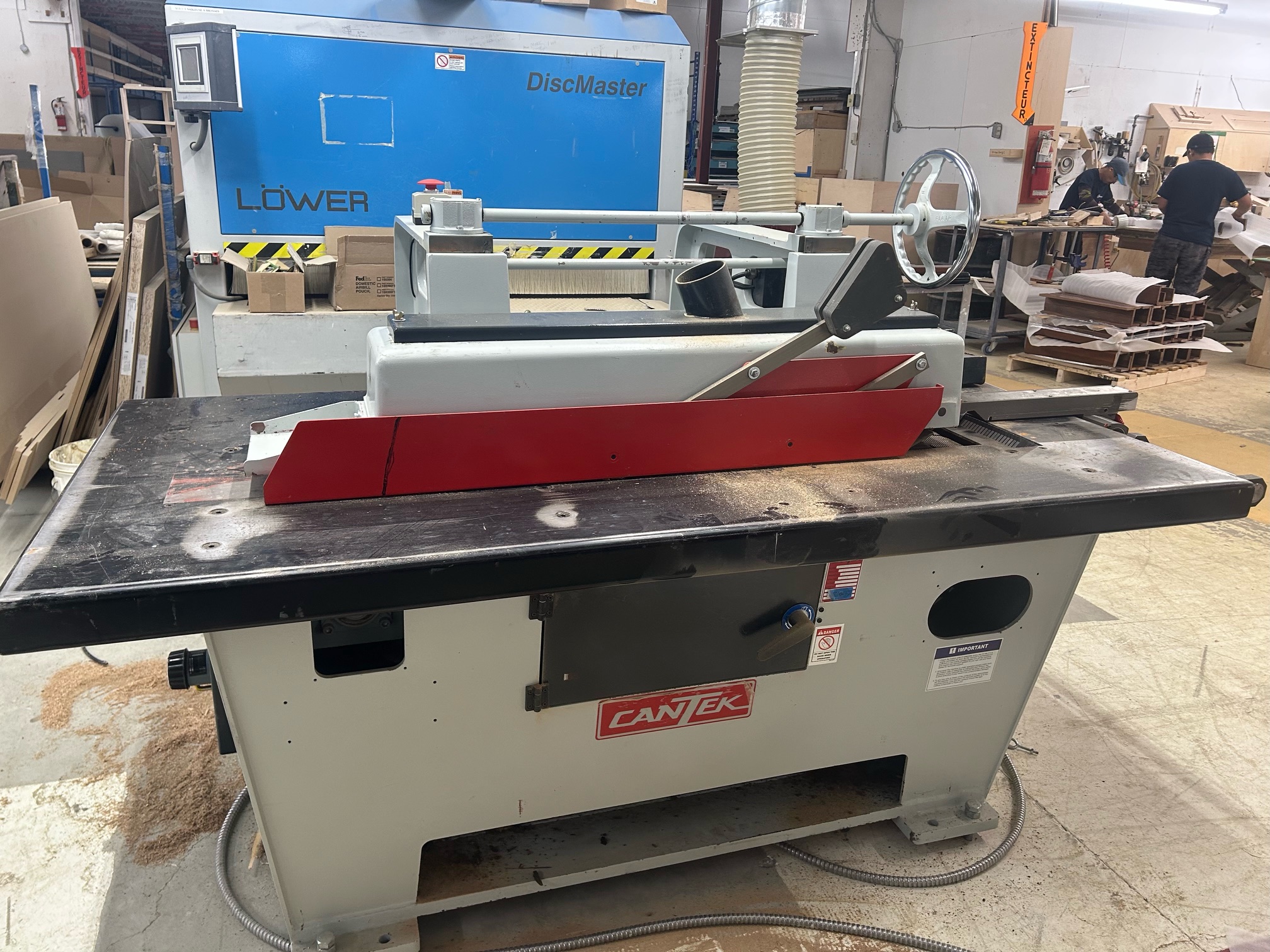

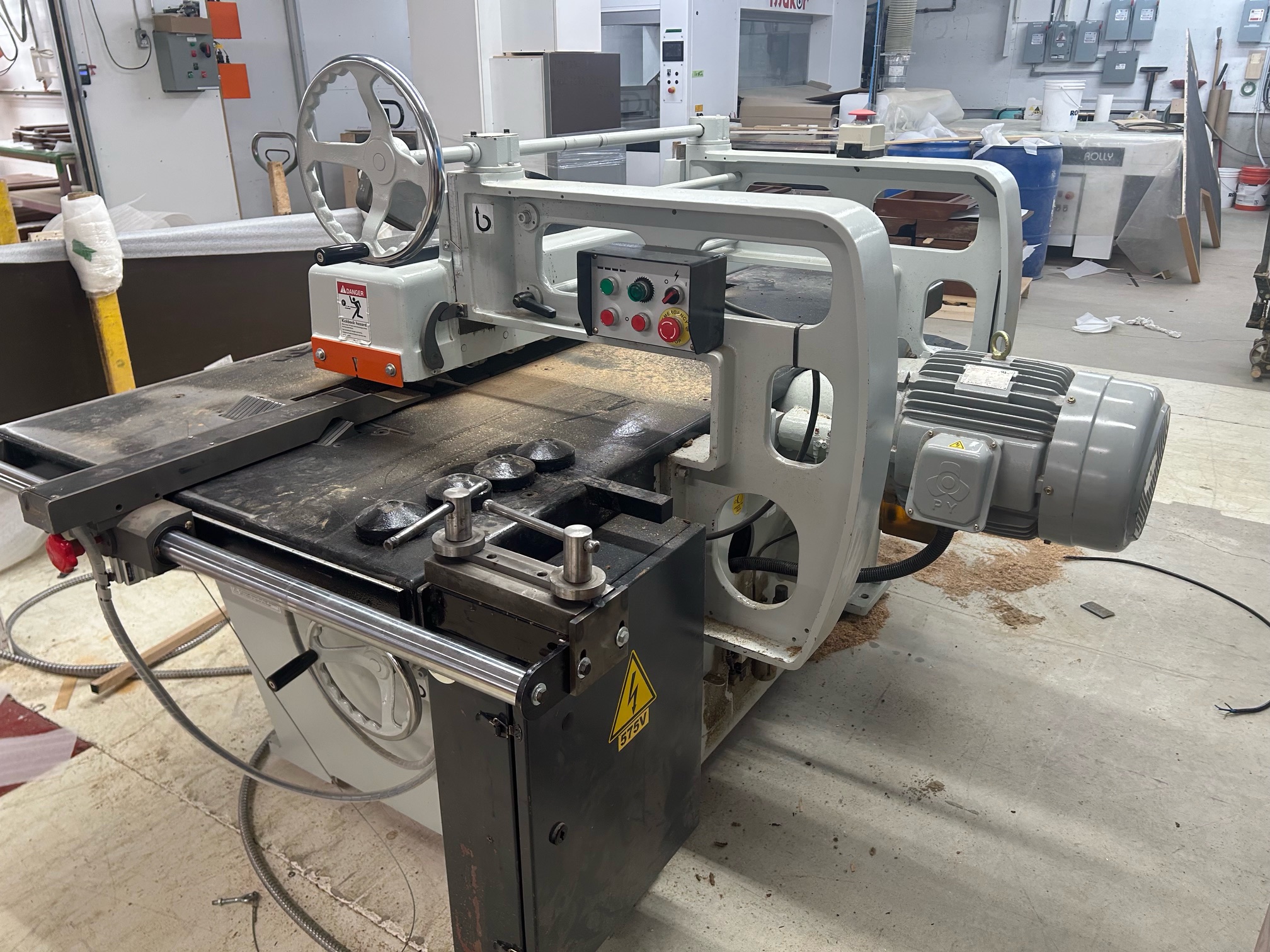

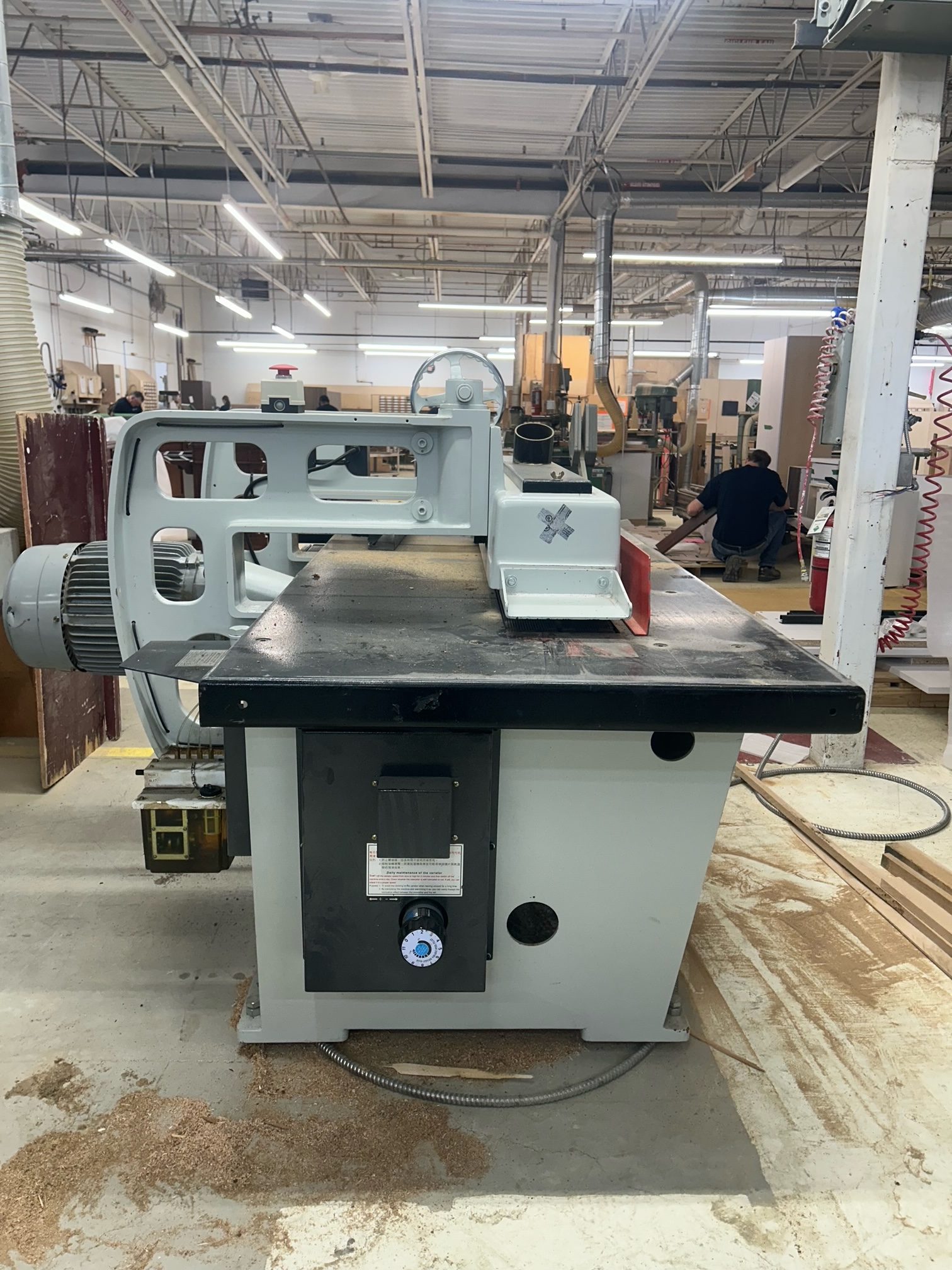

Déligneuse Cantek
Modèle: R18
Année 2021
Moteur 20 HP
575 volts
Specifications
- Minimum Length: 6″ (150mm)
- Maximum Sawblade Diameter: 18″ (455mm)
- Sawblade Included with Machine: 14″ (355mm)
- Maximum Cutting Thickness
- 14” Blade: 3” (75mm)
- 16” Blade: 4” (100mm)
- 18” Blade: 5” (125mm)
- Sawblade Bore: 2″ (50.8mm)
- Main Motor: 20 HP
- Feed Motor: 3 HP
- Feed Speed (Variable): 42-164 FPM (13-50 m/min)
- Saw Arbor Brake System: Standard
- Number of Pressure Rolls: 8 rolls
- Distance from Saw Blade to Column: 26″ (660mm)
- Table Dimensions: 78 ¾” x 40″ (2000 x 1015mm)
- Table Height from Floor: 33.46″ (850mm)
- Table Width
- To Left of Blade: 16.73″ (425mm)
- To Right of Blade: 23.23″ (590mm)
- Dust Ports
- Top: 4” (100mm)
- Bottom: 6” (150mm)
- CFM Required: 1400 CFM
- Machine Dimensions (L x W x H): 91″ x 66″ x 53″ (2299 x 1678 x 1343mm)
- Machine Weight: 3,750 lbs. (1700 kgs)
- Shipping Dimensions (L x W x H): 89″ x 66″ x 65″ (2240 x 1670 x 1650mm)
- Shipping Weight: 3,970 lbs. (1800 kgs)
#3606
