Description
Dépoussiéreur Belfab RPJ26 15000 cfm Pulsion
Année 1995

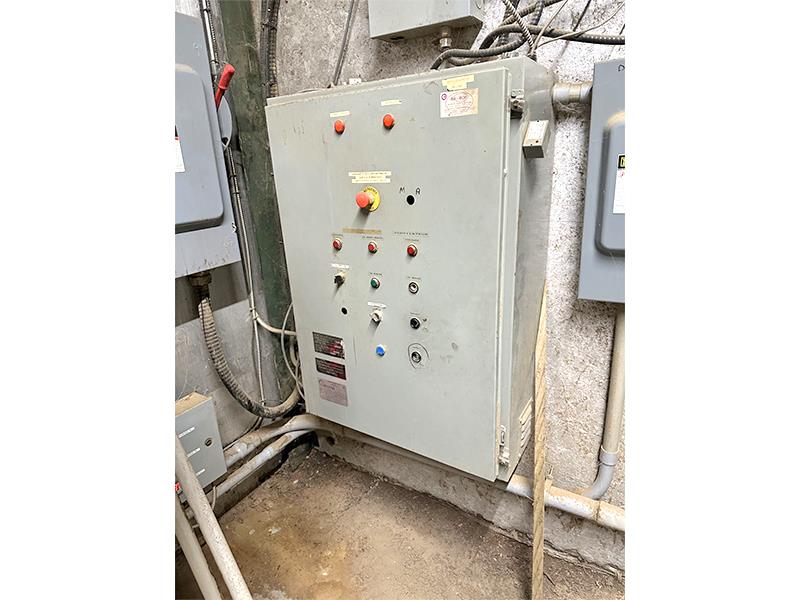

Note importante :Le moteur (framePC40ST) du ventilateur 75 Hp est non-inclus, le panneau de controle est la mais il n’y a pas de démarreur, pas de ventilateur de chargement. Non incluse tuyauterie.
Inclus valve rotative.
Démontage et chargement inclus par le propriétaire.
Environ 120 poches de filtration de 125 pouces de longueur x 6 pouces de diamètres.
Inclus 1 lot de poches supplémentaire.
BELFAB RPJ26-121 Pulse Jet Dust Collector with Rotary Air Lock and Transfer Fan.
Specifications:
| • | 15,285 CFM approx. baghouse dust collector with (121) filter bags at 10-feet long with metal cages. Total of 1,884 sq. ft of cloth area. |
| • | Filter Cleaning: Reverse Pulse Jet (RPJ) via plant compressed air that is sequenced by diaphragm valves/solenoids/manifold thru to a Venturi that injects a burst of air pressure to dislodge the dust build up on the outside of filter bags. This is a continuous process during the operation of the dust collector. (no shut down is needed). |
| • | Main Fan: 75 HP side-mounted blower motor. with approx 26″ dia. inlet. Rated at approx 15,000 CFM @ 15″ SP. (NON-INCLUS) |
| • | Comes with: |
| • | |
| • | Housing is about 8′-5″ square by about 23′ high overall. Weight with structure is about 8,600 Lbs. Note: Round cone section with storage capacity of about 246 cu ft may not be included. in above height and weight |
#3583
