Description

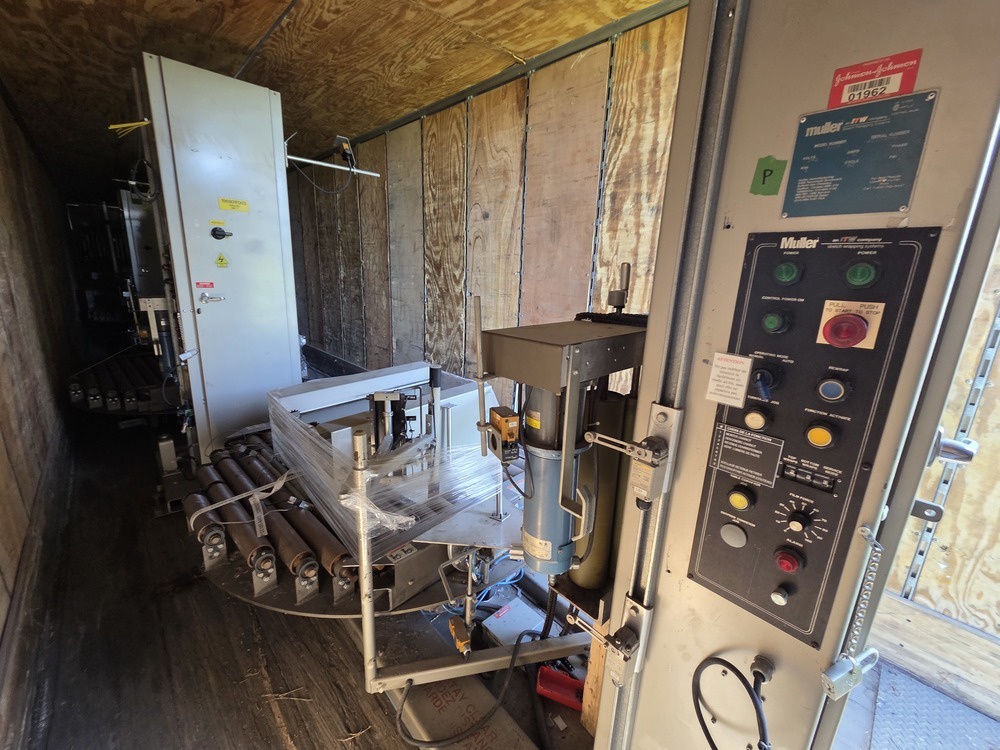

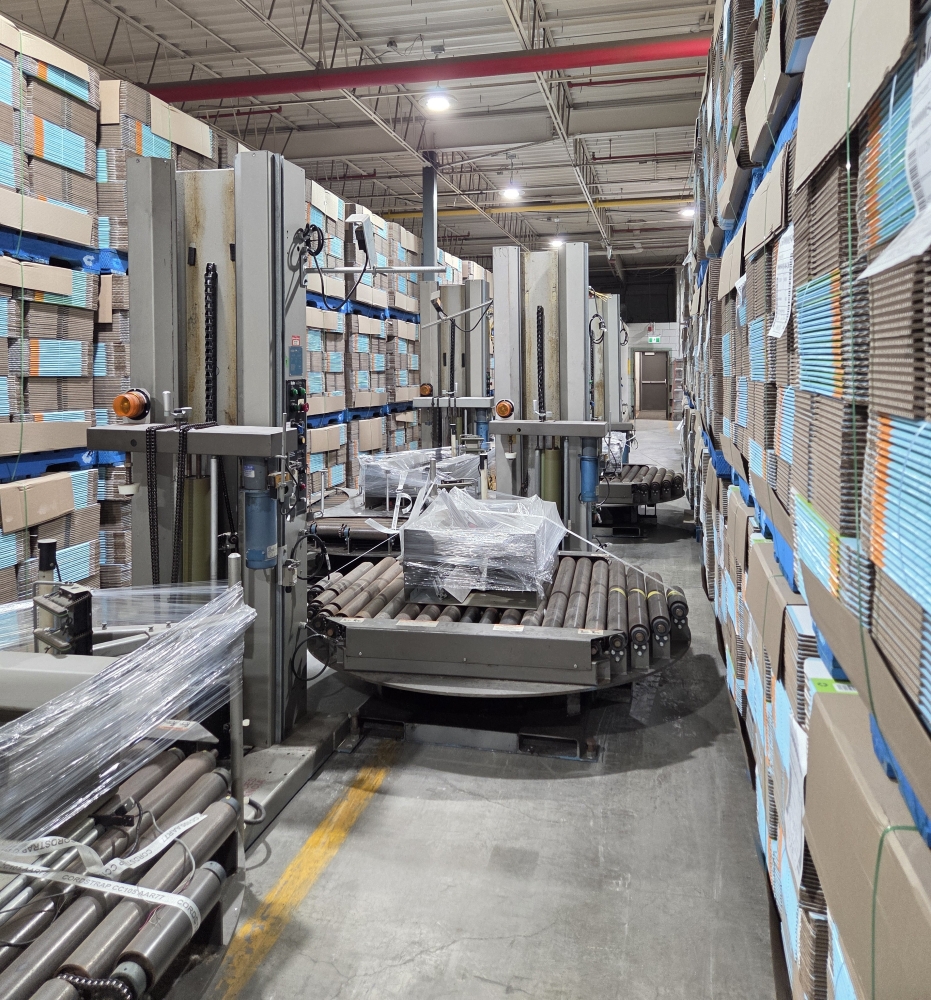

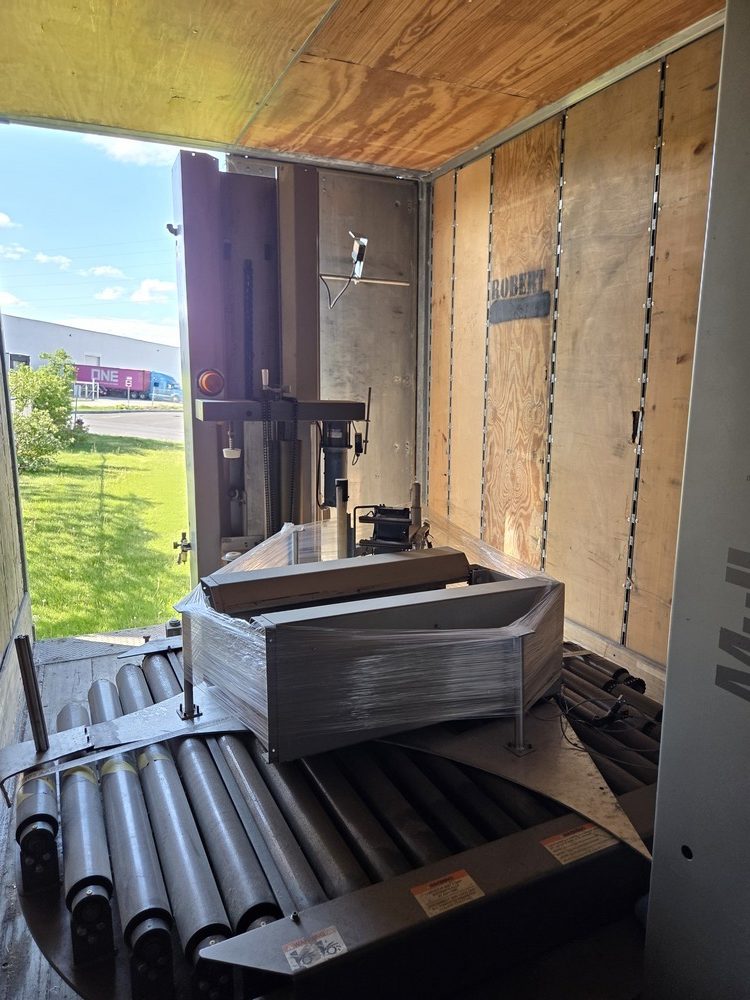

Emballeuse a palette Muller avec convoyeur

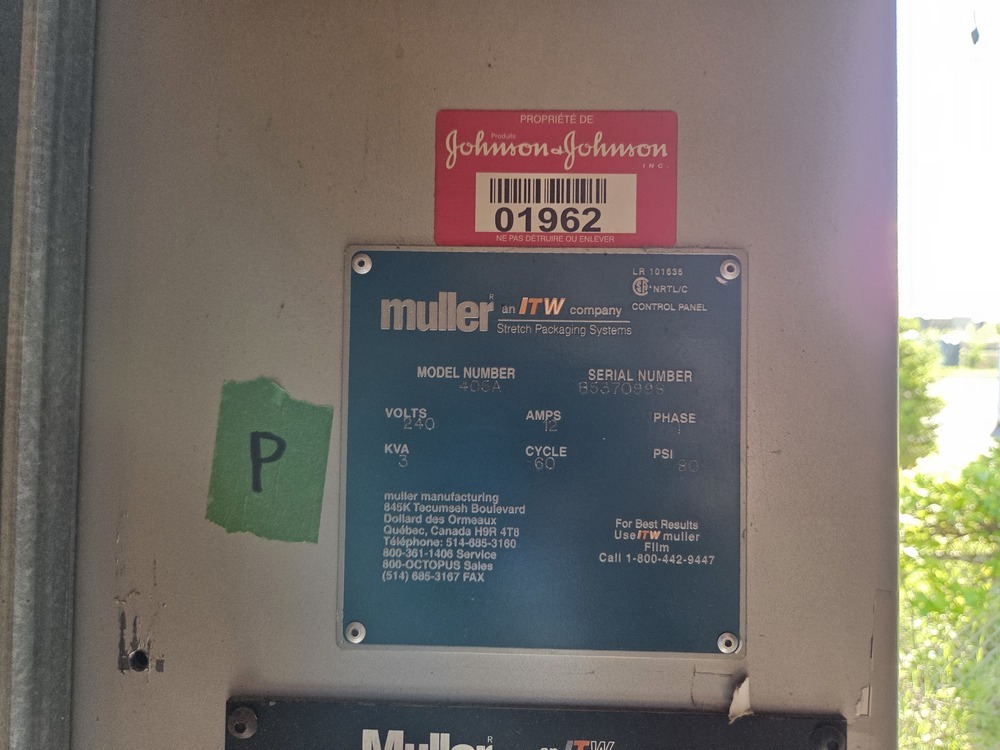

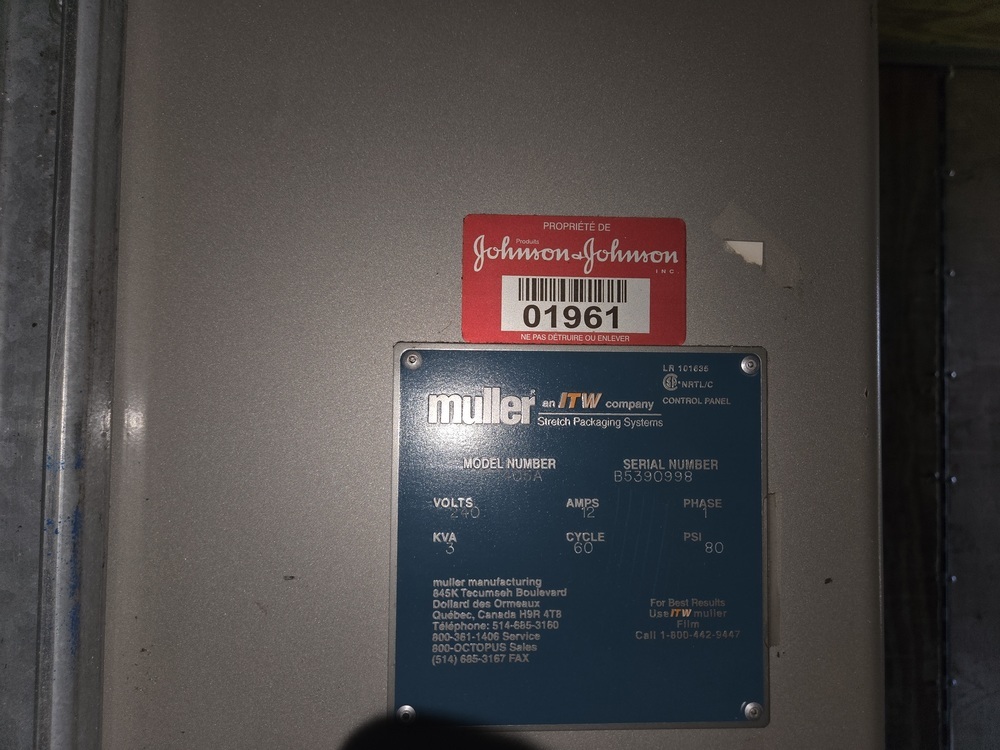

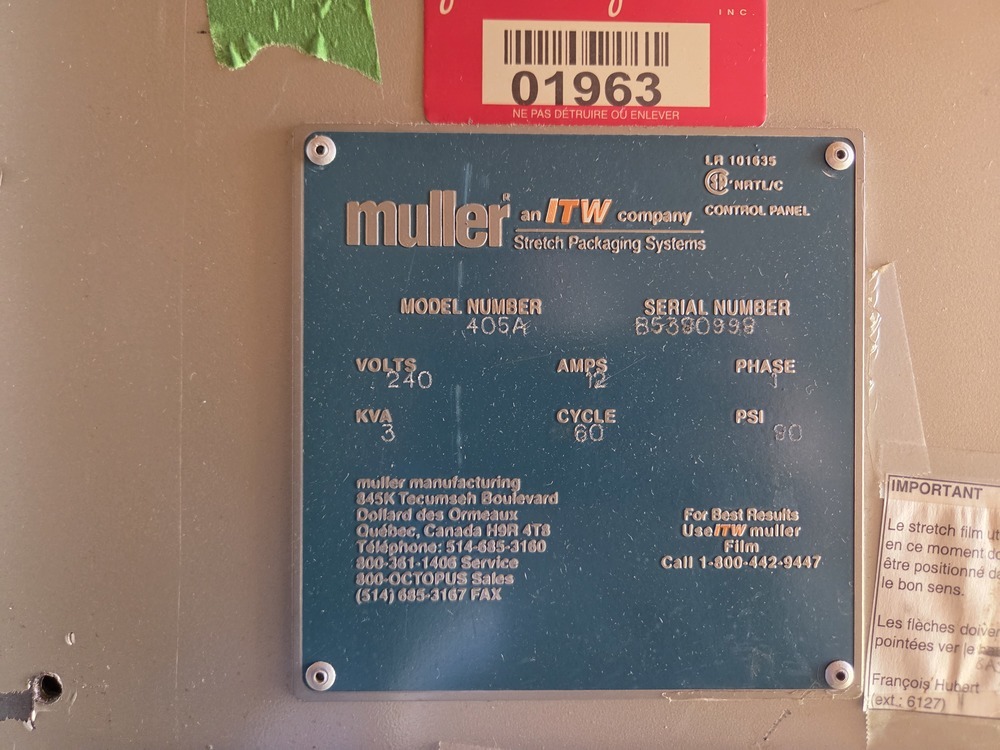

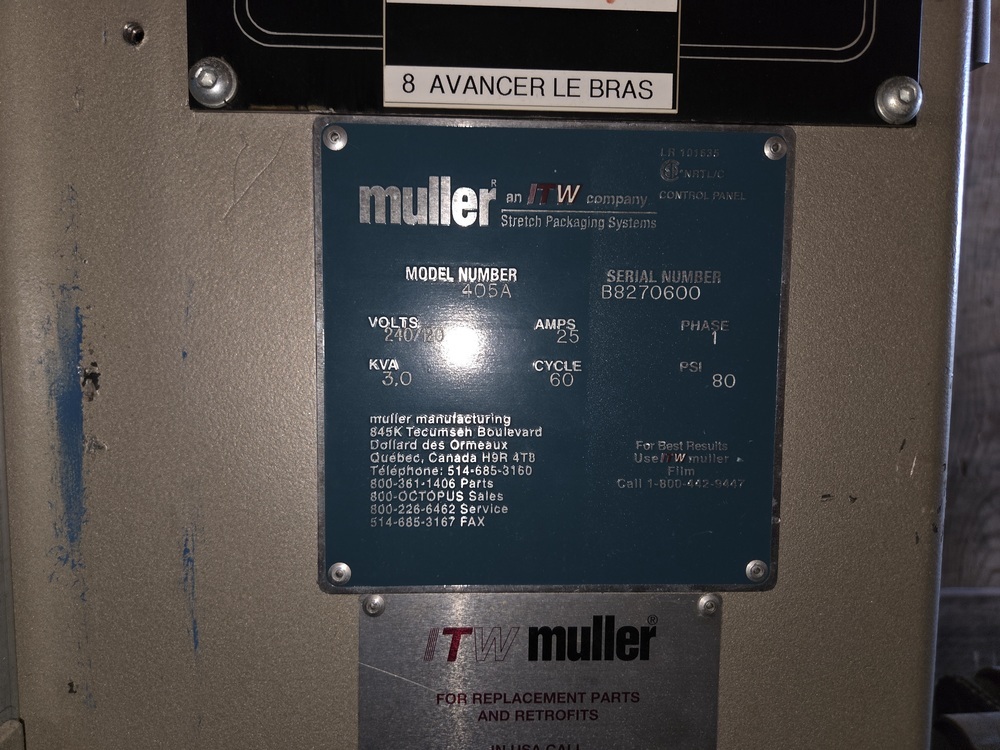

Modèle 405A
240 volts 1 phase
4 de disponibles.
Performance
Loads per hour 40 to 50+
Rotation speed 16 RPM (Optional 15 to 18 rpm)
Maximum load size 54″L x 50″W
Maximum load height 80″ (Optional Extended heights)

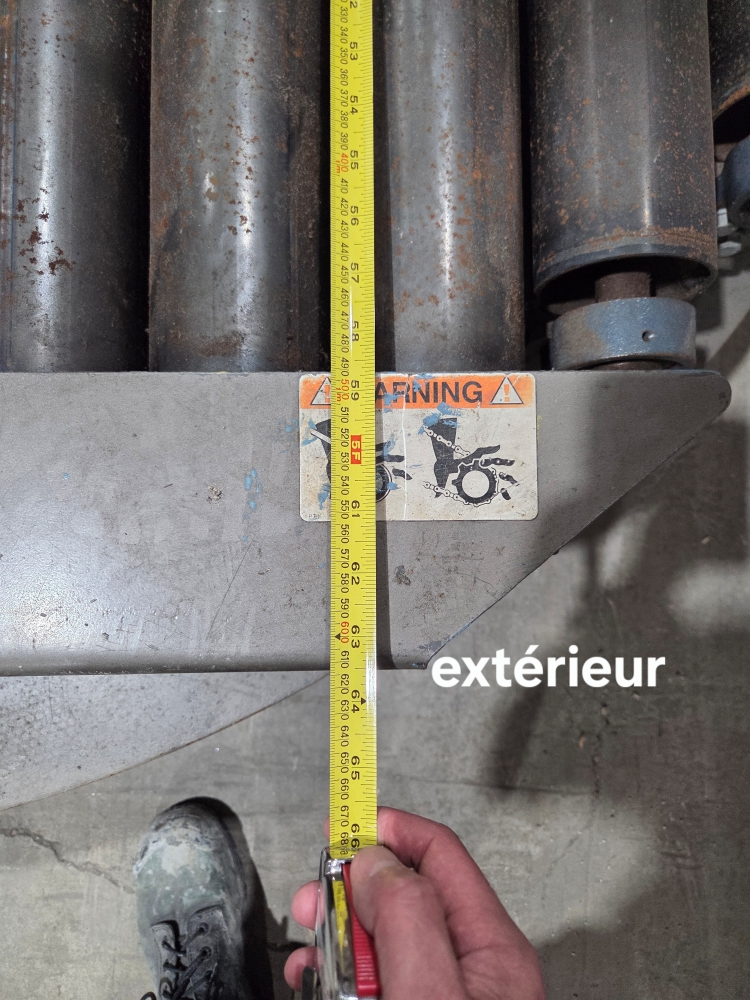

Pass height 20” Top of rollers to floor
Maximum load diagonal 72” (Optional Extended diagonals)
Standard load weight 4,000 lbs. (Optional.Up to 6,000 lbs.)
SG2000 Film Delivery Carriage
Film size 20″ (Optional 30”)
Prestretch type Power assisted (Strain gauge)
Prestretch level 200% standard (Opt. 50% – 300%)
Force to load Strain gauge Analog Feed back
Construction 6061 machine aluminum
Film Tail Sealing
Cut & Seal Arm Pneumatically driven cycle
Cutting Timed Impulse cut wires
Sealing Timed Impulse seal wire
Construction
Carriage Lift System
Lift type Dual #40 chain ACLA Roller guides
Drive motor 1/2 HP 90 VDC TENV
Drive type VDC/SCR drive
Drive control Variable speed /dynamic braking
Turntable
Diameter 76″ Diameter – ½” Steel plate

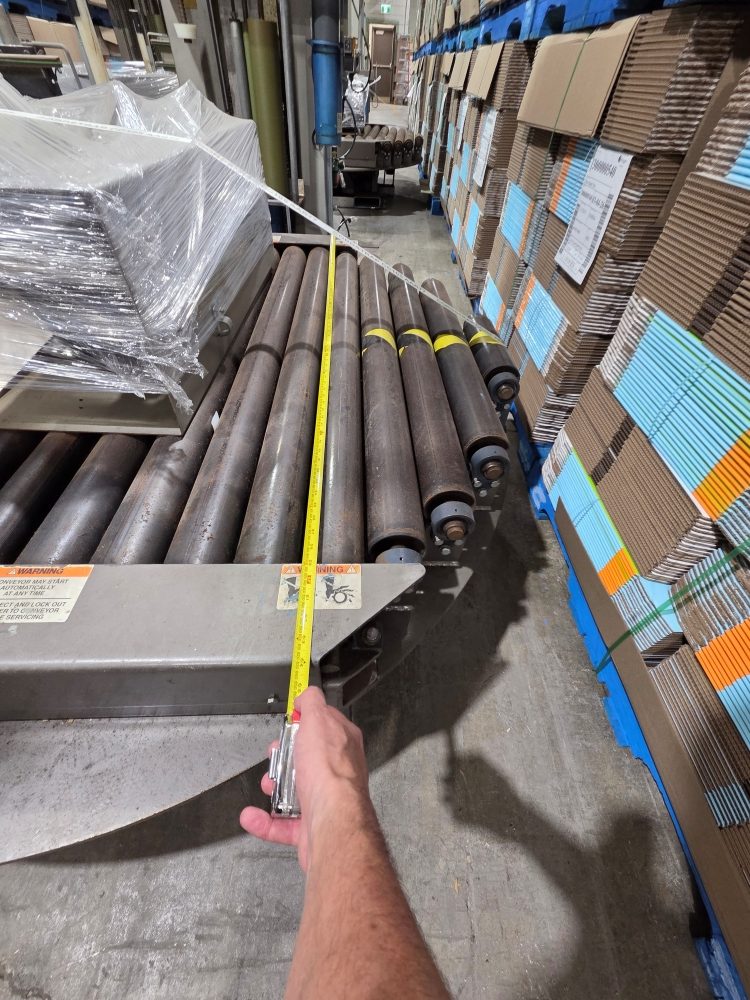

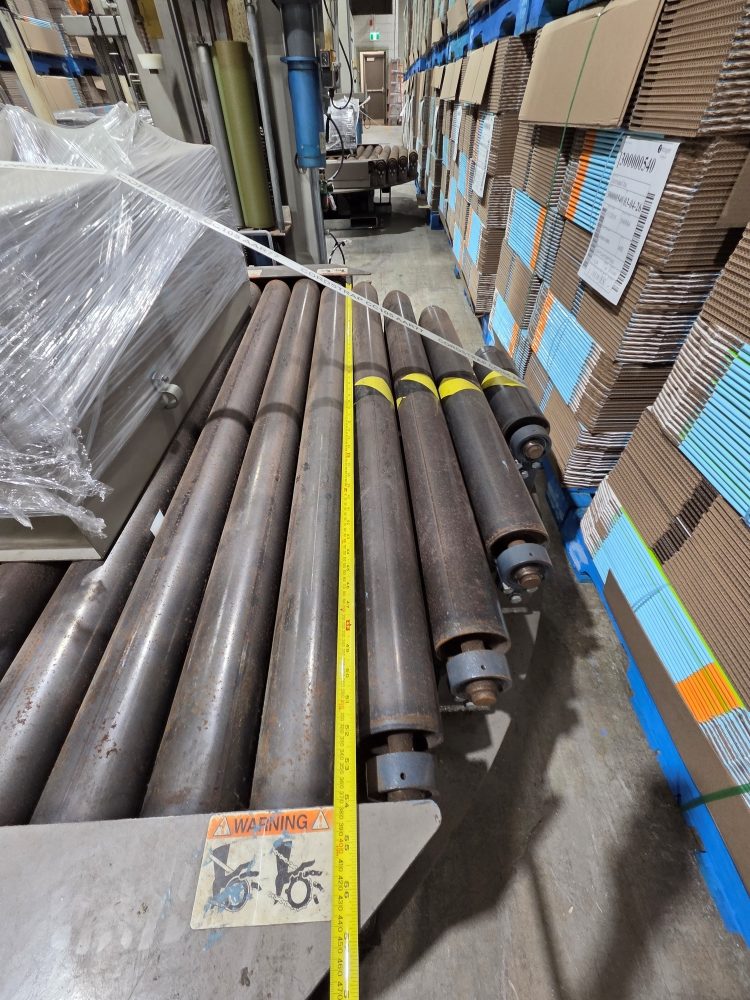

Turntable Conveyor

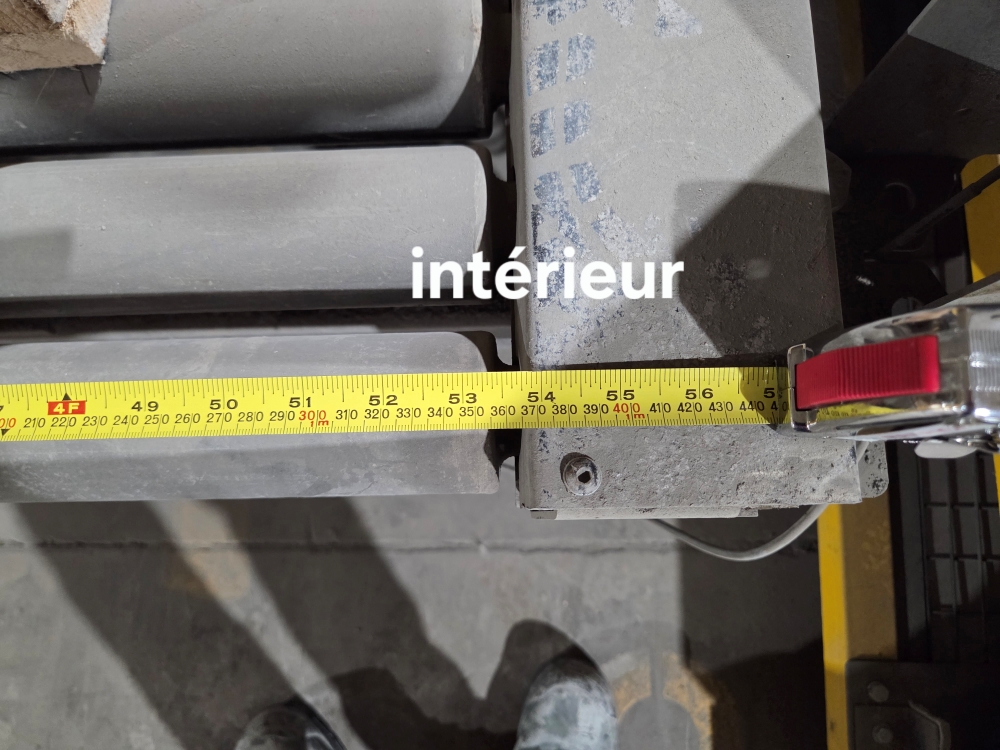

Rollers 3 ½”Ø @ 3 ¾” Centers 11ga.
Drive motor 1/2 HP 90 VDC TENV
Drive type VDC/SCR drive
Drive control Variable speed / reversing
Support Pillow block bearings
Turntable Rotation Drive
Drive motor 1 HP 230 VAC TEFC
Sew Eurodrive Gear Motor with
electromechanical brake
Drive type Mitsubishi VFD
Drive control Variable speed /dynamic braking
Support 33” Ring gear with pinion gear
Frame construction
Portability Forklift from either end
Construction Formed & structural Steel frame
Shipping Weight 3,150 lb. (approx.)
Electrical Requirements
Voltage 240 VAC, 1Ø, 30 amp, 60 Hz

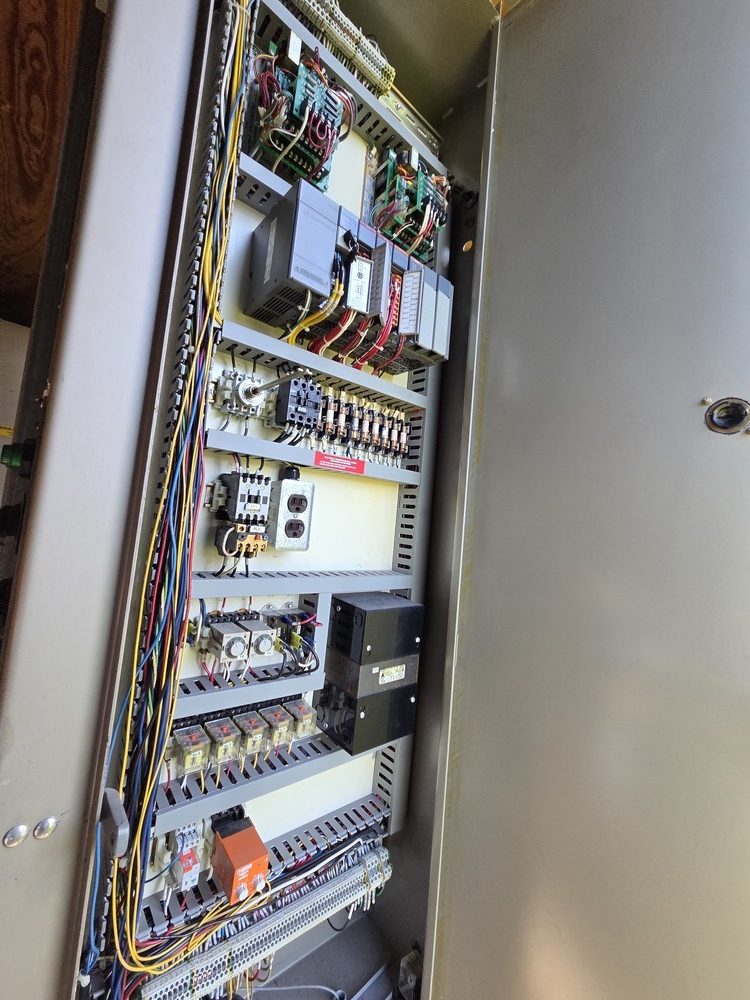

Controller

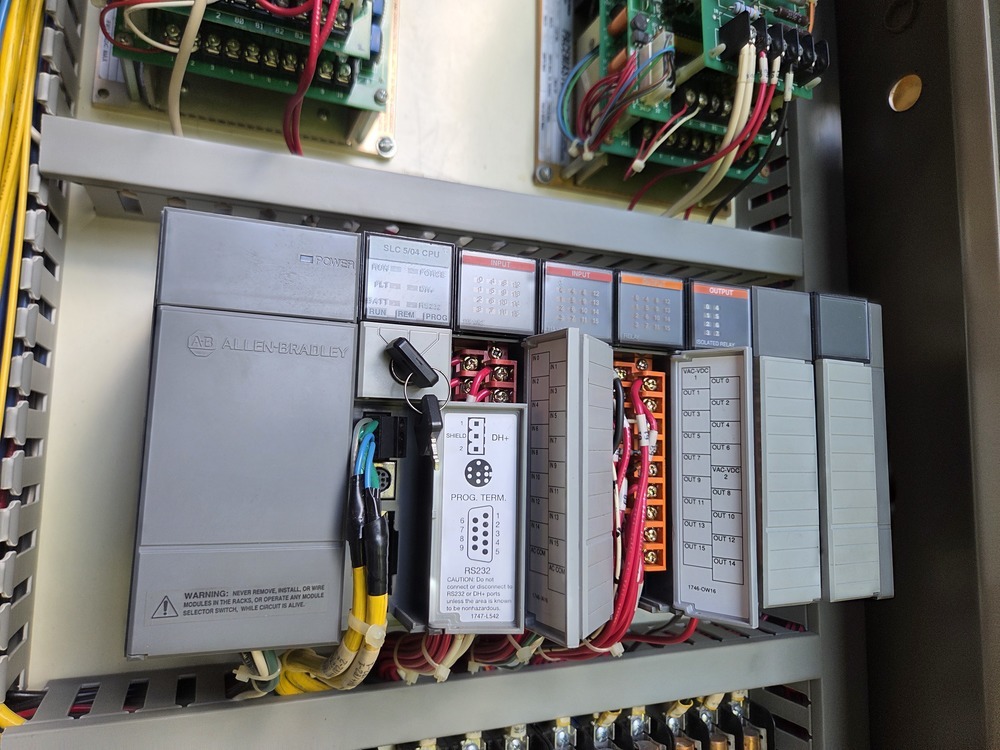

Type Allen Bradley MicroLogix 1200 PLC

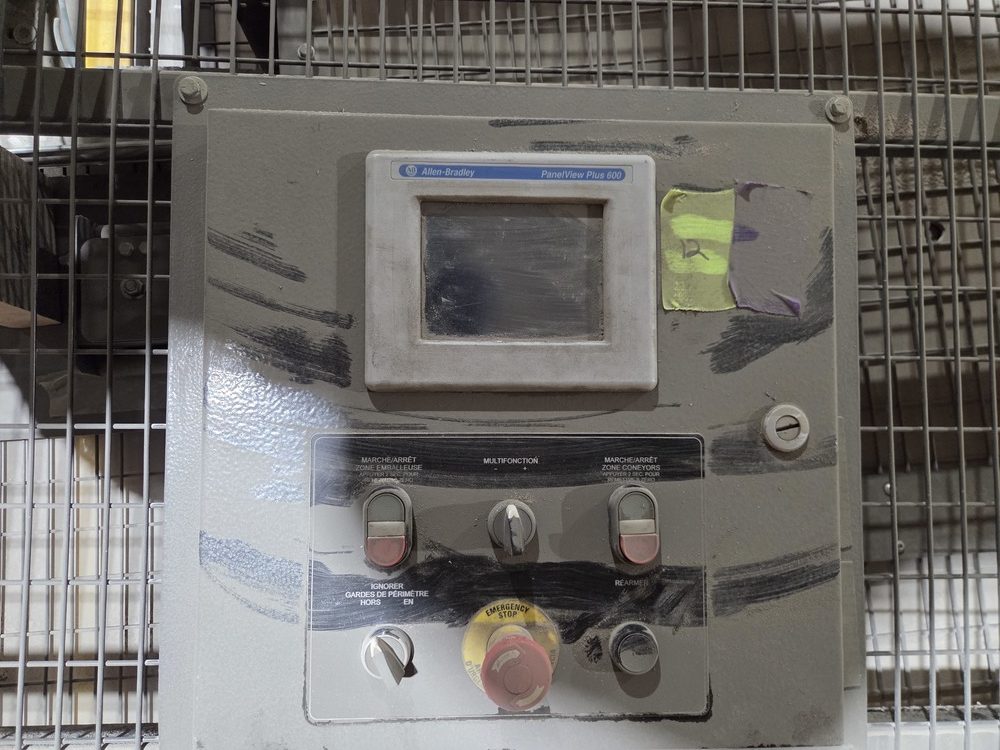

Operator Interface Allen Bradley Micro 300 Panelview

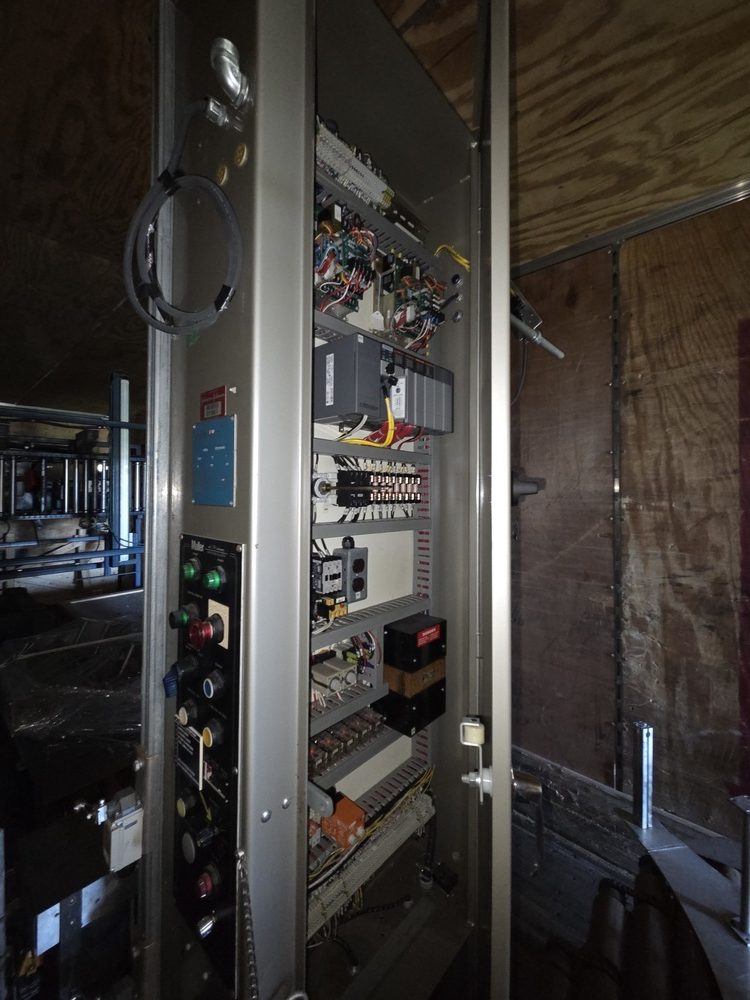

Control box Located in machine tower
~2’ x 4’ NEMA 12 dust tight
Pushbuttons NEMA 4 industrial grade
#3769
