Description

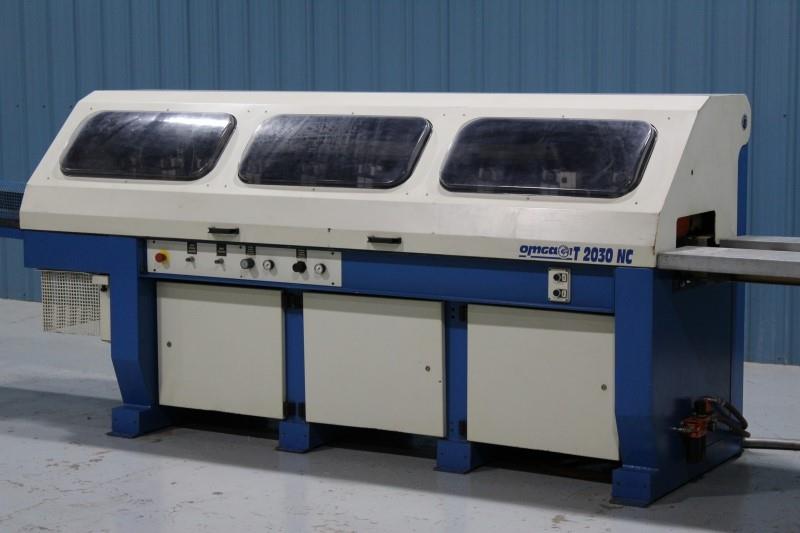

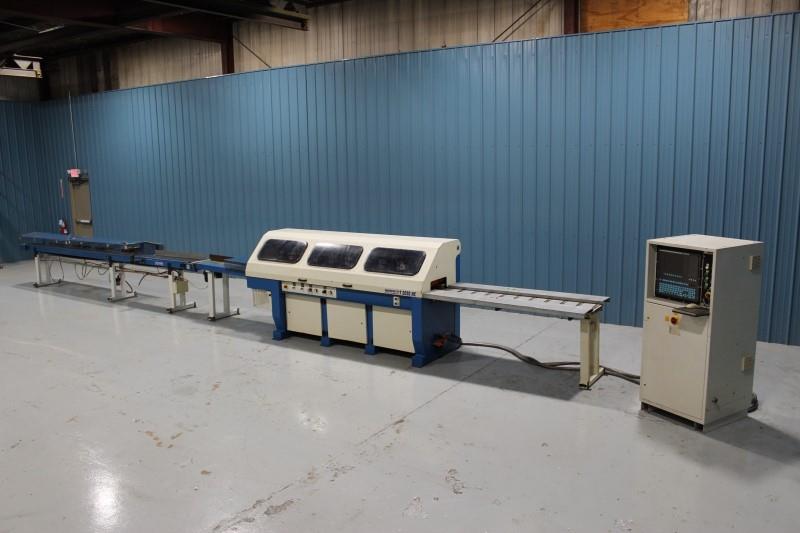

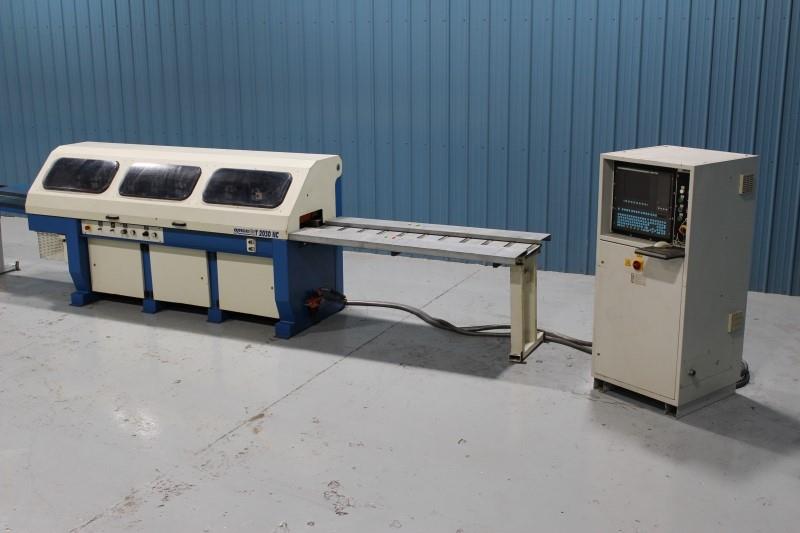

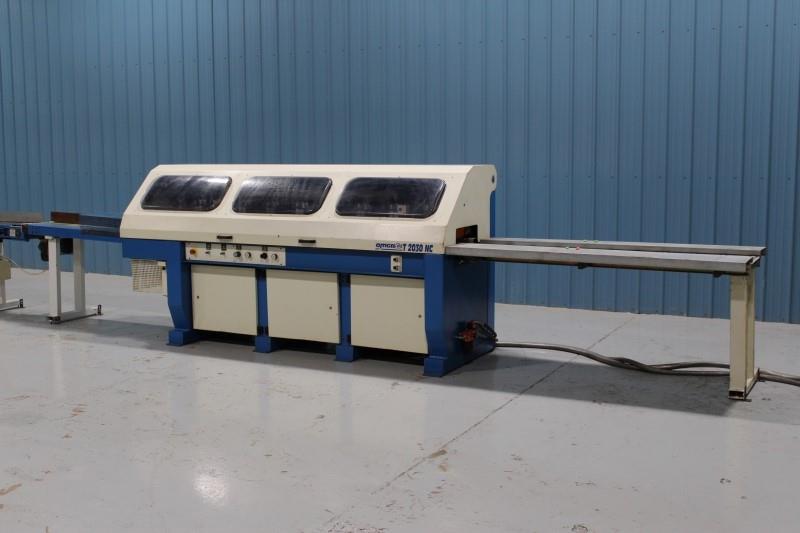

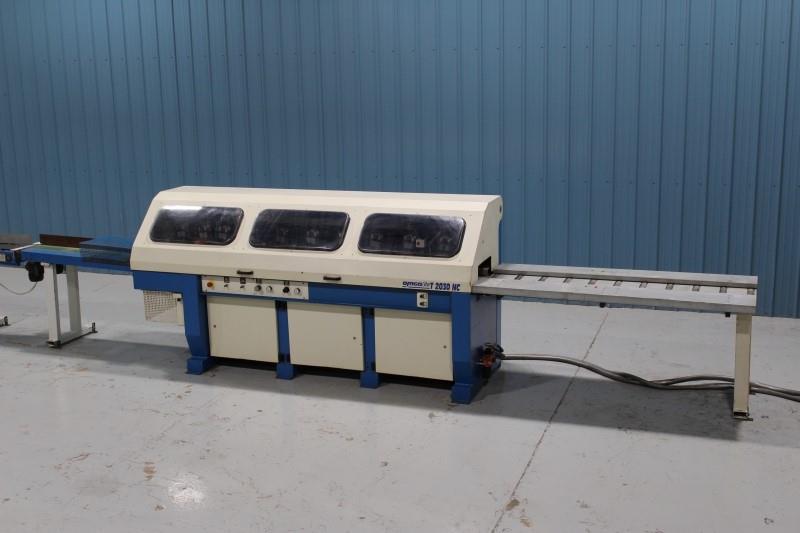

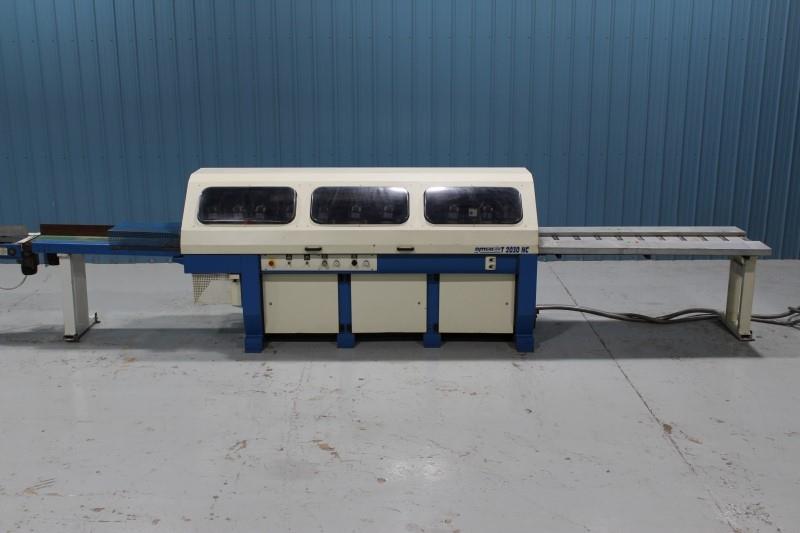

Optimiseur Omga T 2030NC
Modèle: Omga T2030NC Roll Feed Optimizing Cut-Off Saw
Année: 2003
480 Volt 3 phases
12-5/8″ Width x 4-3/4″ thickness cap., Automatic Crosscutting Saw System for cutting up to 20′ long lumber. The Saw will handle a workpiece down to 23.6″.

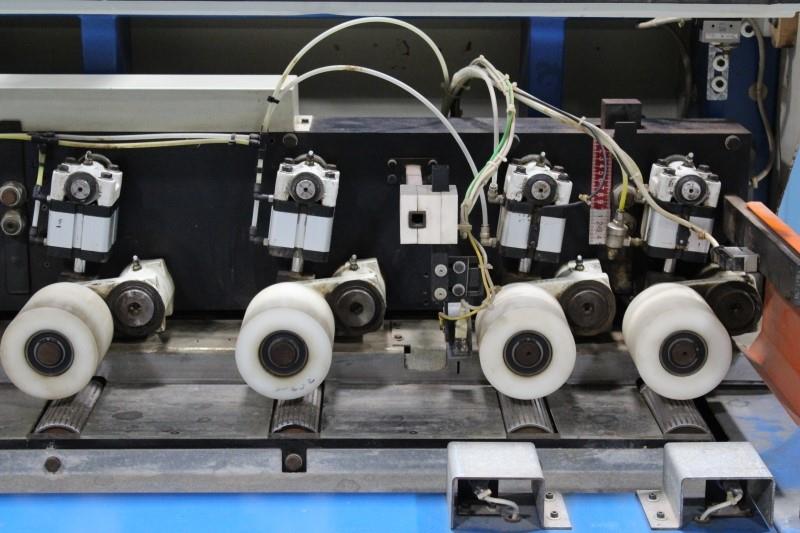

Rollers at infeed handle rough inbound material with variation in thickness

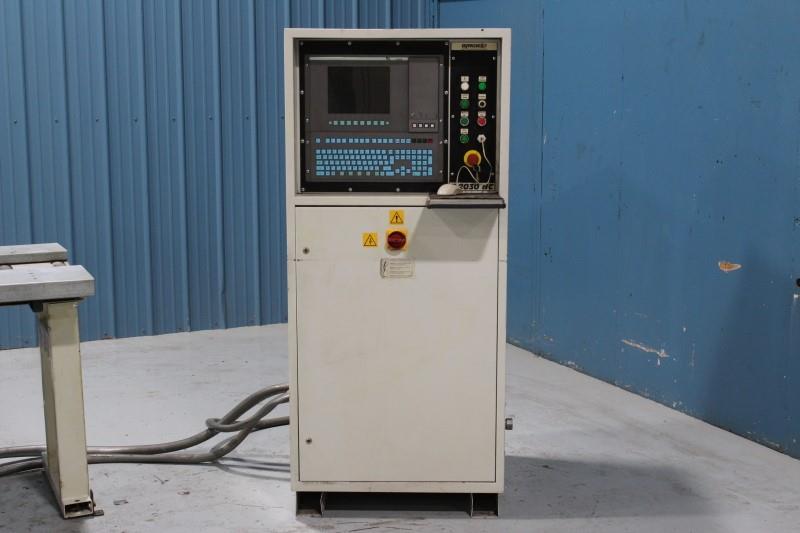

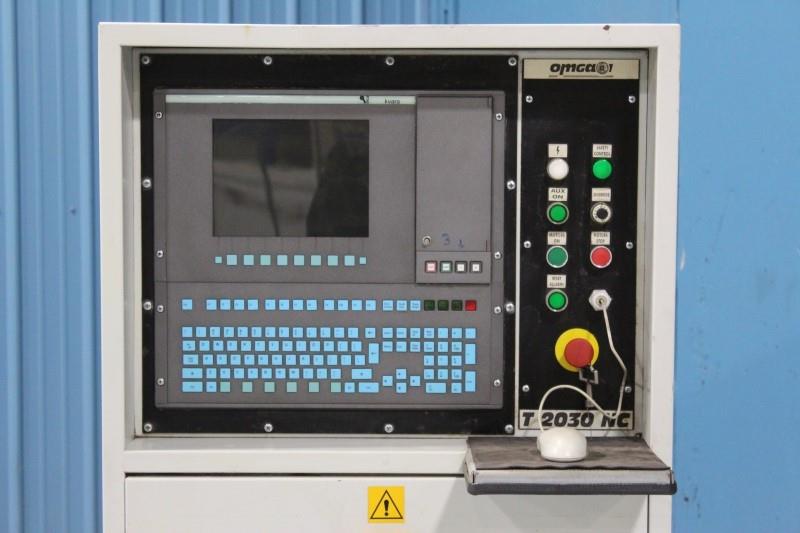

PC Computer with 10.5″ Kvara User-interface (w/ Push Button Keyboard) performs (11) working programs and sorts up to (3) lumber grades;
Infeed belt conveyor with double side marking station permitted.
Upcutting Auto-Feed Cutoff Saw, cutting cycle speeds from (1/2 – 1) Sec, 18″ dia. saw blade included.
Saw has a 7.5 HP saw motor that drives arbor at 3,400 RPM.
12 HP Feed motor powers the lumber up to a max. feed speed of 800 FPM.

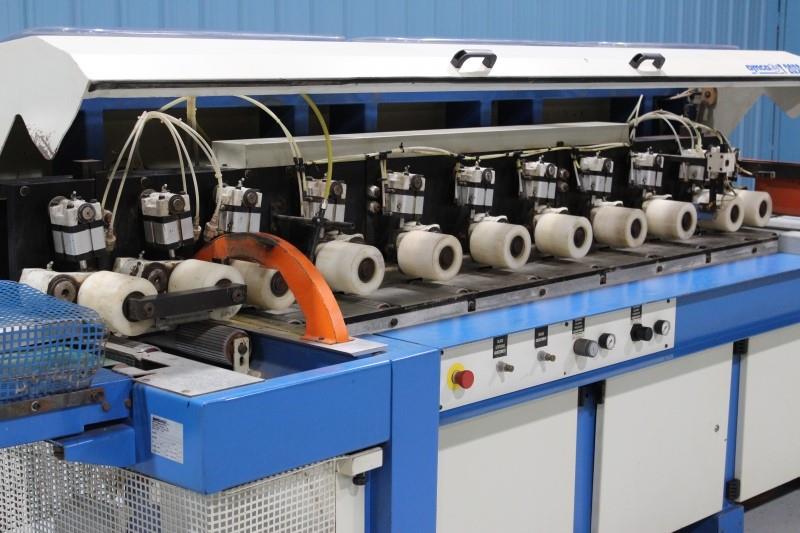

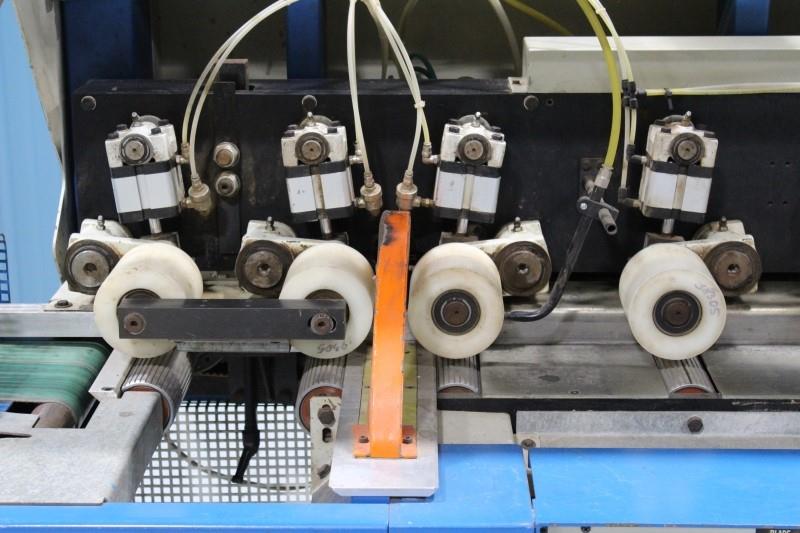

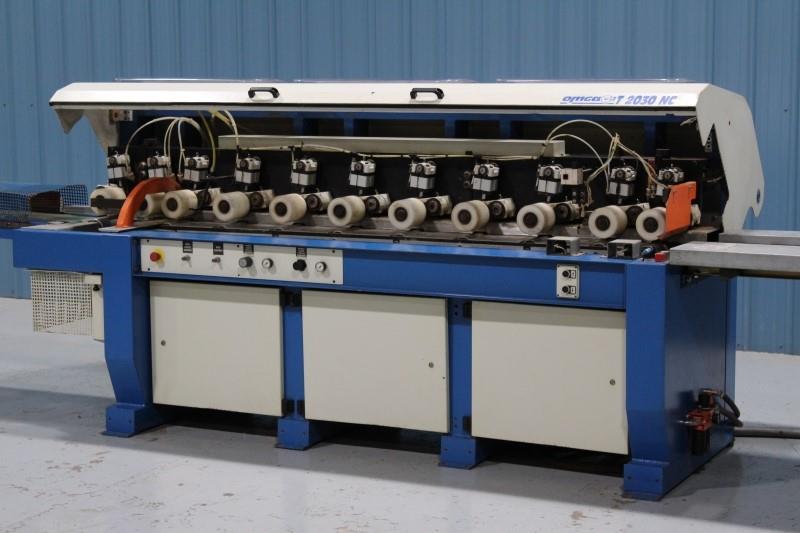

(3) Rollers top & bottom accelerate the material at outfeed for acceleration for next cut.

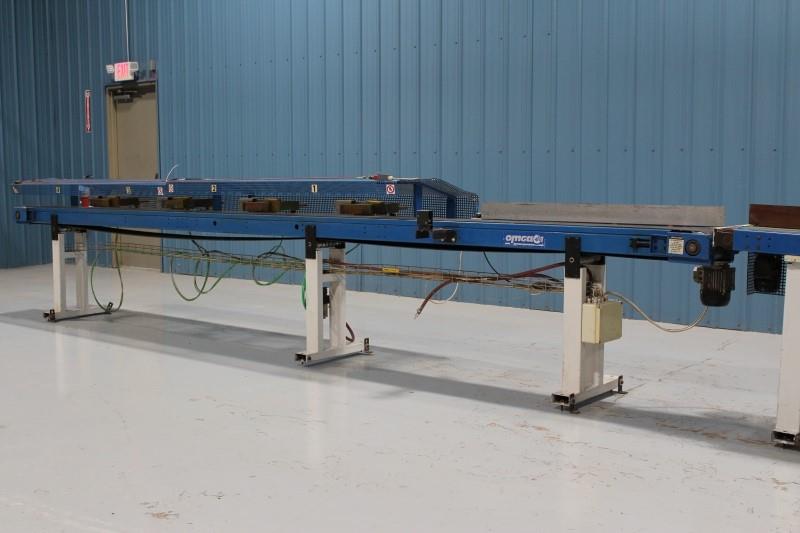

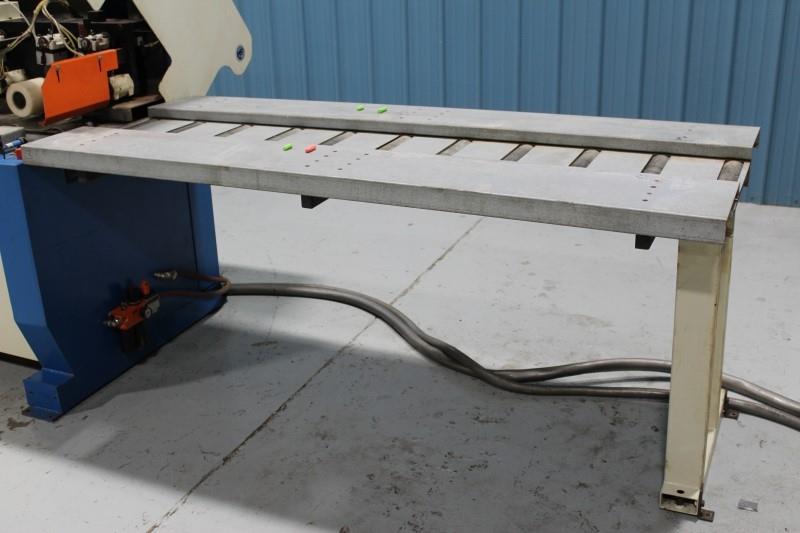

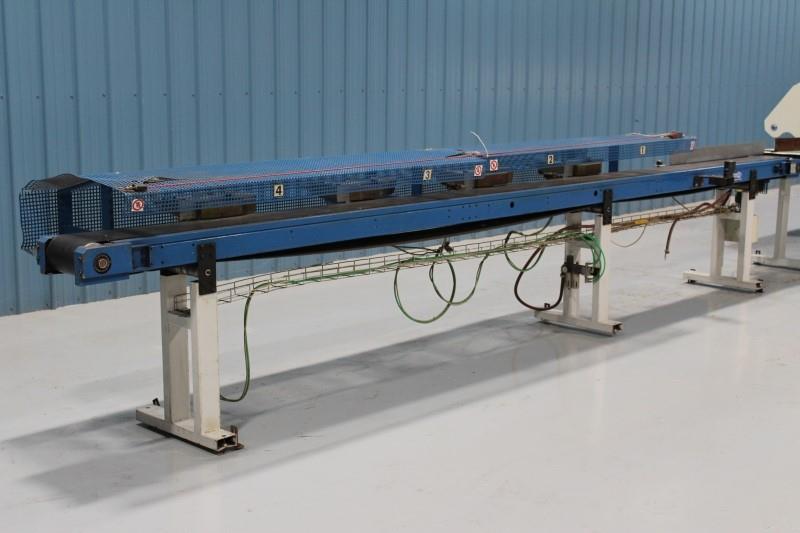

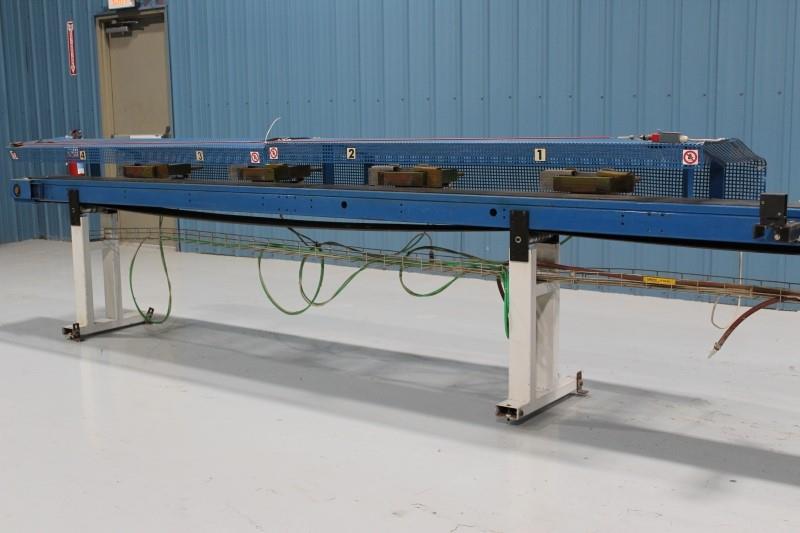

Includes Outfeed section with: 12′ Outfeed belt, cutting lists can be entered at the machine or transferred by floppy disk; in- & outfeed conveyors (19’ outfeed belt conveyor with four pneumatic sorting kickers).
Controller needs to be checked out and possibly repaired
MACHINE AUX USA
ATTENTION PRIX USD
2859
