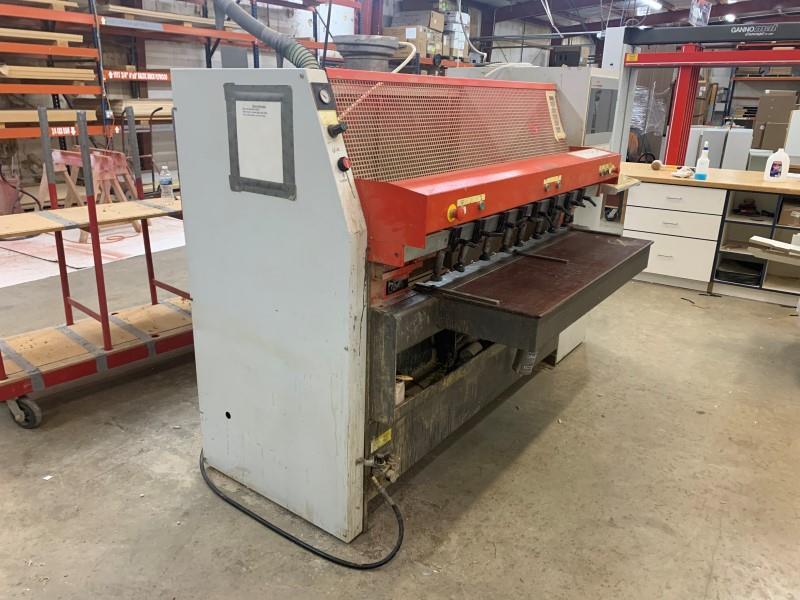

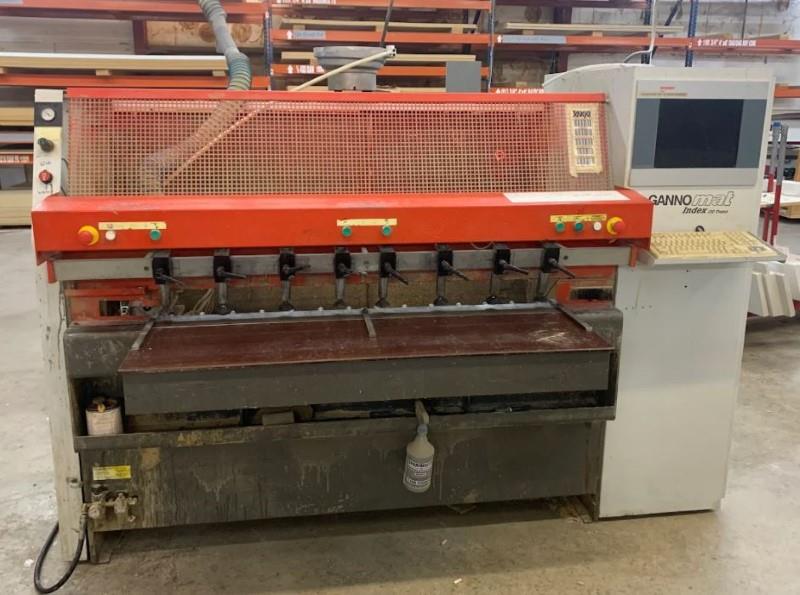

Perceuse inséreuse a goujons CNC Gannomat Index 130 logic 2006

GANNOMAT INDEX 130 TREND … CNC Bore, Glue & Dowel Inserter

•	The GANNOMAT « Index 130 LOGIC » is a CNC Controlled Point-To-Point Drilling/Gluing/Dowel Insertion Machine for variable programming of boring patterns.
•	X-Axis CNC controlled via precision ball screw Servo drive, Y- & Z-axis adjusted via mechanical spindles, set by manual digital indicators.
•	Working width of 1,300 mm (51″) x 3/4″ – 7-3/4″ width x 1/2″ – 3-1/8″ material thickness with (2) fields, LH/RH (mirror-image).
•	(8) Vertical holddown cylinders for horizontal part processing.

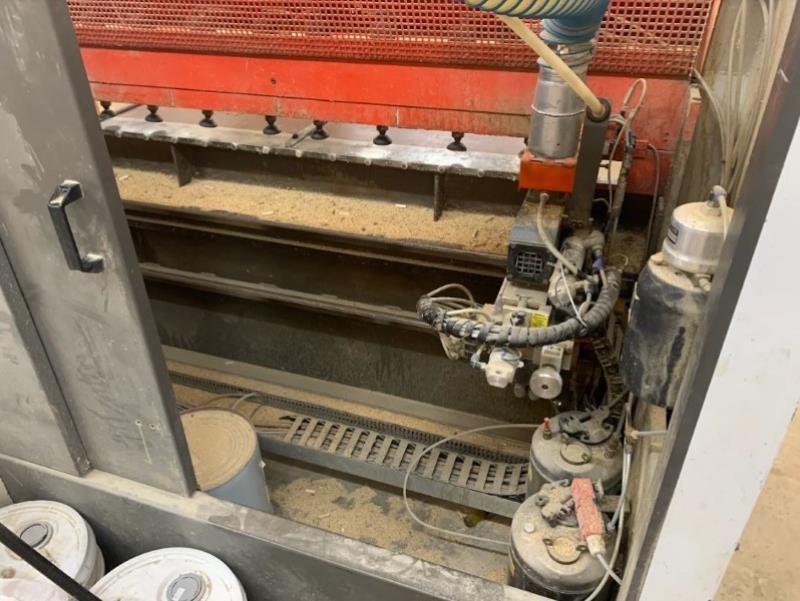

•	Dowel driving & horizontal boring integrated into (1) station; the dowel driving unit is located along side the boring station; both units are mounted on (1) support.
•	Horizontal drilling & boring station head setup for 6 – 8 or 10 mm, dowel length from 25 – 50 mm.
•	Doweling Station includes: Vibrating hopper; insertion head & dowel driving with air impulse; setup for 8 mm dia. x 50 mm long dowels.
•	Glue valves controlled individually at control cabinet, central adjustment for the amount of glue by means of digital timer.
•	Operating System, MS-XP & GANNOMAT production software; 15″ color touch-screen monitor interphase, USB drive, bar code capable.

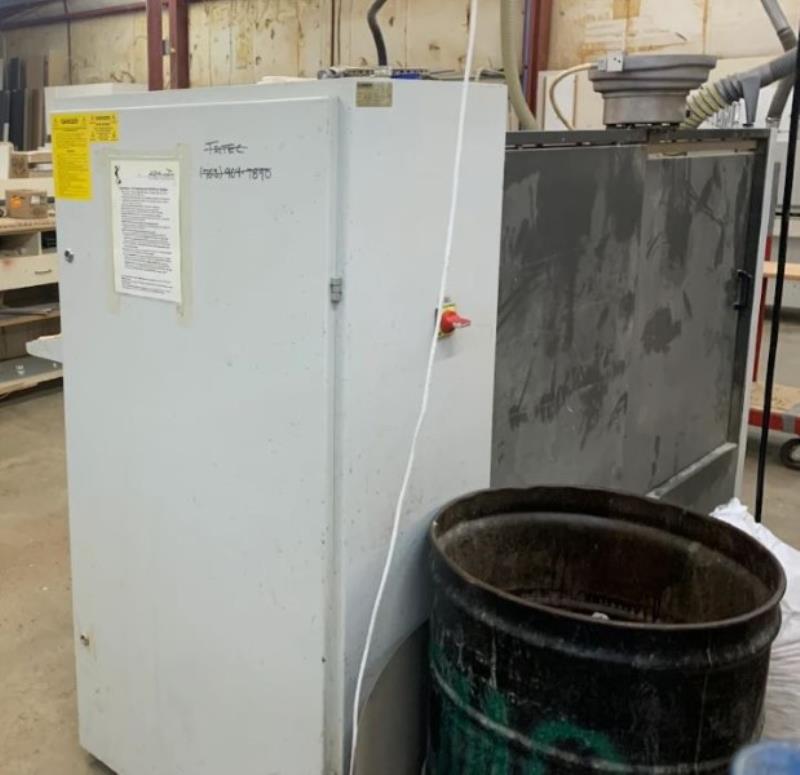

•	Controller & Drive: BECKHOFF « C3620 TWINCAT V2.10 », complete with (1) glue tank, (1) water tank, auto-lubrication system, and all original manufacturer’s machine documentation..

MACHINE AUX USA

PRIX USD

2587
