Description

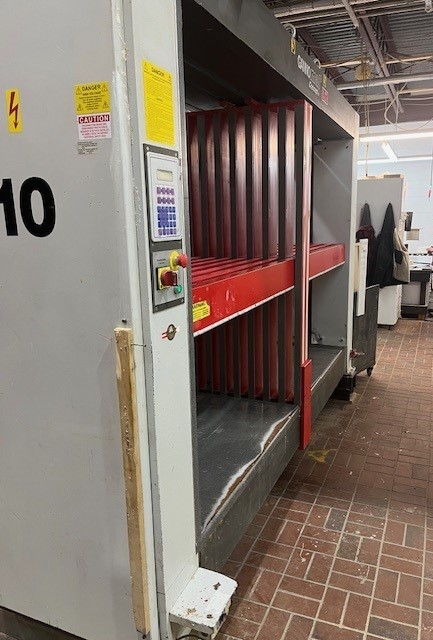

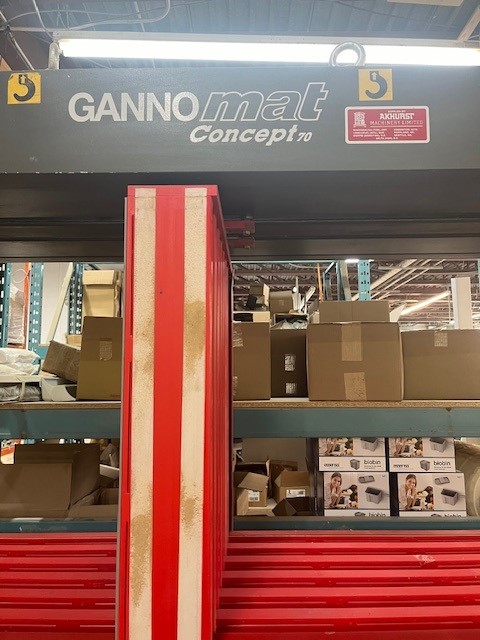

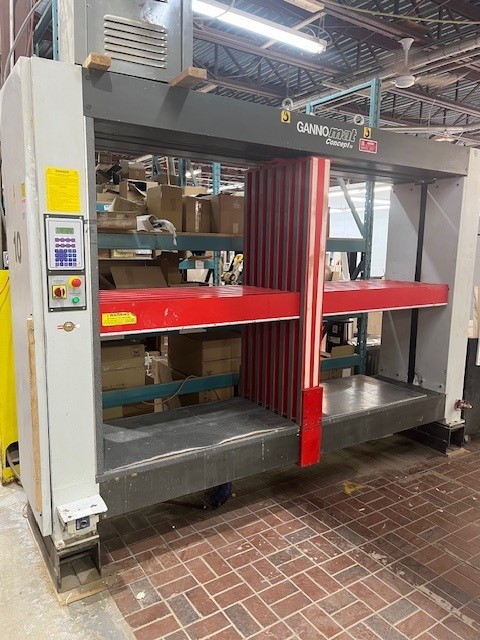

Presse à caisson Gannomat Favorite 70
Année : 2002

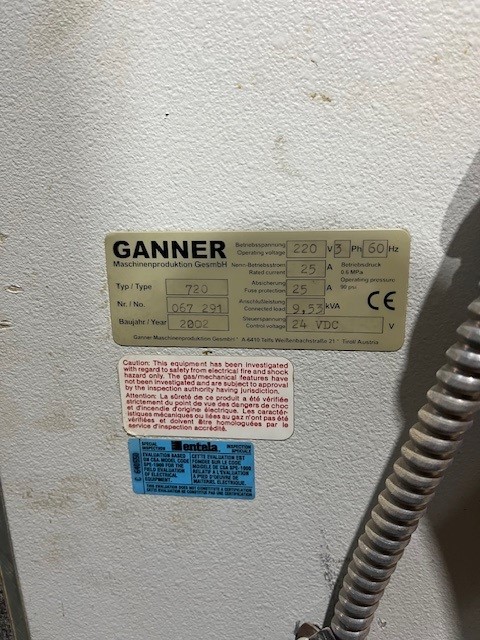

220 volts 3 phases inclus transformateur pour fonctionnement sur le 600 volts
- Interlocking style clamp with (6) interlocking horizontal bars and (5) vertical bars
- Sturdy stress-free steel frame construction
- Potentiometer for stepless adjustable pressing force
- Pressing force min. 300 daN (kg)
- Pressing force max. 2200 daN (kg)
- 3 Pressing velocities and adjustment rates: 5, 10 and 25 mm/sec. (with fine positioning or creep feed)
- Automatic workpiece recognition
- 50 mm/sec beam travel speed (up until workpiece recognition)
- Adjustable clamping cycle time with automatic opening
- Simple operation by 6 individual push buttons
- 6 movement combinations of the pressure beams can be selected by the control unit
- Clamp dimensions: 79″ L x 32″ D
- Minimum clamping width: 6″
- Maximum clamping width: 100.4″
- Maximum depth: 27.5″
- Maximum height: 55.1″
Le petit câble de sécurité dans le bas du serre-caisse devra être changé.
