Presse à caisson semi automatique Uhling HP

Description:

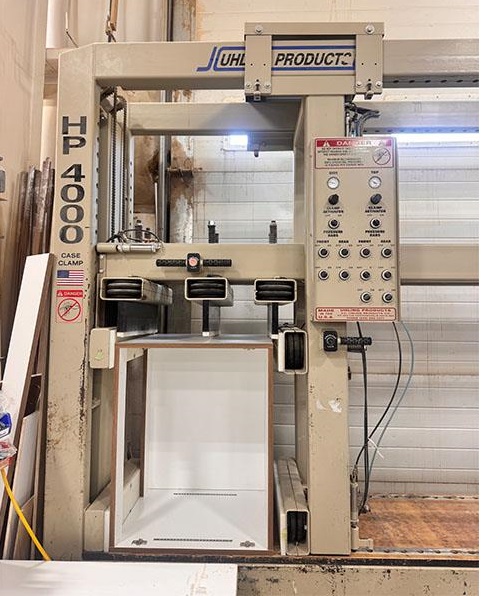

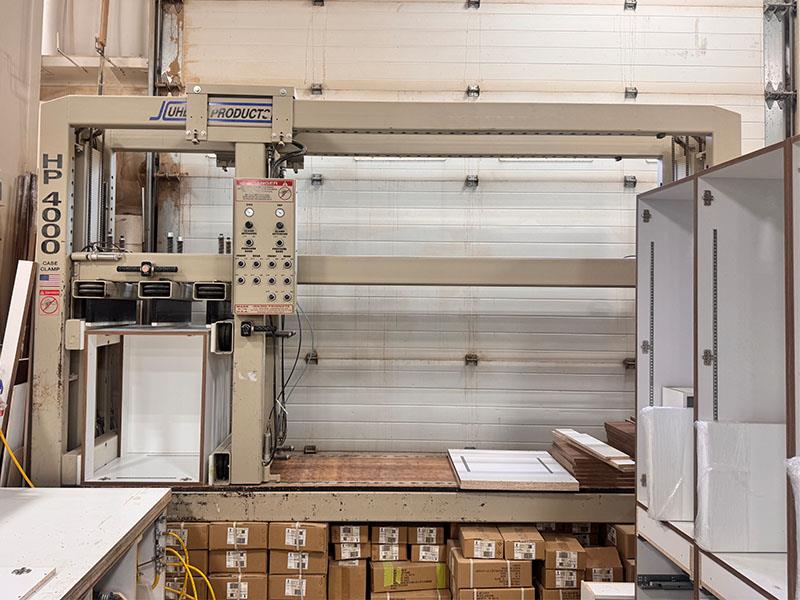

UHLING – HP 4000, …Case Clamp (Semi-Automatic)

•	Specifications 100″ Wide x 50″ high x 24″ deep clamping cap. and built with a Heavy wall steel frame construction. – Super « easy & quick » manual positioning of vertical side pressure carriage and top pressure beam.
•	Includes: Push button release, pneumatic locking and « counterbalanced » movement of horizontal top pressure beam; vertical side pressure carriage with single lever release & lock; locks in place with (4) air cylinders and rides on bearings for quick & easy positioning.
•	Vertical & horizontal pressure beam equipped with: (5) Adjustable « dual » ram air pod pressure shoes (3 on the top horizontal beam & 2 on the side vertical beam); 3-1/2″ clamping stroke; features individual air pod selection.
•	Since the pressure bar is positioned over the joint (or shelf), it will automatically compensate for sizing inaccuracy.
•	Independent controls for top & side pressure and timer for clamping cycle; solid bottom & back support for any size case.

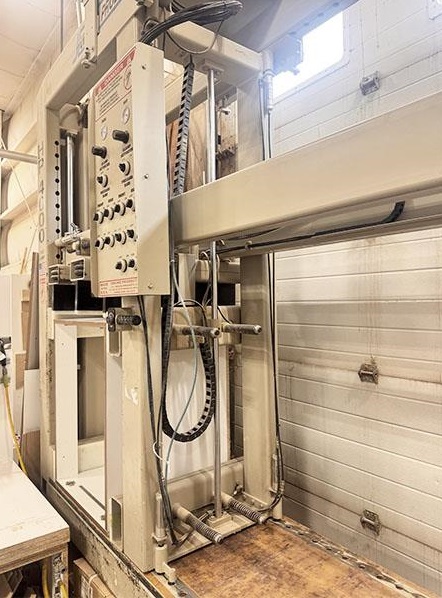

•	Air flow pressure controls & pressure gauges built into traveling vertical carriage (always close to the Operator).
•	Overall dimensions: 143″ x 90″ x 30″.

Comment: A well-maintained Case Clamp – something you rarely see!

MACHINE EN ONTARIO

PRIX EN USD
