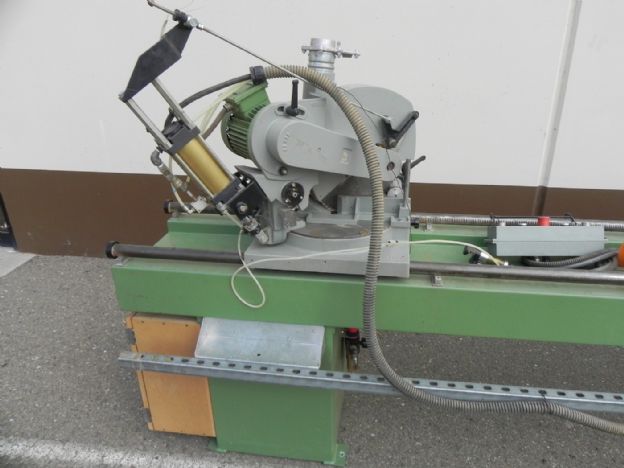

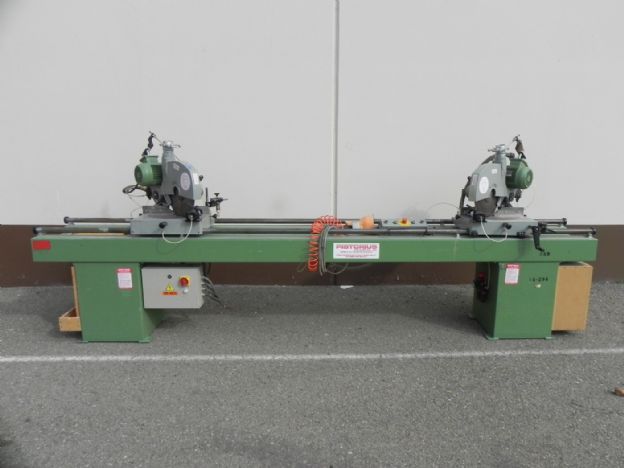

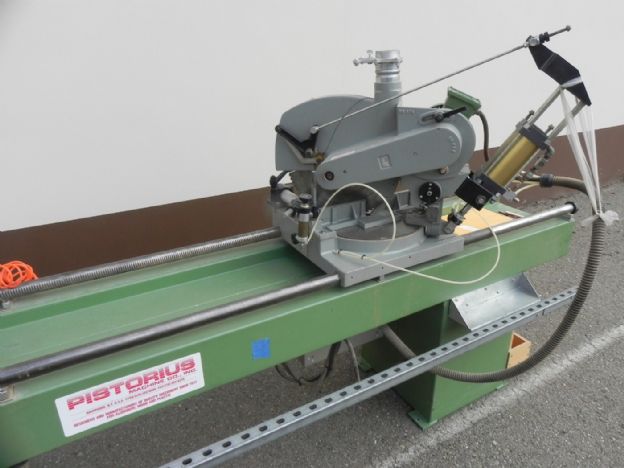

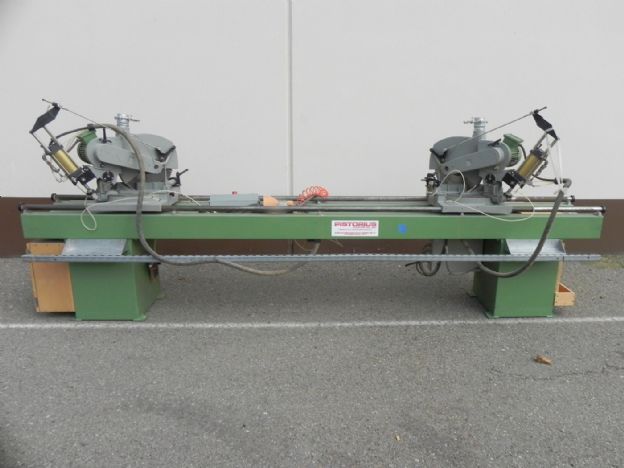

Scie à onglet double Pistaurius DCH-16
-Heavy duty double miter saw
-2 X 4.4HP 3,450RPM saw motors with « V » belt drive -16″ maximum blade diameter -Foot pedal actuation -Maximum 126″ (3,200mm) between centers when cutting at 90 degrees -Minimum 17 1/2″ (445mm) between centers when cutting at 90 degrees -Minimum 20″ (508mm) between centers when cutting at 45 degrees -Maximum crosscut width at 90 degrees is 7 3/4″ (197mm) and at 45 degrees it is 5 5/8″ (143mm) -Maximum cutting height is 4 1/4″ (108mm) -Both right and left heads angle towards or away from each other with stops at 90, 30, 22.5 and 15 degrees -Heads also tilt up to 45 degrees from vertical toward the outside -For compound mitre cuts to 90 degrees the saws can only be tilted vertically up to 30 degrees to the outside
-2 vertical pneumatic clamps and 2 horizontal clamps with automatic release when saws return to their home position -Electro/pneumatic control for saw activation is from a movable operator push button station
-2 possible work sequences 1st is simultaneous cutting by both blades and 2nd is individual cutting -Digital length readout
-2 saw dust outlets
-Dimensions for shipping 14` X 40″ X 66″ and approx 1100lbs.
MACHINE AUX USA PRIX USD
