Tenonneuse double SCM Concept 2000

Imprimer

UGS : 2547 Catégorie : Tenonneuse double

Description

Description

Tenonneuse double SCM Concept 2000

Année: 1999

Description:

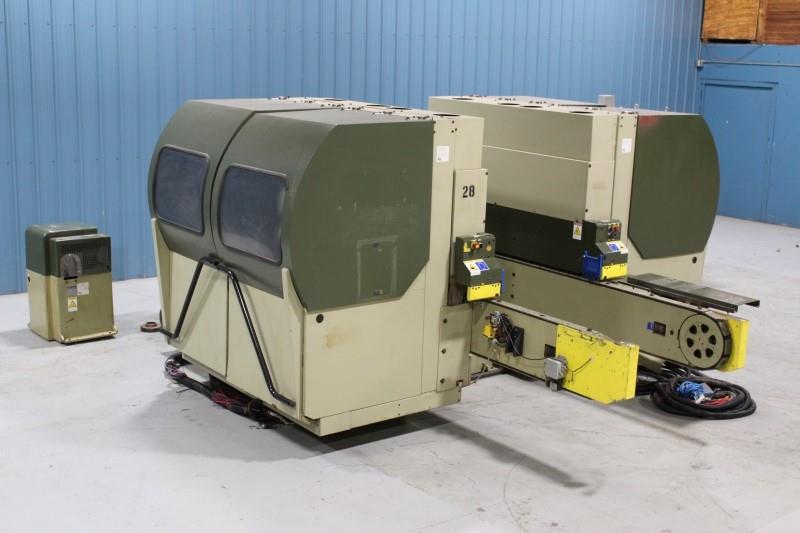

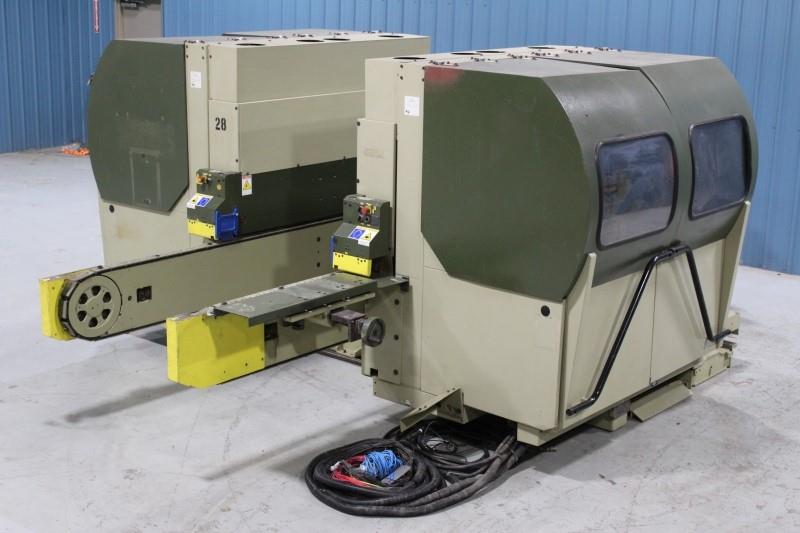

SCMI Concept 2000 Double End Tenoner

•	96″ (2,450 mm) Opening cap., motorized opening with keypad entry & LED readout.
•	32″. infeed chain area in front of holddowns,
•	0″ – 4″ motorized thickness opening with mechanical digital readout, 6″ min. width, 2-post machine. Each side equipped with:

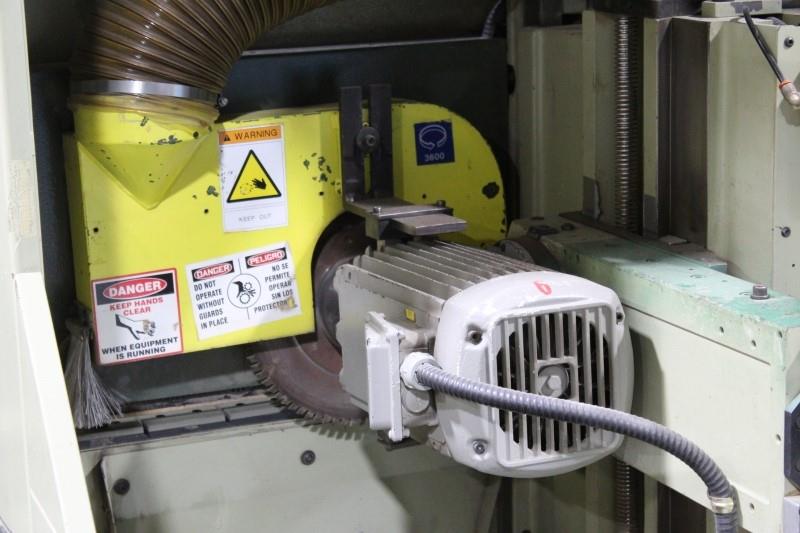

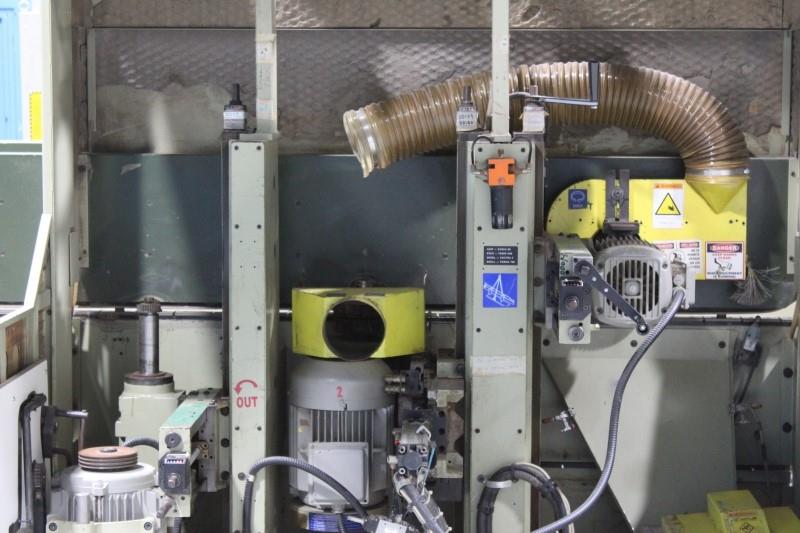

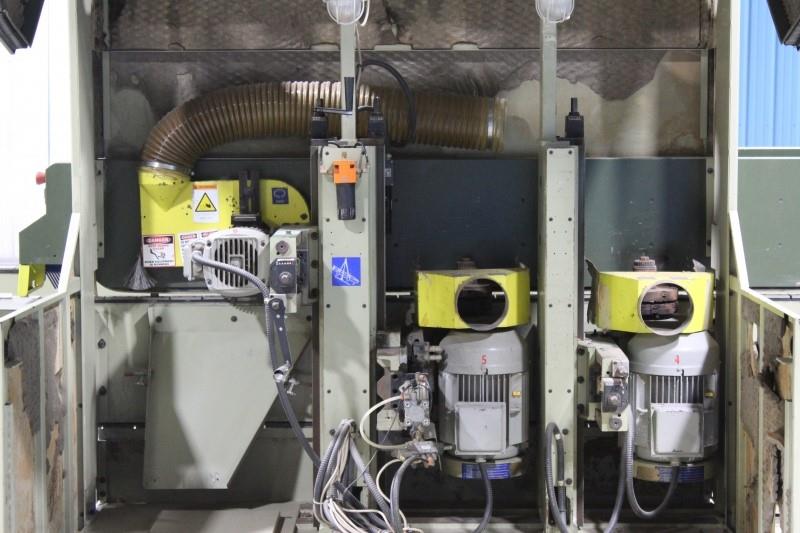

•	1st Station: Top/bottom Trim saw tilitng 0-45° ,8 HP, 5680 RPM

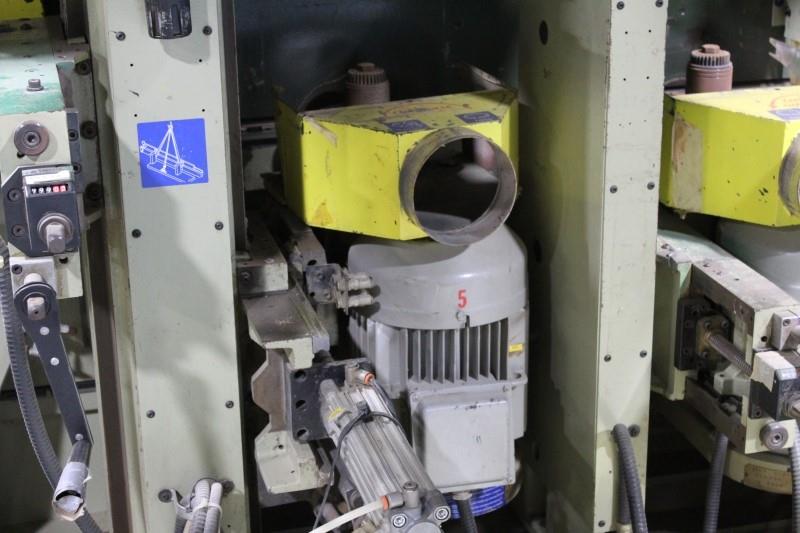

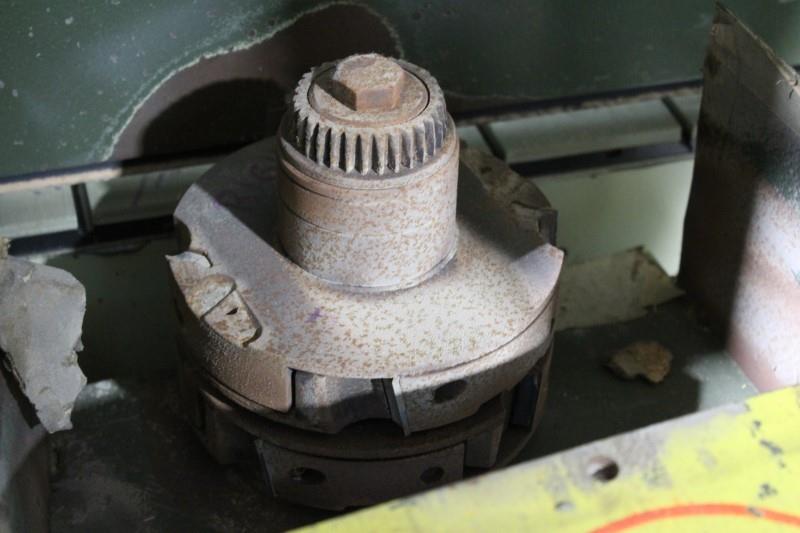

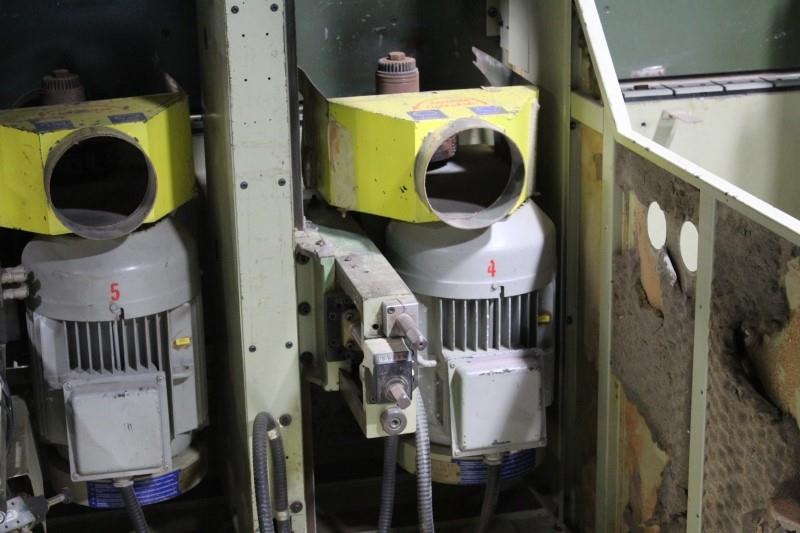

•	2nd Station: Jump Coping unit non tilting with 11.5 HP motor, 7,000 RPM
•	3rd Station: Coping unit non tilting with 11.5 HP motor , 7,000 RPM
•	4 HP Drive for 10 – 60 FPM variable feed speed,

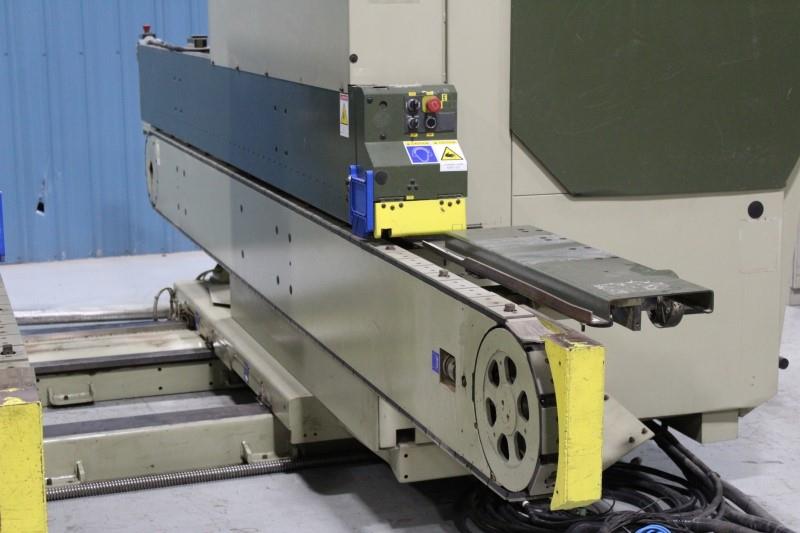

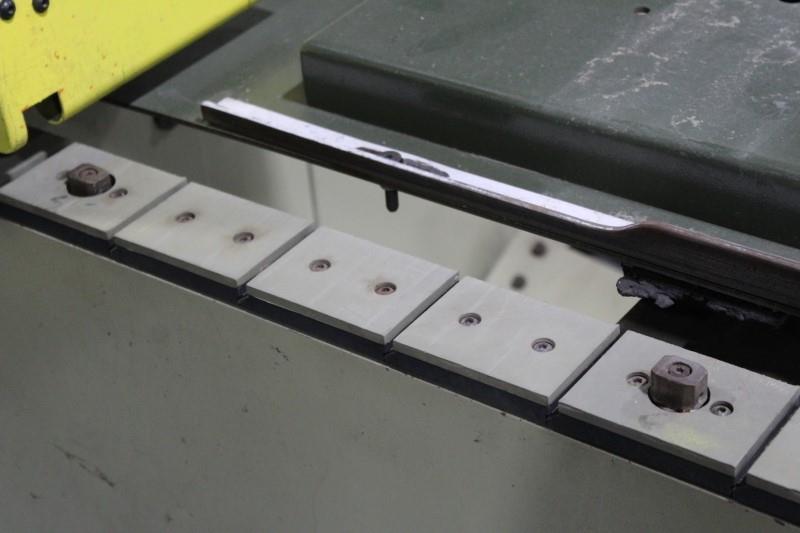

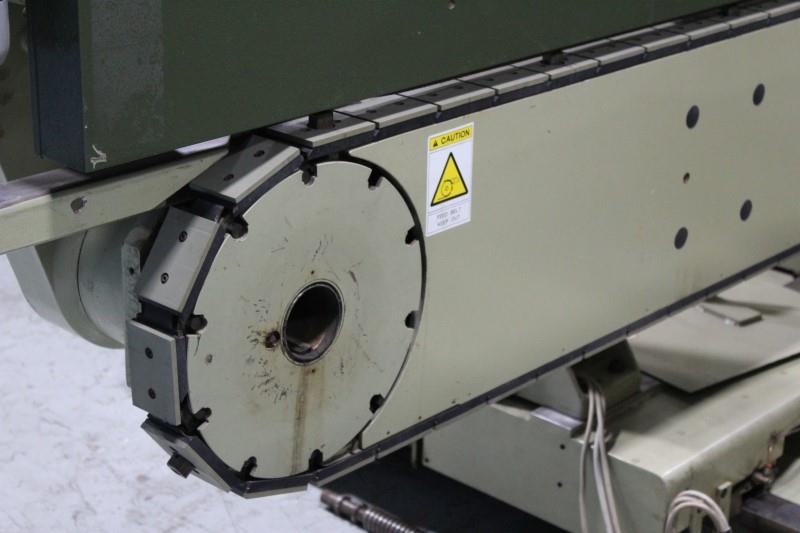

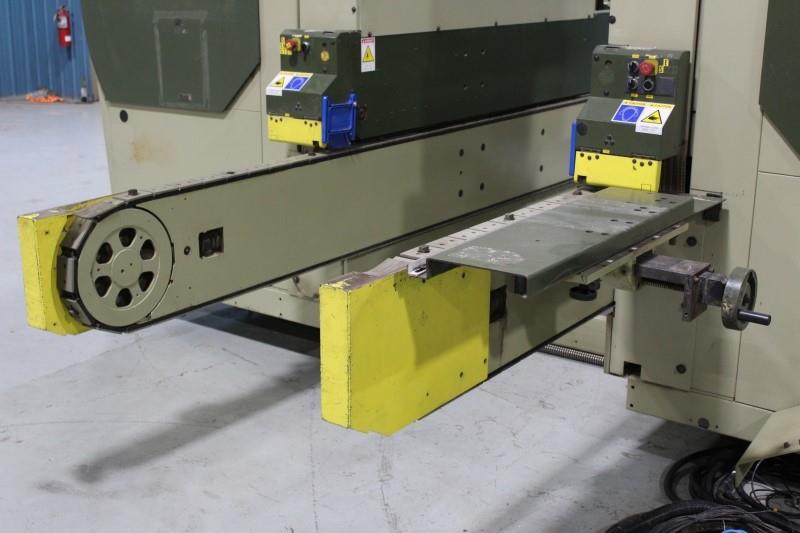

•	Chain dogs on 15-3/4″ centers, rubber top non-marring chain pads,
•	Heavy Duty chain links with needle bearings, automatic oil mist chain oiler, automatic brake on feed motor with emergency stop. Complete with:

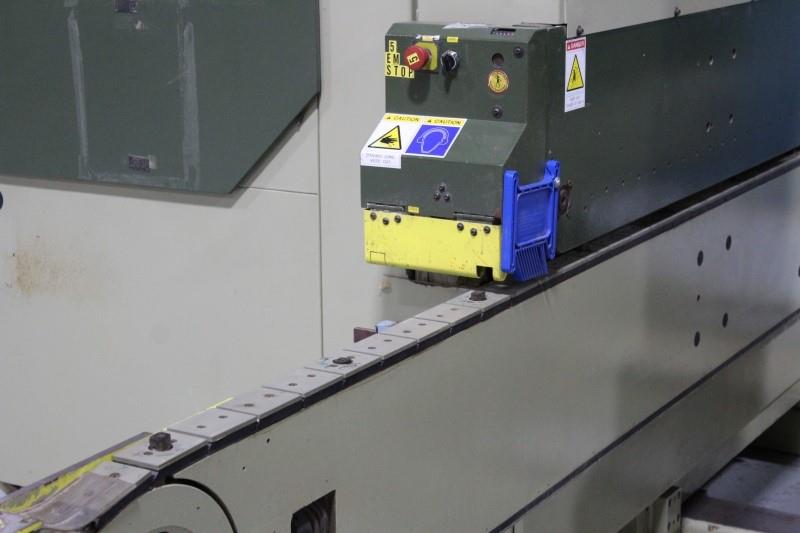

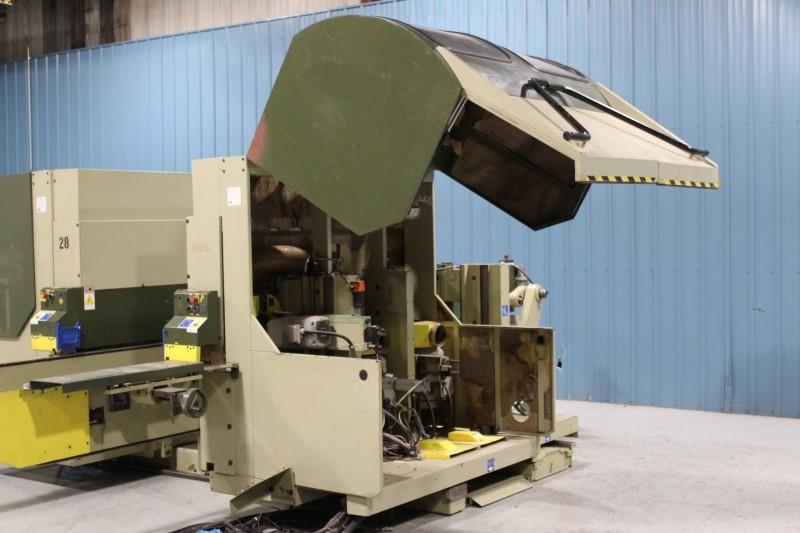

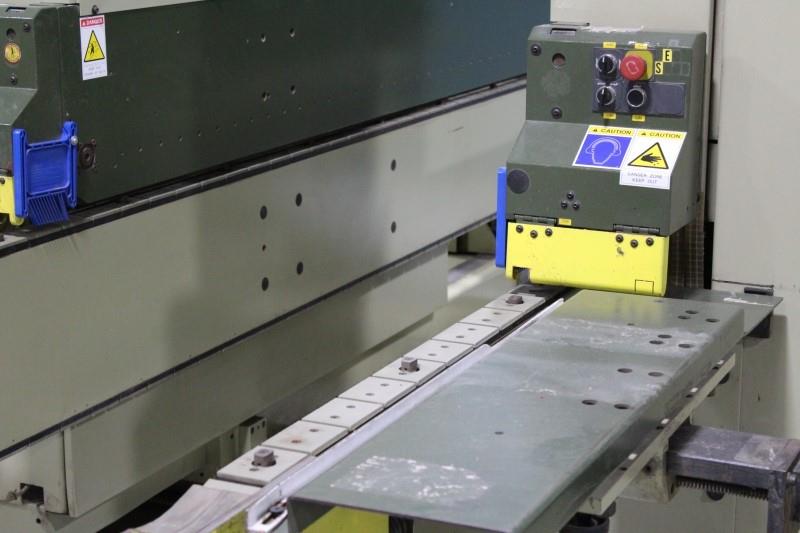

•	: Upper driven holddowns with continuous feed belts, feed beams can be disengaged for conventional part feeding in front of dogs; mobile remote control for setup, dual lead screw for traversing beam, and exhaust hoods on all heads.
•	Stand alone control cabinet w/ push button controls
•	Adjustable infeed fence
