Tenonneuse double

Description

Tenonneuse Friulmac Quadramat

Année 2007

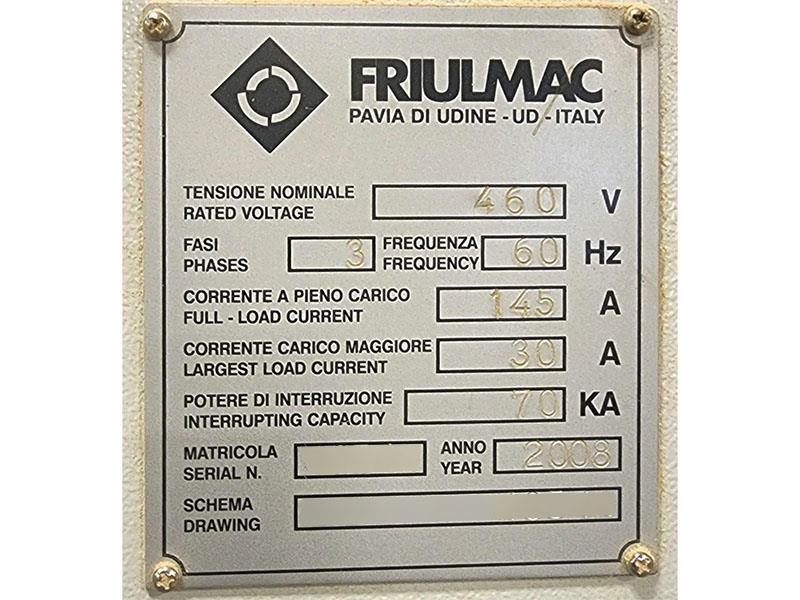

Voltage 460/60/3

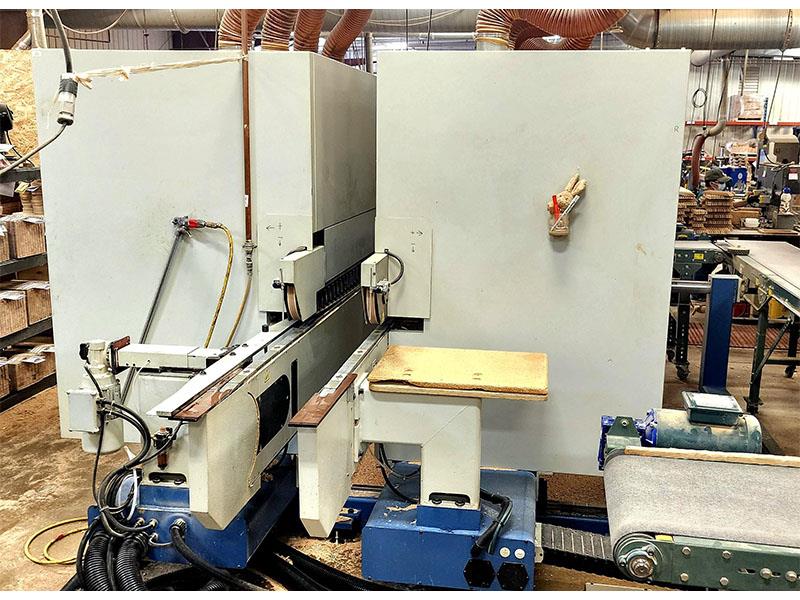

Friulmac double tenonneuse.

Description:

FRIULMAC Quadramat Double End Tenoner:

This machine is set up with (4) four profiling units left and right for a total of (8) eight

•	1,500 mm (59″) Max. x 95 mm (3.7″) min. opening
•	Loading space 1,041 mm (41″)
•	Thickness 10 – 100 mm (0.4″ to 3.9″) Equipped With:
•	Hogging/ Trim – Hogging/trim – Jump cope – Cope.

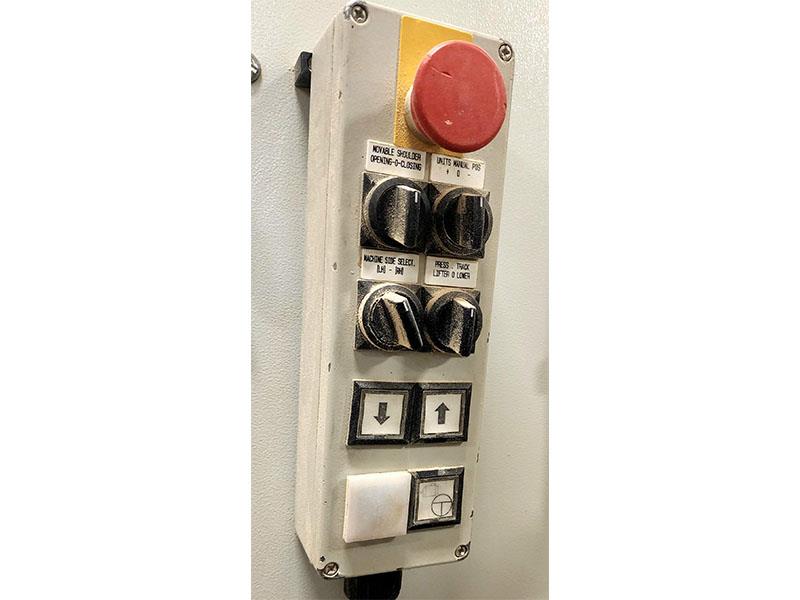

•	Motorized opening with LED readout on the control panel, approx. 25″ infeed in front of hold downs.
•	Variable speed feed 6-28 M/min. , feed motor 4.5 HP
•	Feed chain 2-7/8″ wide with rubberized pads
•	Top pressure with non-stainable stretching wheels driven by gear motor and inverter with speed adjustment synchronously to chain feeding speed

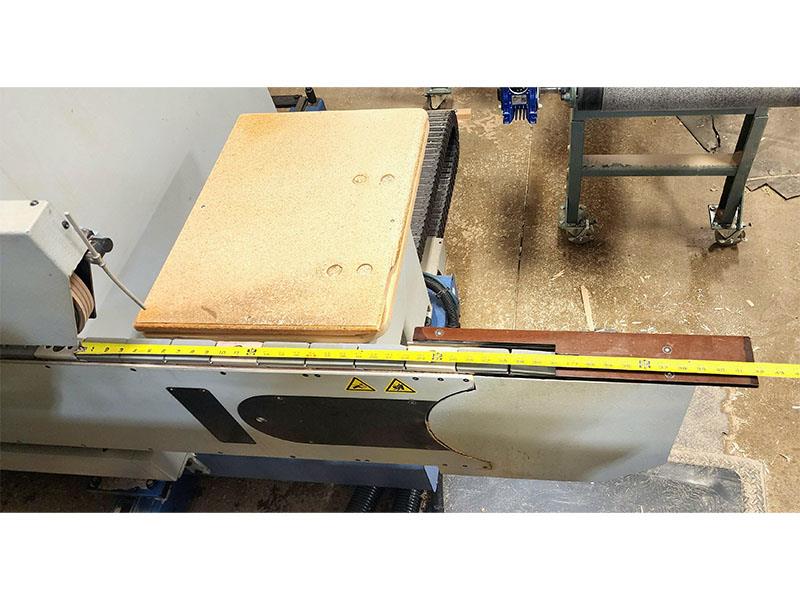

•	Infeed fence on left side
•	Machine left side fixed, right side adjustable

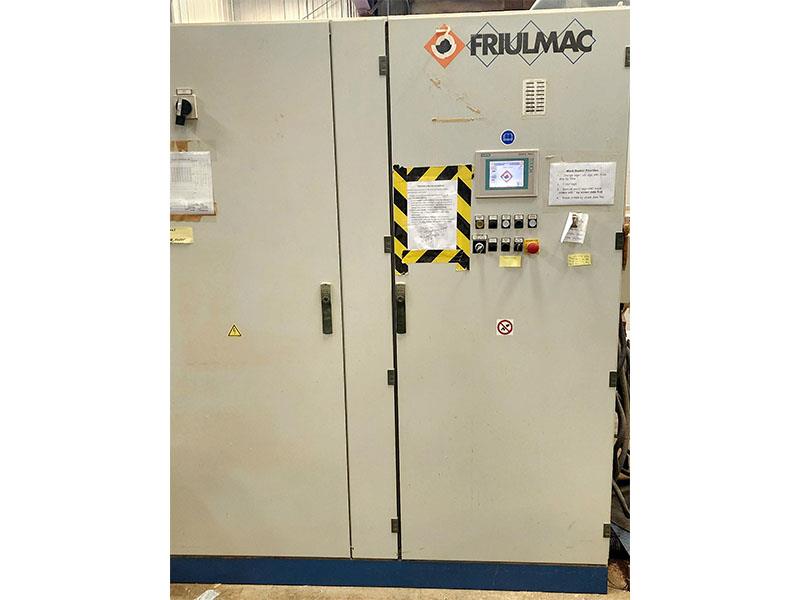

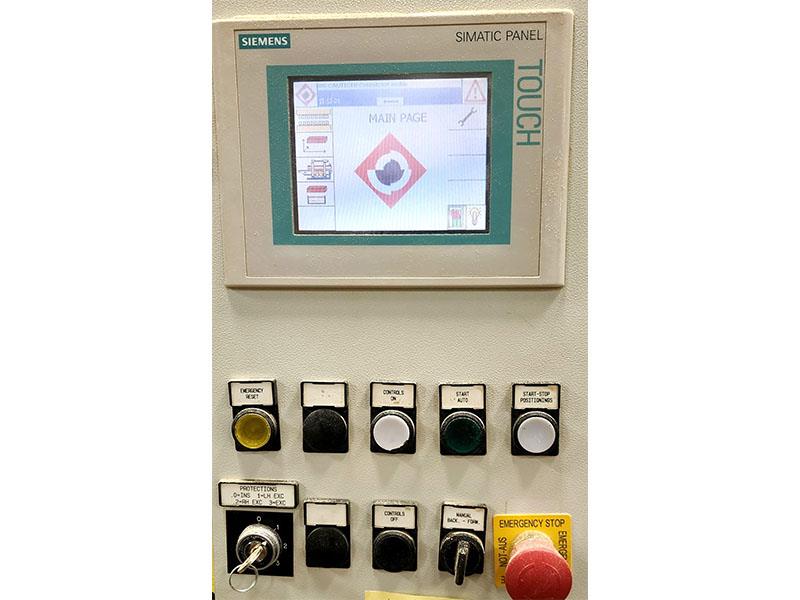

•	Complete control panel Working Stations:

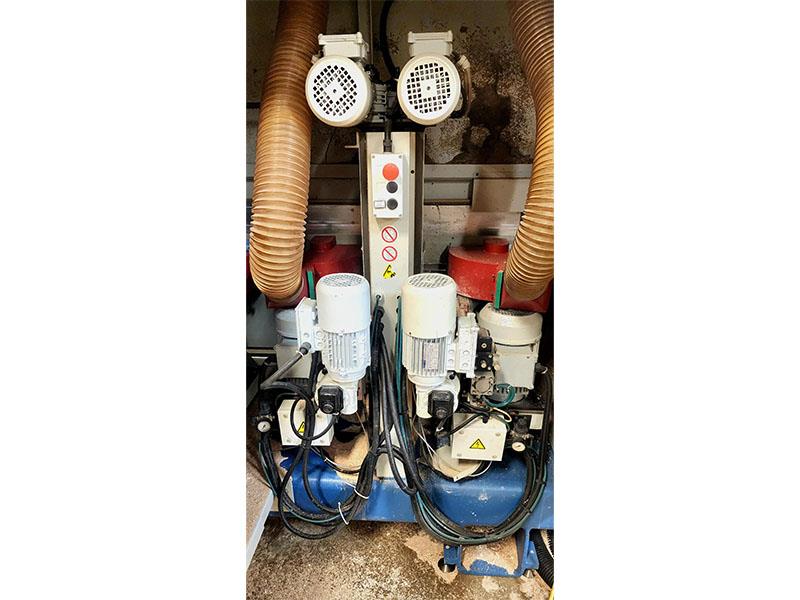

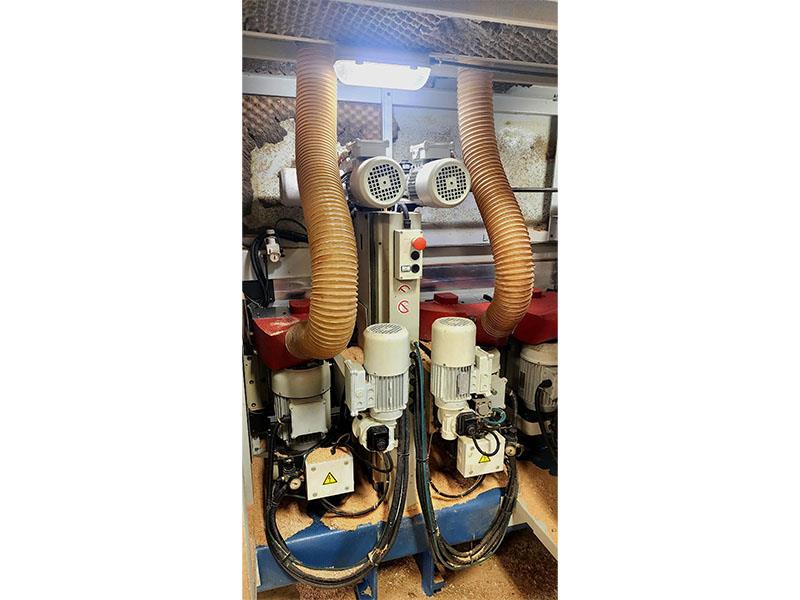

•	1st station: Profiling unit J-33 Right and Left. spindle motor 7,200 spindle 40 mm dia. with max tool diameter 250 mm
•	2nd station Profiling unit J-32 Right and Left. spindle motor 7,200 spindle 40 mm dia. with max tool diameter 250 mm
•	3rd Station : Profiling unit J-33 Right and Left. spindle motor 7,200 spindle 40 mm dia. with max tool diameter 250 mm
•	4th Station: Profiling unit J-32 Right and Left. spindle motor 7,200 spindle 40 mm dia. with max tool diameter 250 mm NOTE: machine will require some rebuilding and maintenance in regards to ball screws and Dovetail Guides per statement by current owner. They are replacing it with a new machine.

MACHINE AUX USA

PRIX USD

3288
