Description
Cnc Weeke BP 145
Année

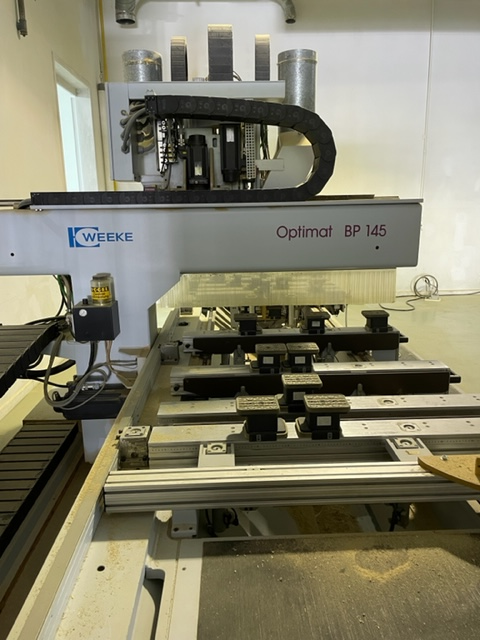

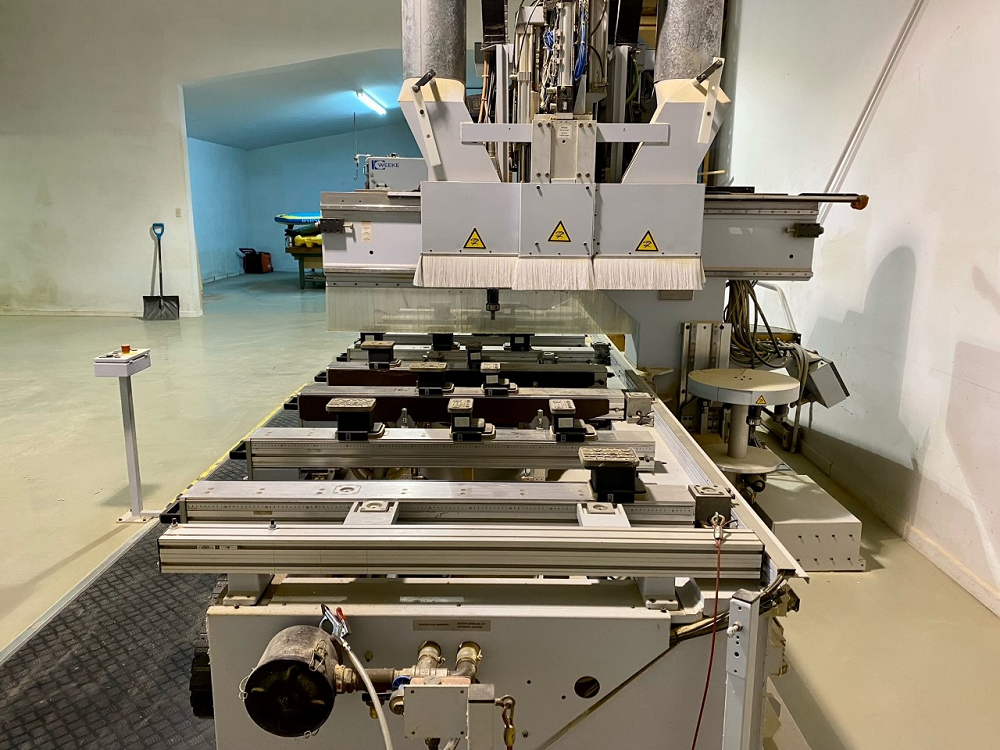

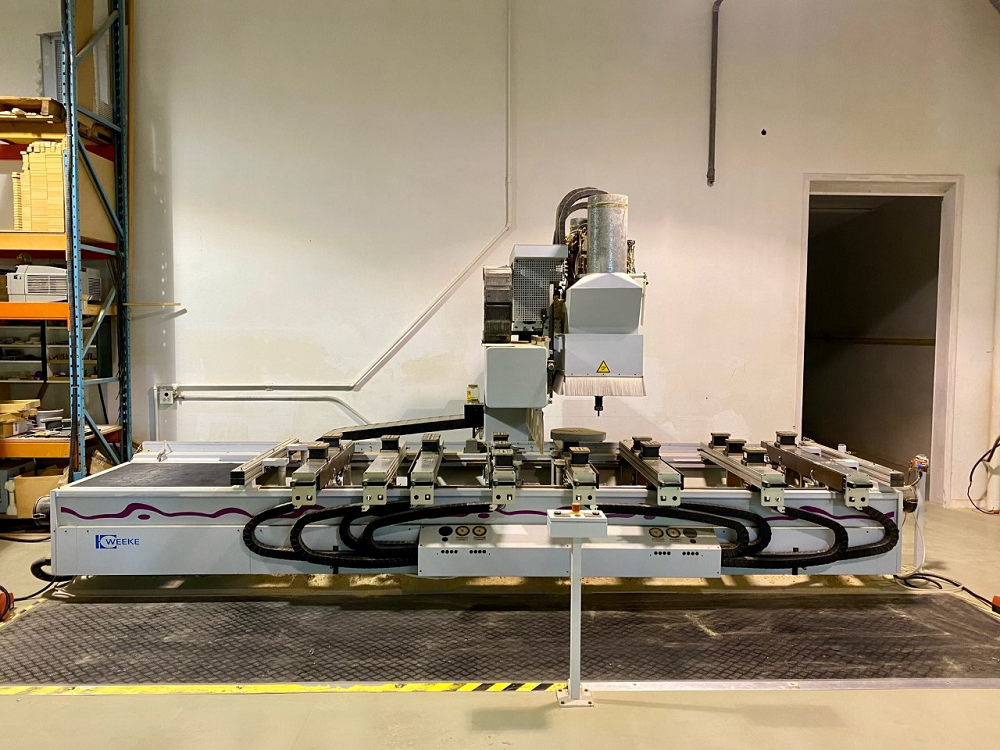

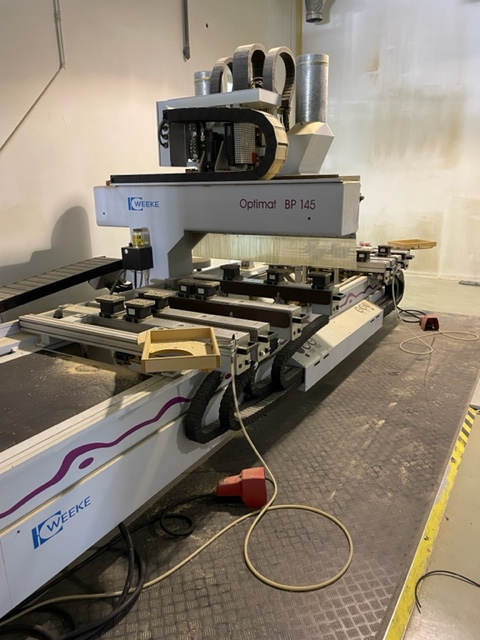

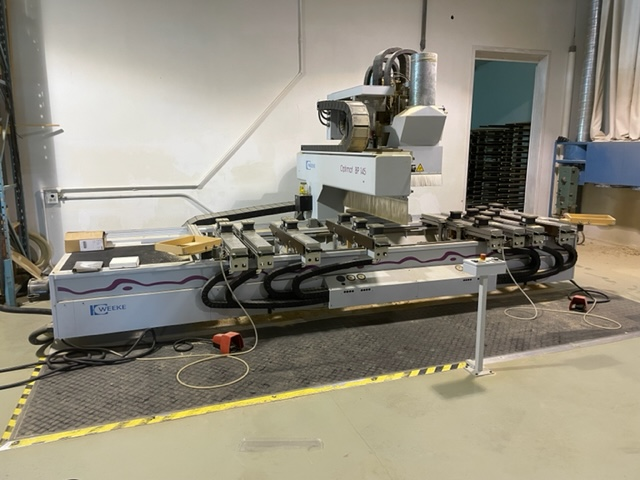

Weeke “BP-145″ CNC/PTP

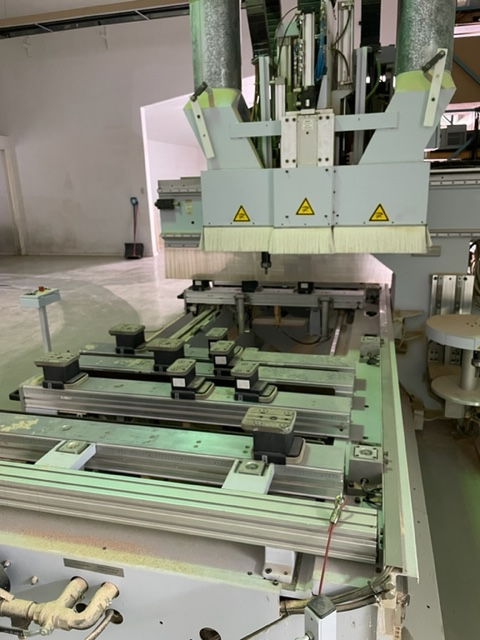

Eight (8) vacuum rails
Tubeless vacuum cups/pods
Panel lifting rails
Pneumatic reference pins

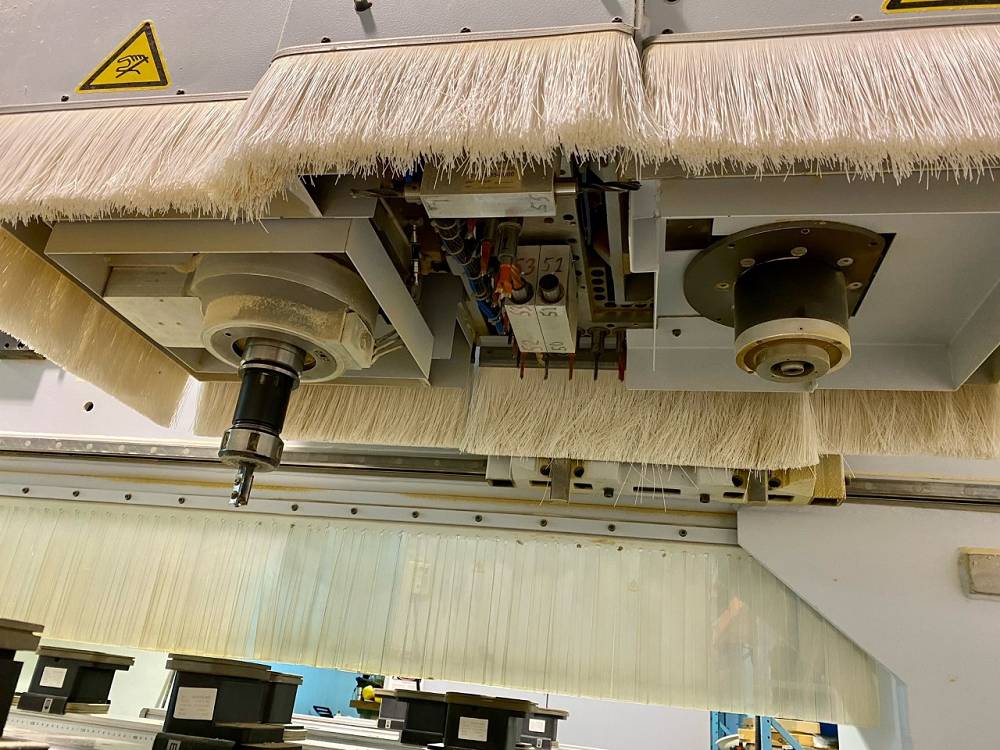

Router 1
16 HP
Liquid-cooled
Accesses tool changer

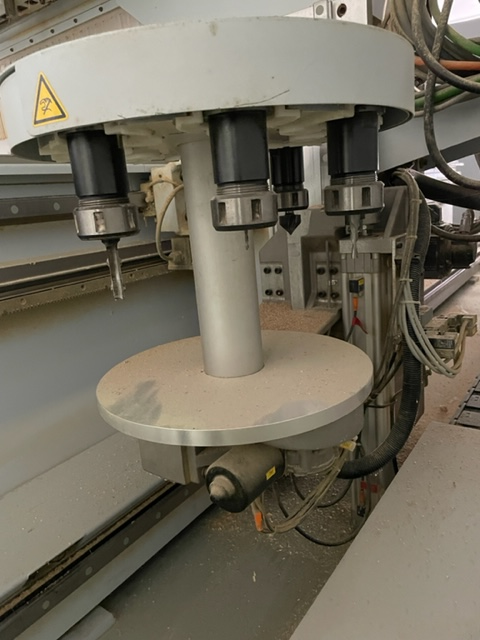

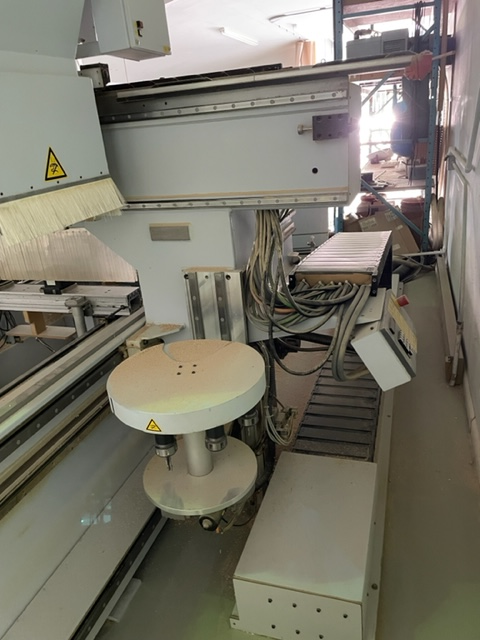

Rotary tool changer
Router 2
10 HP
Boring unit
Twenty two (22) vertical spindles
Two (2) horizontal spindles, four (4) outlets
Foot pedal operation
Central lubrication system
Enclosure around machine head
Pneumatic blast gates for dust ports
Front safety mats
Vacuum pump

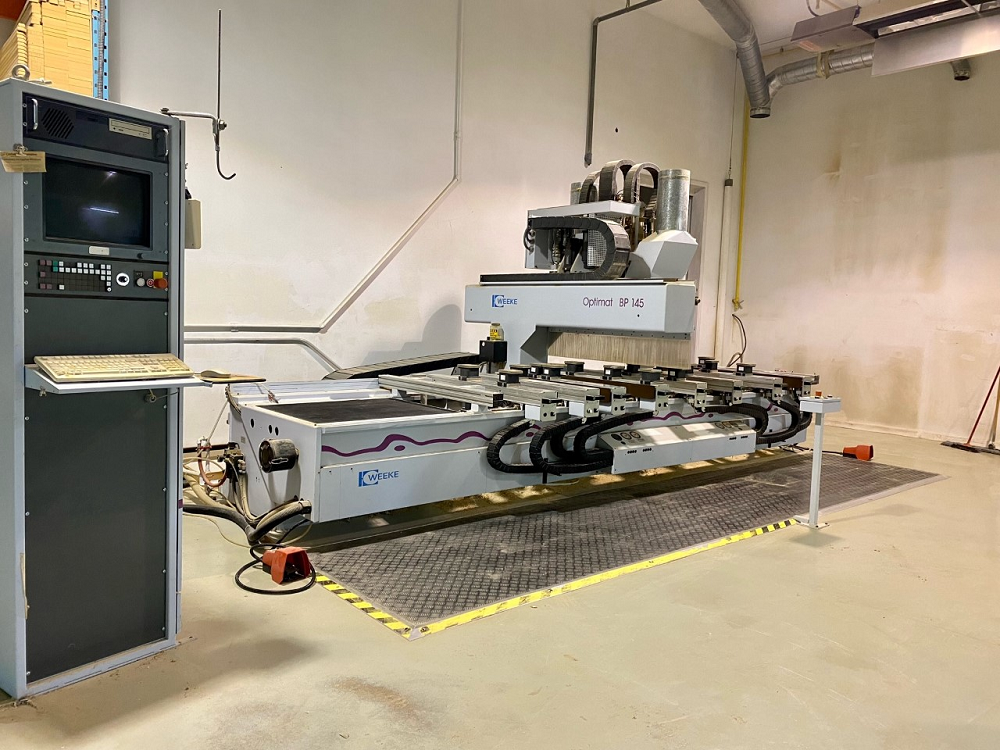

PC control with standard keyboard and mouse
Hand-held remote control
Dust pipe and flex hose NOT included
: -X-axis working capacity: 128″ (3250mm)
-Y-axis working capacity: 51″ (1300mm)
-Z-axis working capacity: 15.7″ (400mm)
-Maximum material thickness: 3.9” (100mm)
-X-axis positioning speed: 262 FPM (80 MPM)
-Y-axis positioning speed: 262 FPM (80 MPM)
-Z-axis positioning speed: 66 FPM (20 MPM)

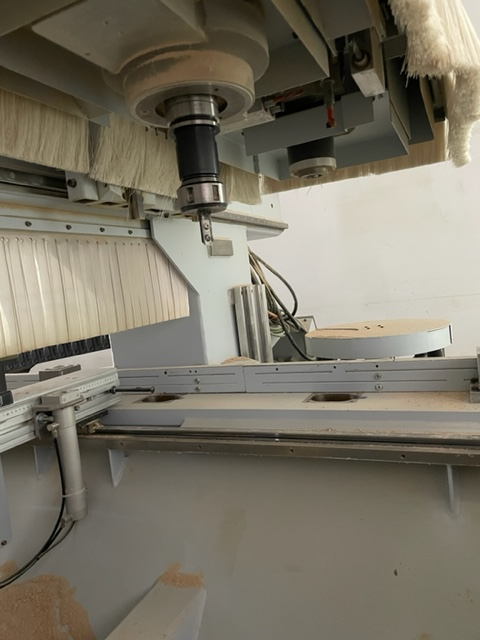

-One (1) vertical liquid cooled electro-spindle
-HSK-63F spindle mount
-1250-24000 RPM spindle speeds
-Fourteen (14) spindles in Y-axis
-Fourteen (14) spindles in X-axis
-Independently controlled spindles mounted on 32mm centers
-Rear mounted automatic tool changer head with eight (8) spaces.
-Vertical drill head with spindles in “L” share formation.
-Two (2) horizontal drill blocks with opposing spindles mounted in X-axis
-1.5 kW drill spindle drive motor
-Front mounted piggy back vertical router head, 2500-17580 RPM spindle speed
-Collet and nut type spindle mount
-Side and rear table pop-up location pins
-Two (2) table work zones with foot pedal controls
-Hand held operator router head positioning controller

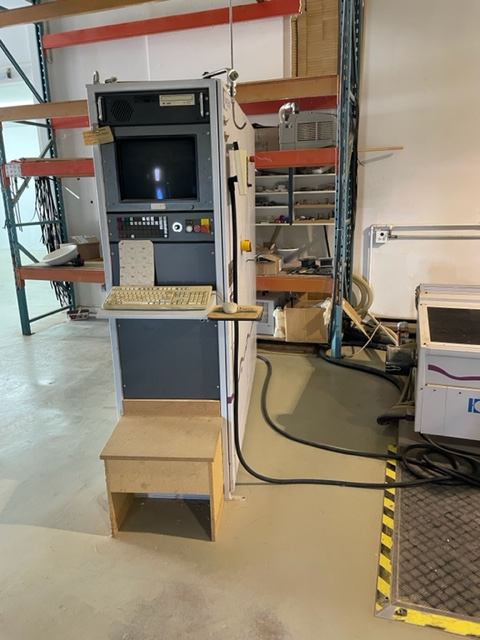

-Free standing operator and electrical control cabinet
-Vacuum pump
Elle est comme neuve et a à peine servi.
