Description

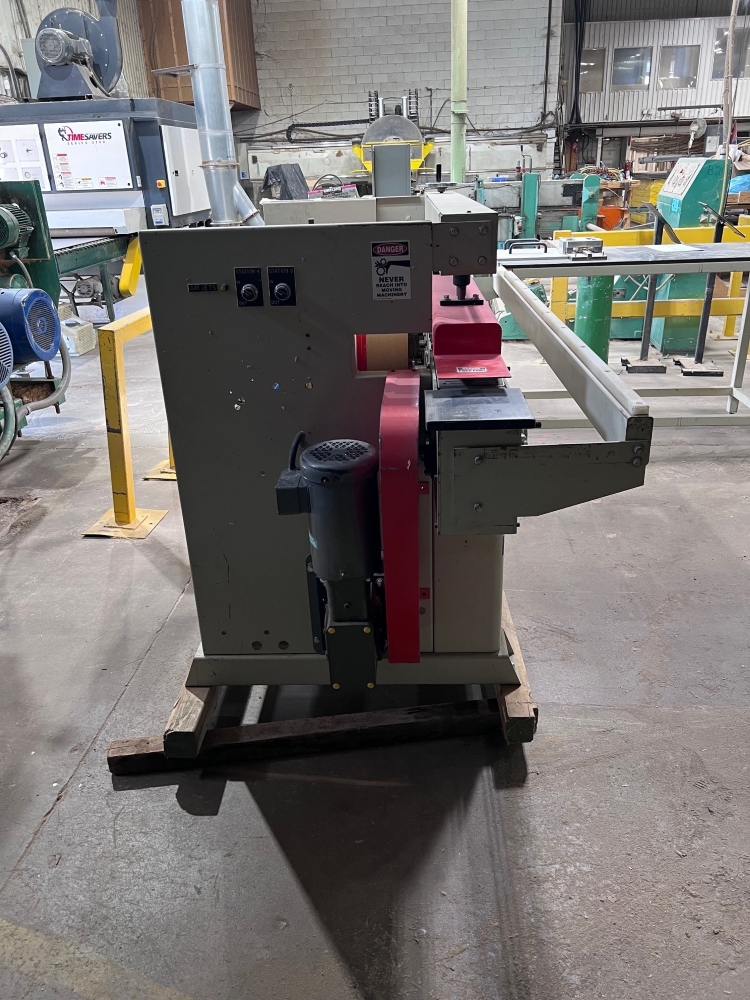

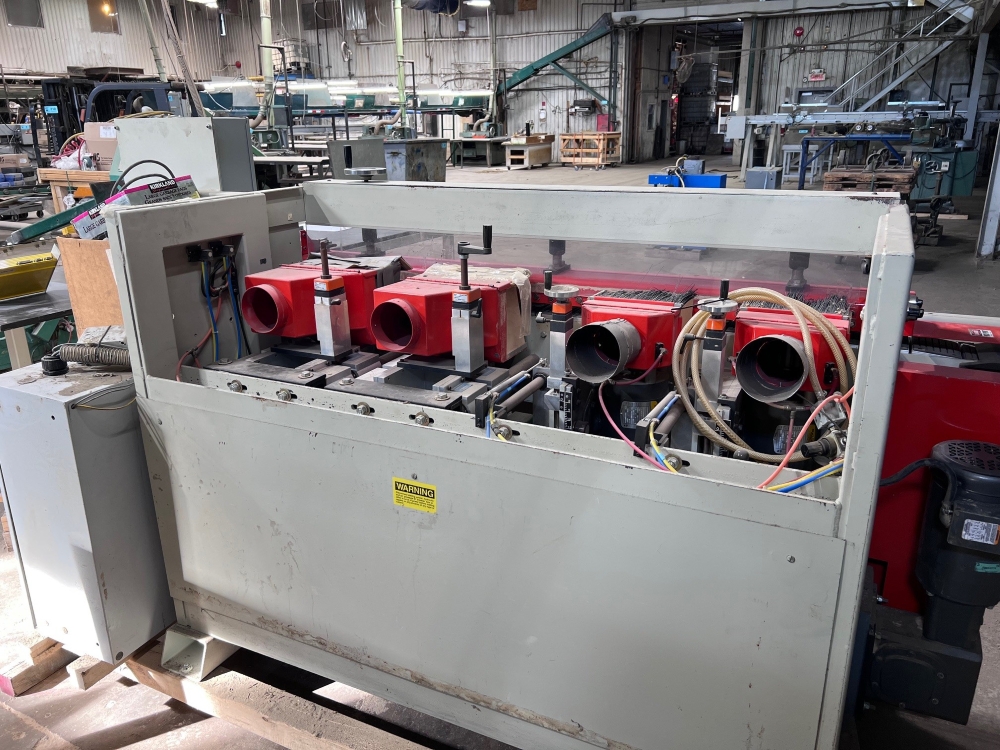

Machine de portes Unique 336-4

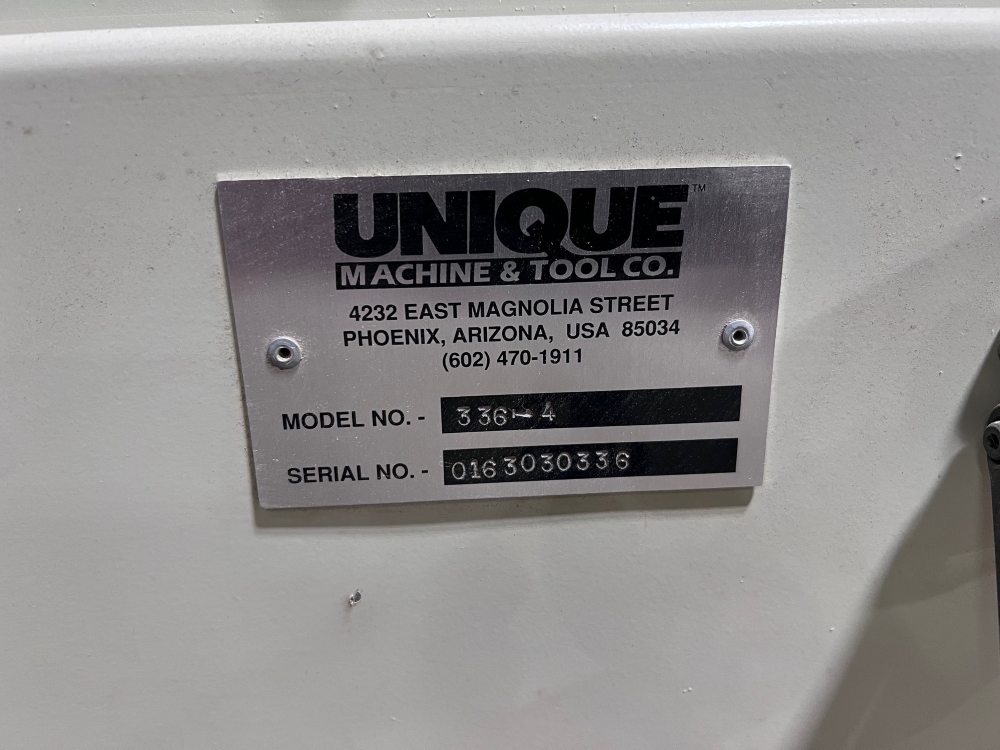

Unique Shape and Sand modèle #336-4
# de série 0163030336

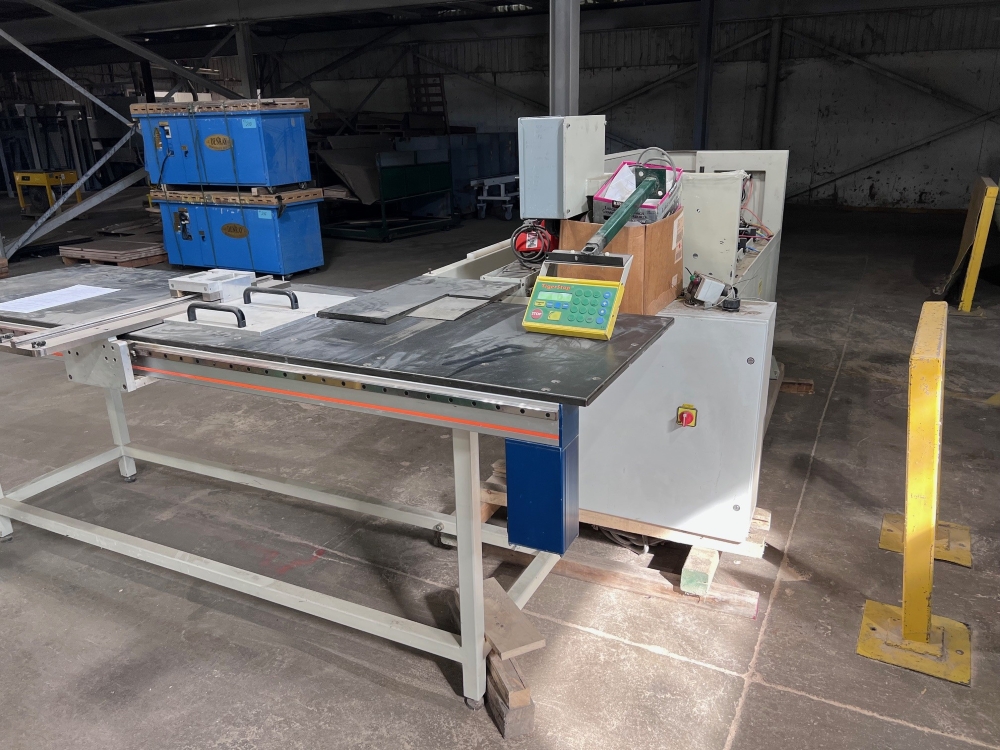

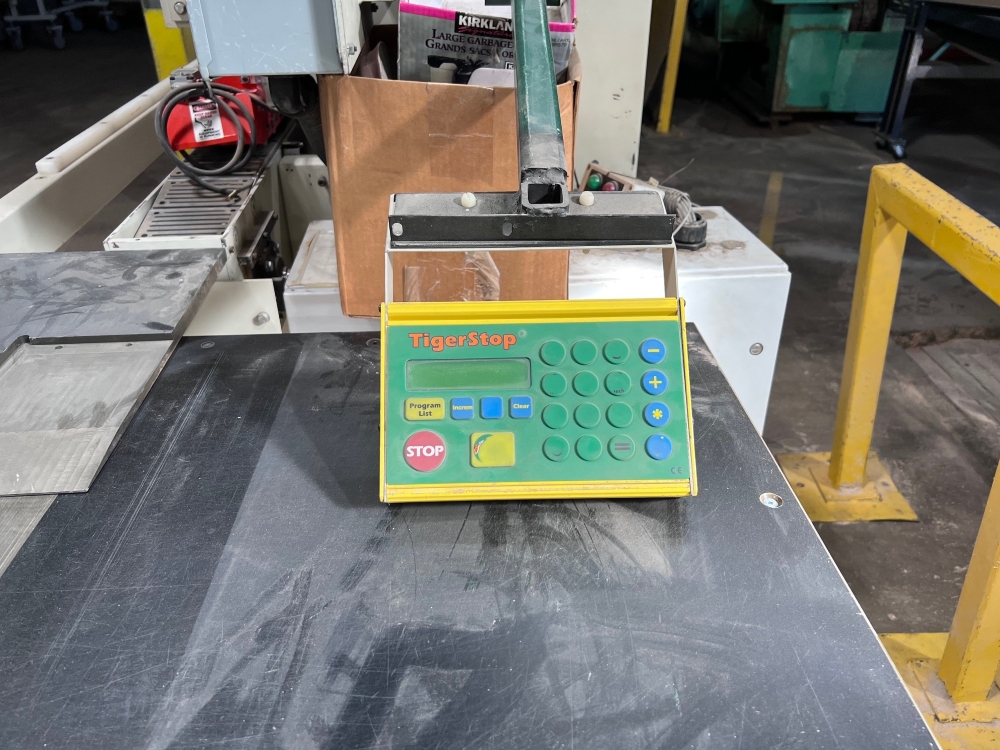

Avec Tiger Stop.

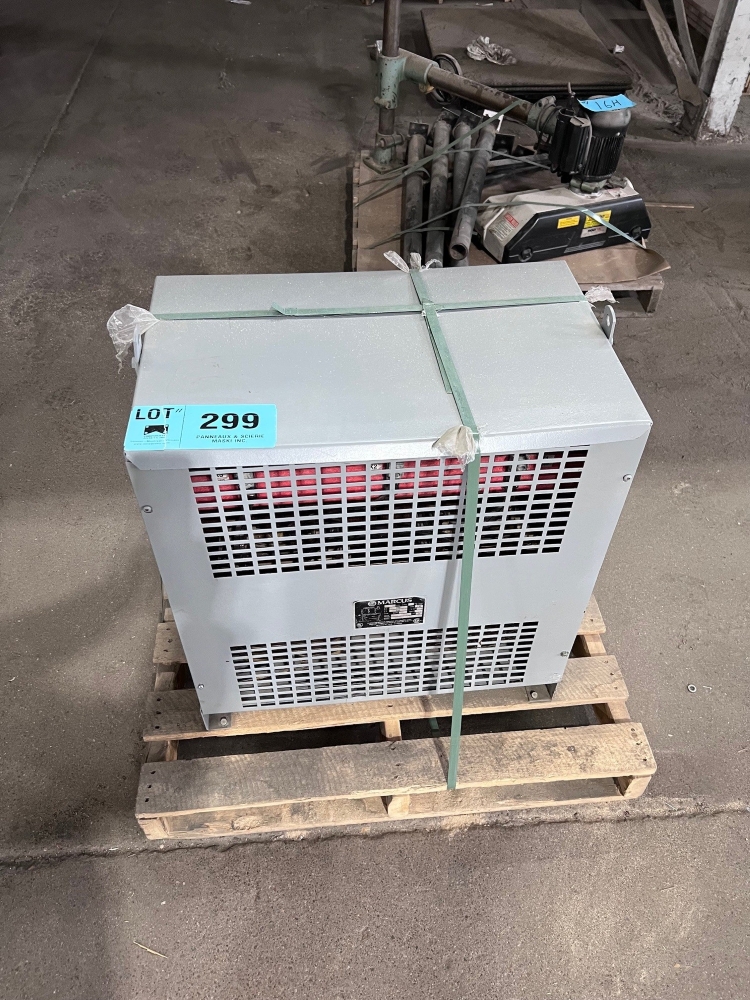

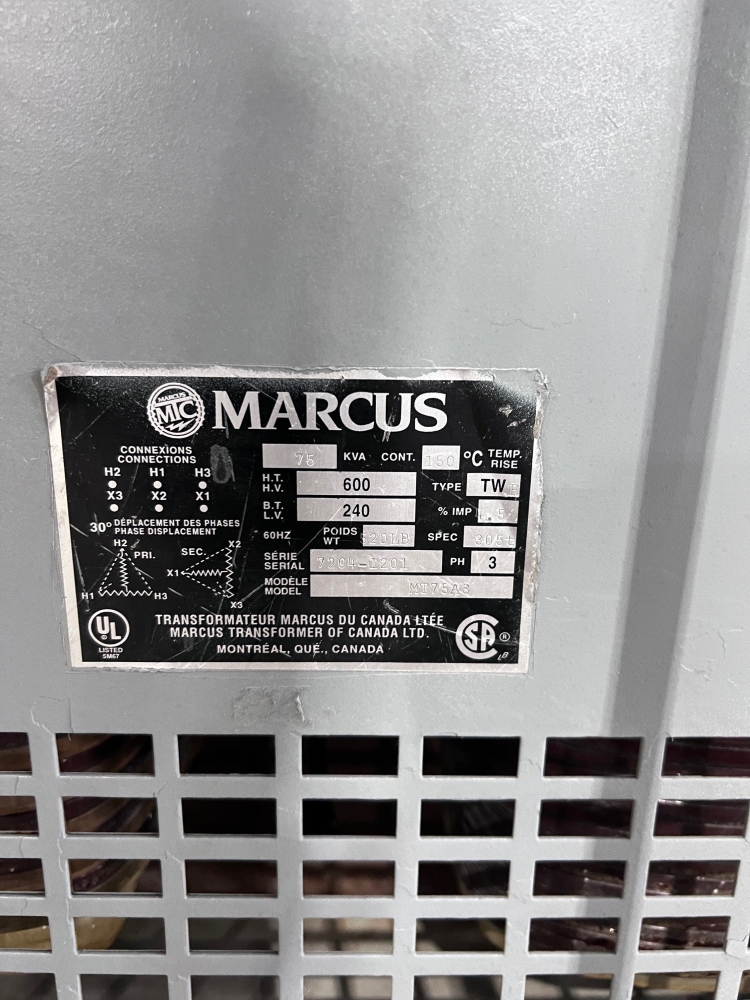

Transformateur pour le 600 volts.
Technical Specifications:
- 2 Shape stations:1st Station: Motor: 10 HP 6 000-7 500 RPM 1-1/4 in. spindle x 5 in. stackable adjustable height spindle.
2nd Station: 7.5 HP 6 000-7 500 RPM 1-1/4 in. spindle x 5 in. stackable adjustable height spindle. - 2 Sand stations:
3rd & 4th Stations: 2 HP variable speed 400-500 RPM 1 in. diameter spindles x 5 in. stackable adjustable height spindles tilt up to 45. - Conveyor Feed: 0-35 FPM
#3390
