Perceuse inséreuse a goujons CNC Gannomat Index 130 logic 2016 471L130

Imprimer

UGS : 2588 Catégorie : Perceuse Inséreuse à Goujons

Description

Description

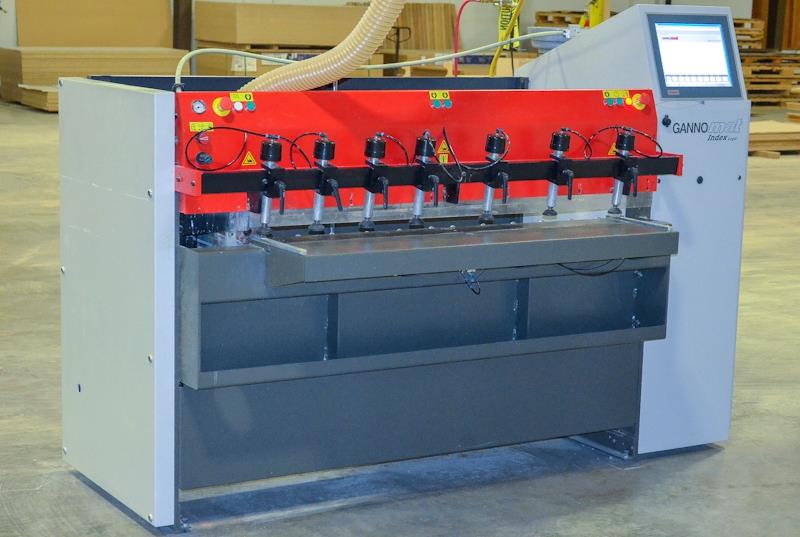

Perceuse inséreuse a goujons CNC Gannomat Index 130 logic 2016 471L130

Année: 2016

Features & Specifications:

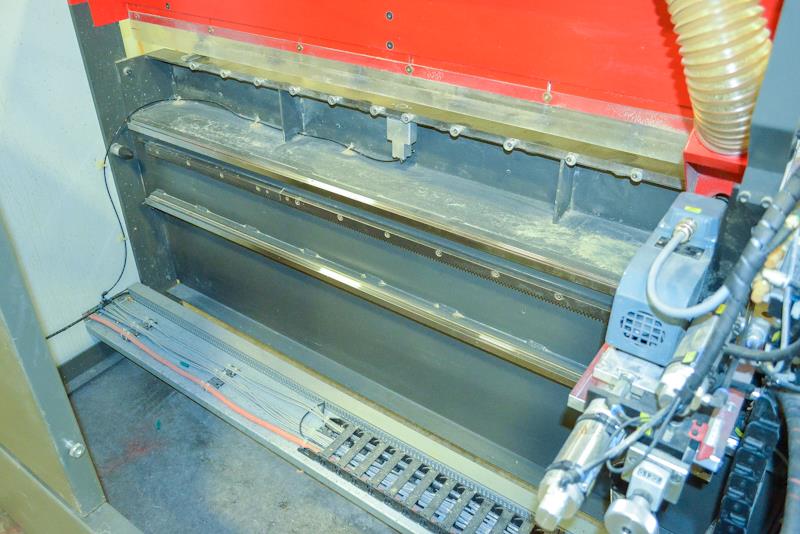

•	X-Axis CNC controlled via precision ball screw Servo drive, Y- & Z-axis adjusted via mechanical spindles, set by manual digital indicators.
•	Working width of 1,300 mm (51.18″) x 3/4″ – 7-3/4″ width x 1/2″ – 3-1/8″ material thickness with (2) fields, LH/RH (mirror-image), Table size 4-1/2″ x 52-3/4″ x 35″ H with 9″ x 52″ Extension

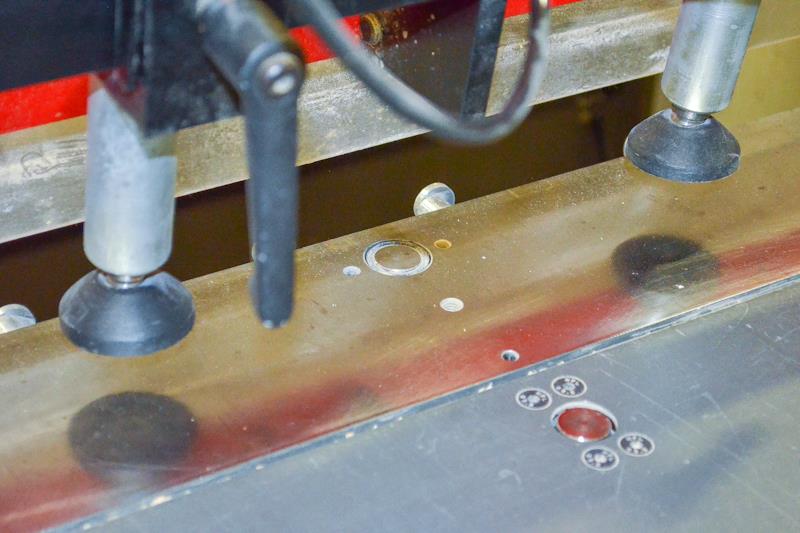

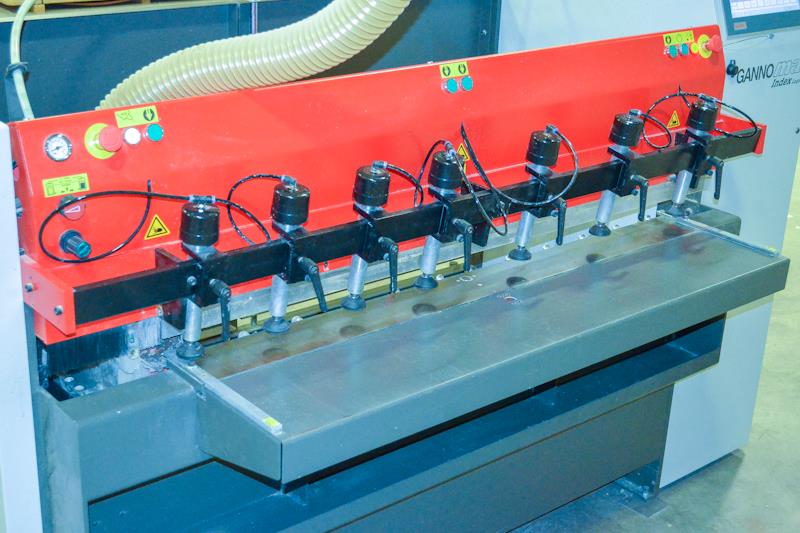

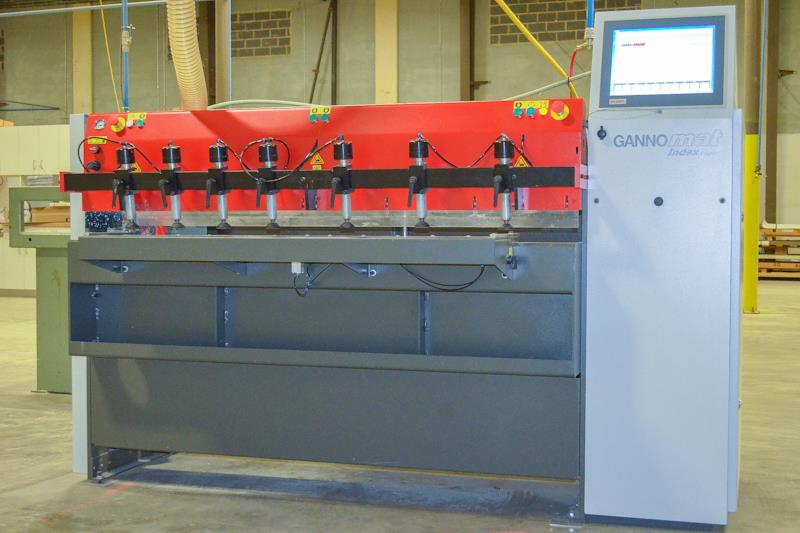

•	(8) Vertical hold-down cylinders for horizontal part processing (1 Not currently installed).

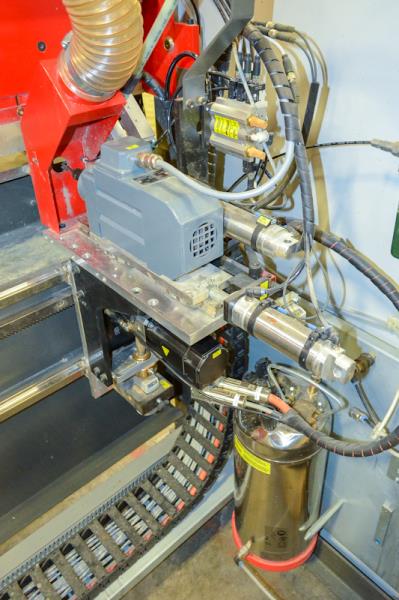

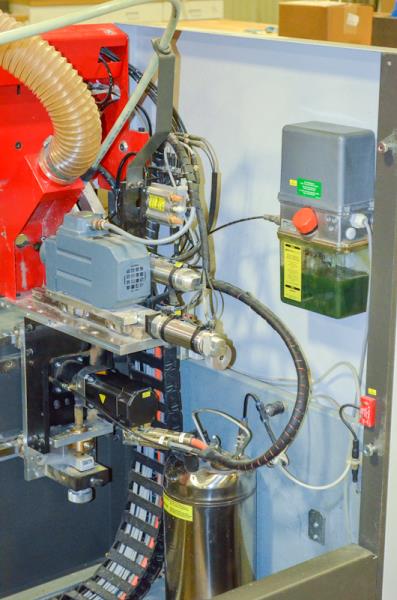

•	Dowel driving & horizontal boring integrated into (1) station; the dowel driving unit is located along side the boring station; both units are mounted on (1) support.

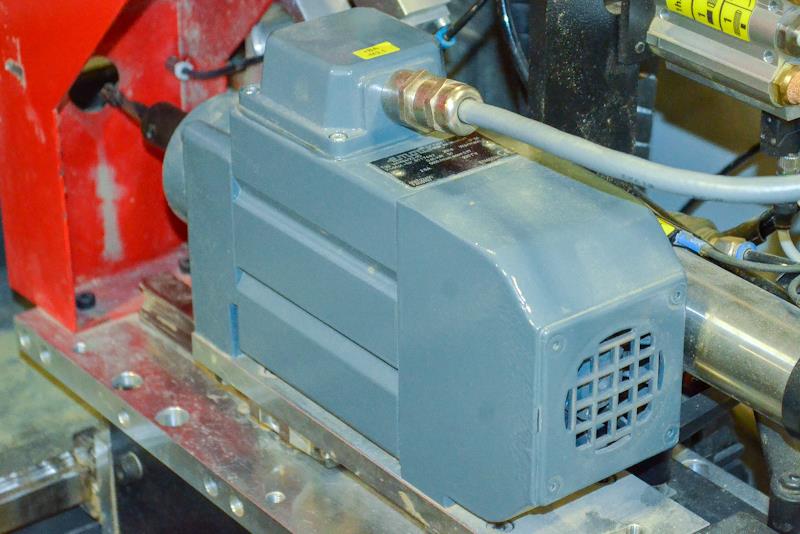

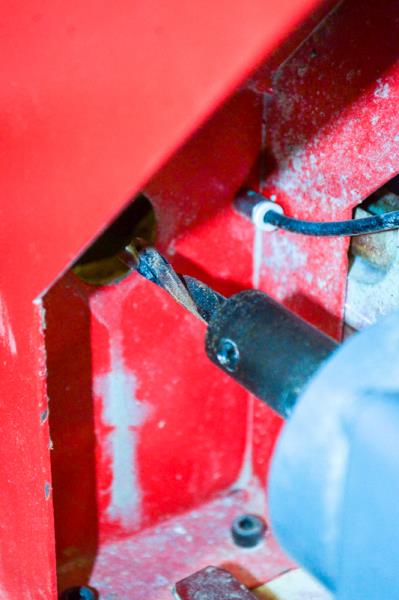

•	Horizontal drilling & boring station head setup for 6 – 8 or 10 mm, dowel length from 25 – 50 mm, 0.65 kW (1.34 HP) Motor

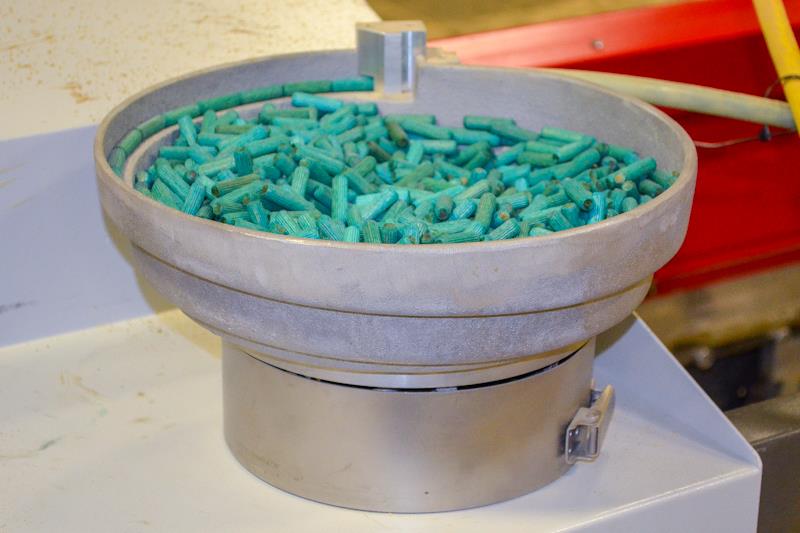

•	Doweling Station includes: 12″ Dia. x 3″ D Vibrating hopper; insertion head & dowel driving with air impulse; setup for 8 mm dia. x 50 mm long dowels.
•	Glue valves controlled individually at control cabinet, central adjustment for the amount of glue by means of digital timer. Operating System:
•	MS-XP & GANNOMAT production software; 15″ color touch-screen monitor interphase, USB drive, bar code capable.

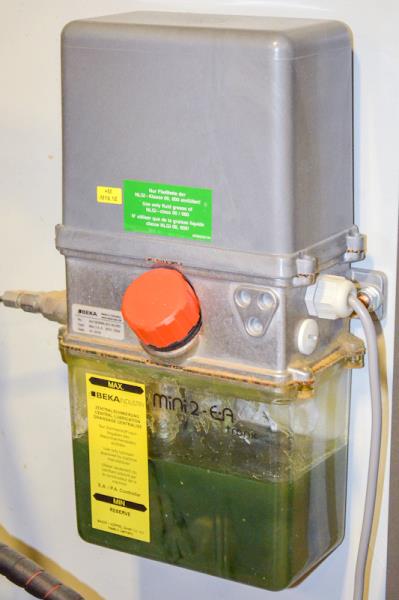

•	Controller & Drive: BECKHOFF « C3620 TWINCAT V2.10″, complete with (1) glue tank, (1) water tank, auto-lubrication system Complete with:
•	Operating Instructions.

MACHINE AUX USA

PRIX USD

2588
