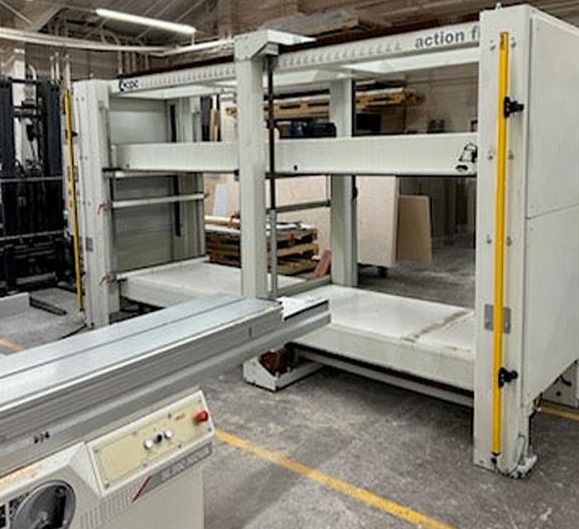

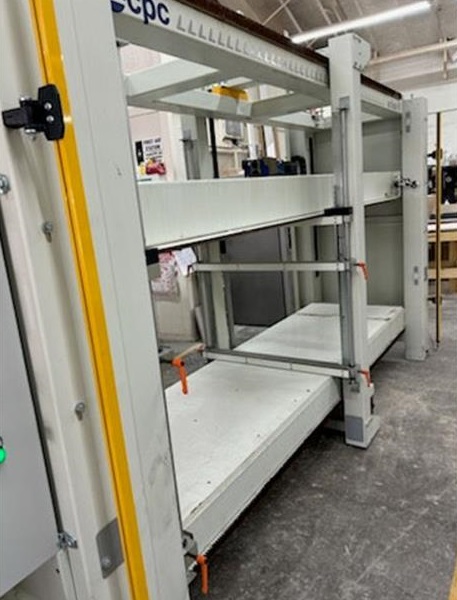

Presse à caisson automatique SCM Action fl 2017

Description:

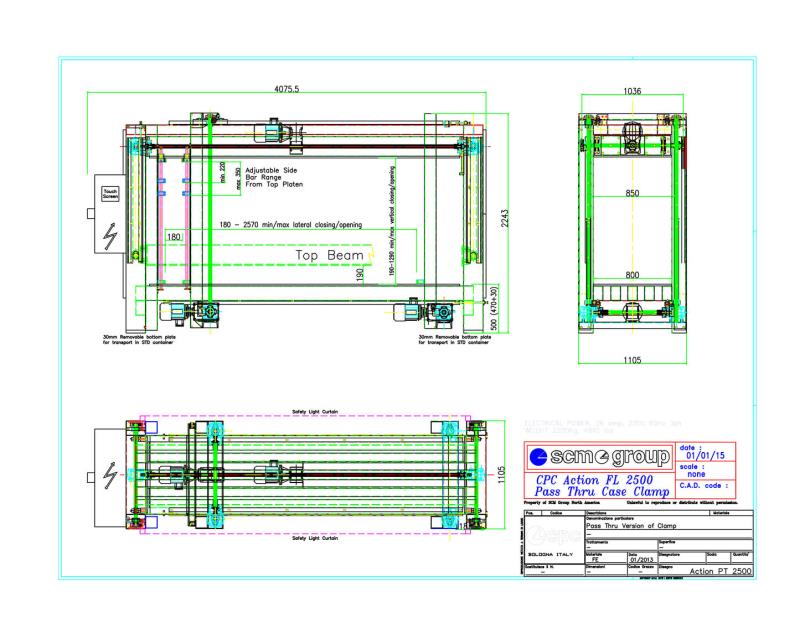

SCM – ACTION FL 2500: Case Camp (Semi-Automatic)

•	Specifications Max. standard working dimensions: 2,500 mm (98.4″) Wide x 1,250 mm (49.2″) high x 800 mm (31-1/2″) depth.
•	Min. standard working dimensions: 250 mm (9.8″ Wide x 250 mm (9.8″) high x 150 mm (5.9″) depth.
•	Working height: 508 mm (20″).
•	Vertical pressing force: 15 kN (3,372 Lbs). Features
•	Full top & bottom platen for: Maximizing pressing PSI on the box.
•	Rack & Pinion guides: All (4) corners of the top platen & side pressure to keep the top platen parallel and the side pressure square.
•	Sizes of box can be input for efficient cycle control when running repetitive box closings.
•	Machine finds the size of the box; Operator only opens the Clamp to a size larger than the box to be clamped.
•	Vertical & horizontal pressure: Adjustable according to the type of furniture to be assembled.
•	Machine is equipped with: (3) Side pressure bars & able to sequence different furniture pieces without manual intervention.
•	Pressure supplied by: Infinitely adjustable brushless electric motors. Complete with:

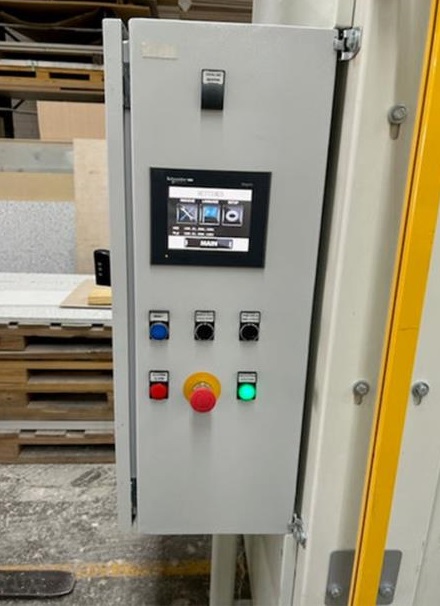

•	5.7″ Touchscreen panel with: CPC Software to program cycles.
•	Rack & Pinion system, brushless motors.

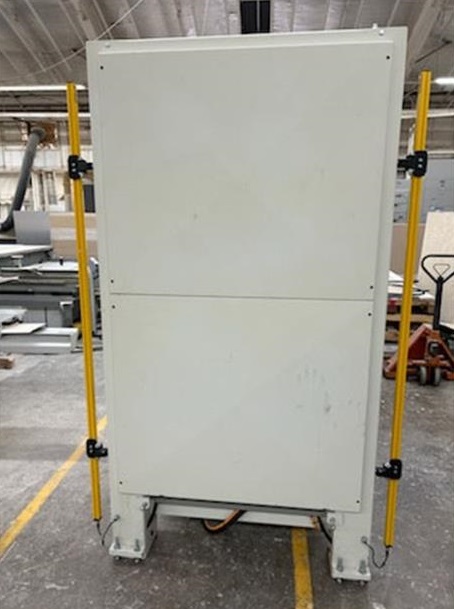

•	Front & rear photocell barriers.

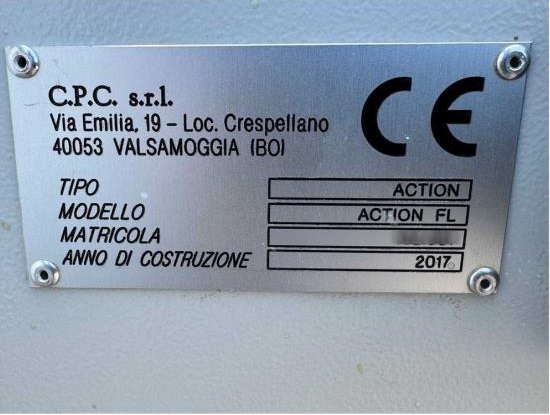

•	Actual Model SCM CPC ACTION FL 2500

MACHINE AUX USA

PRIX USD
