Description

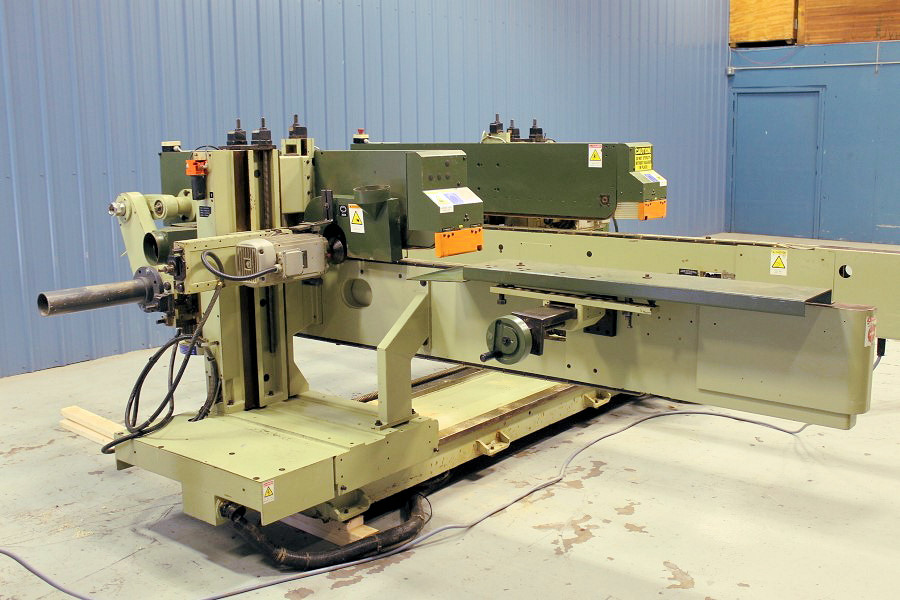

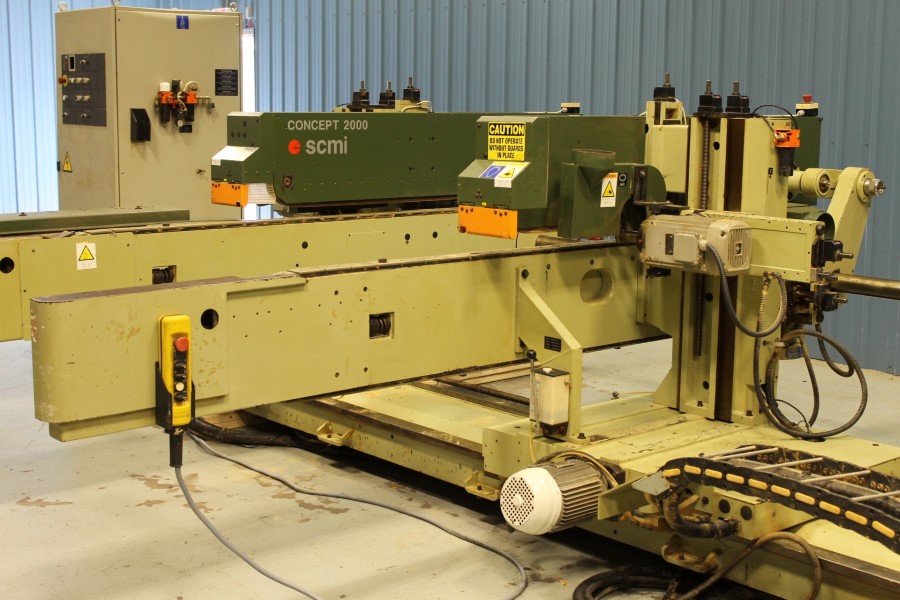

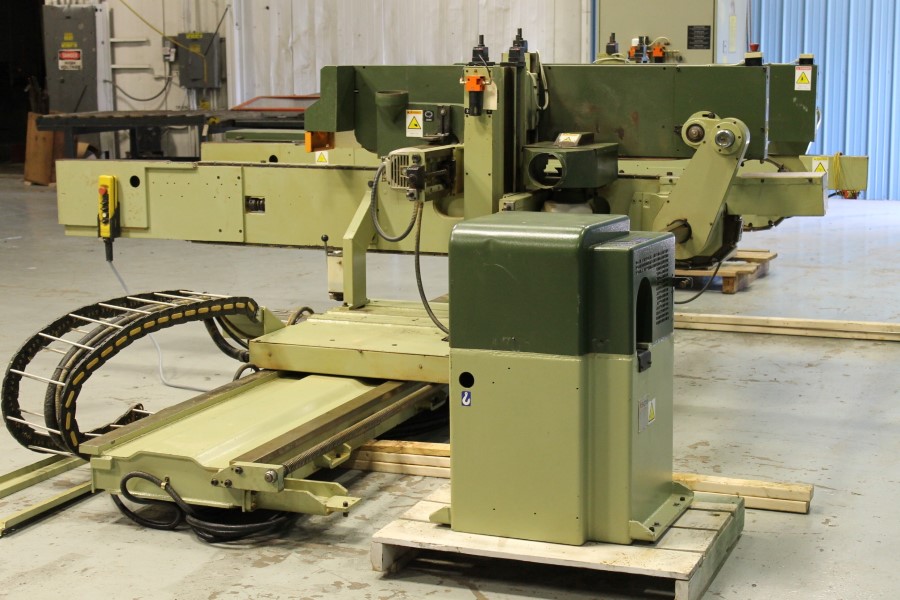

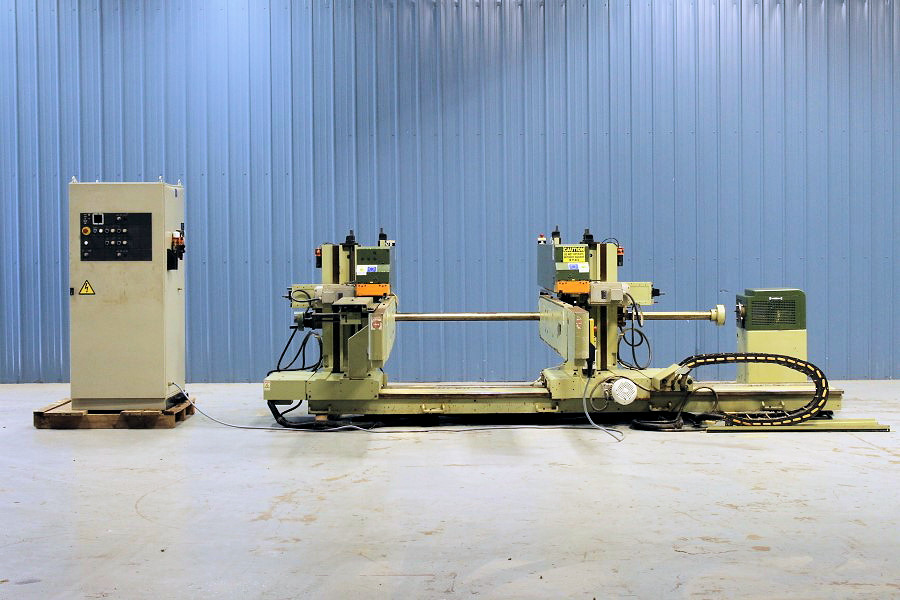

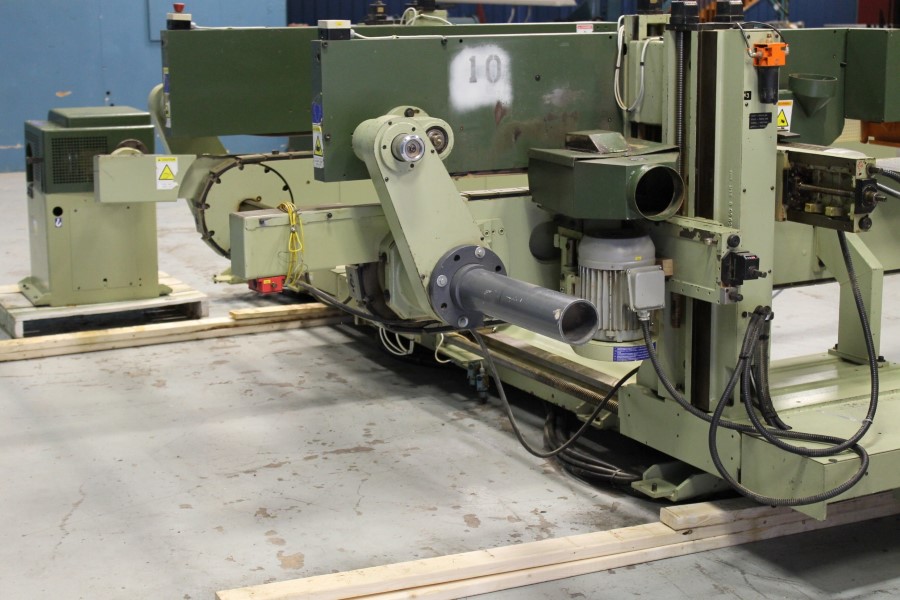

Tenonneuse double SCNI Concept 2000
Année: 1997
• 102″ (2,600 mm) Opening cap., motorized opening with keypad entry & LED readout.
• 36″approx. infeed chain area in front of holddowns,
• 0″ – 4″ motorized thickness opening with mechanical digital readout, 6″ min. width, 2-post machine.
Each side equipped with:
• 1st Station: Trim saw tilitng 0-45° , 6.4/9 HP, 3,450/5680 RPM
• 2nd Station: Coping unit with 9. HP motor, 7,000 RPM
• 2 HP Drive for 10 – 60 FPM variable feed speed,

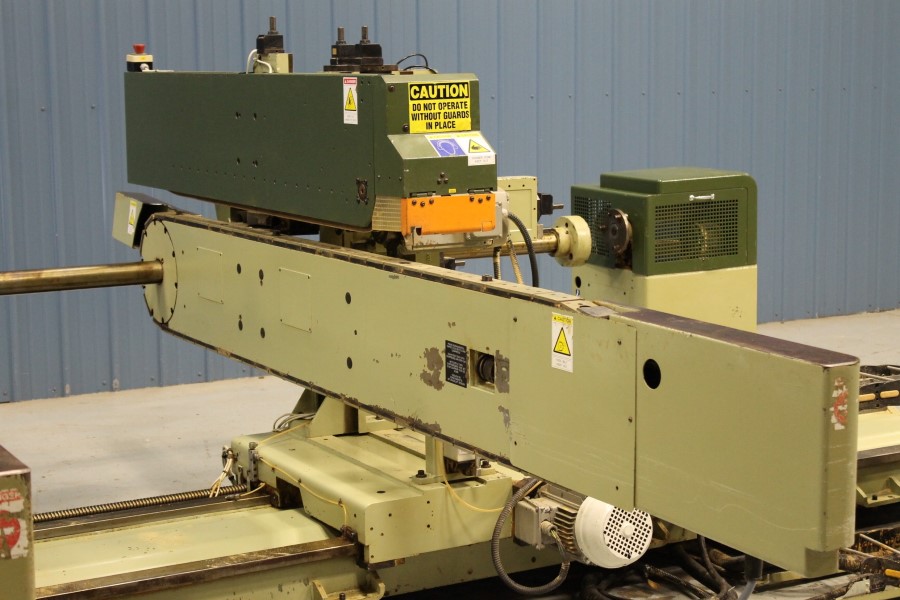

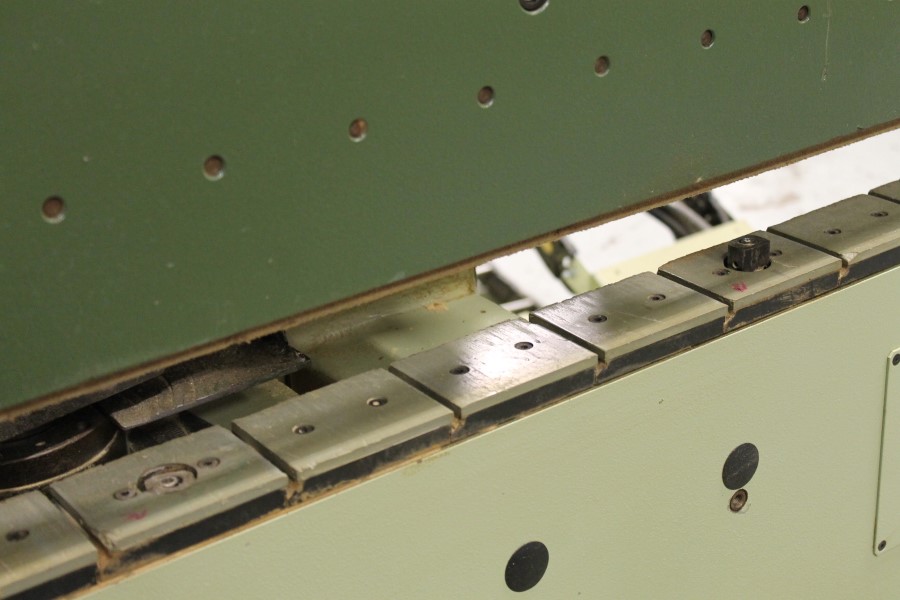

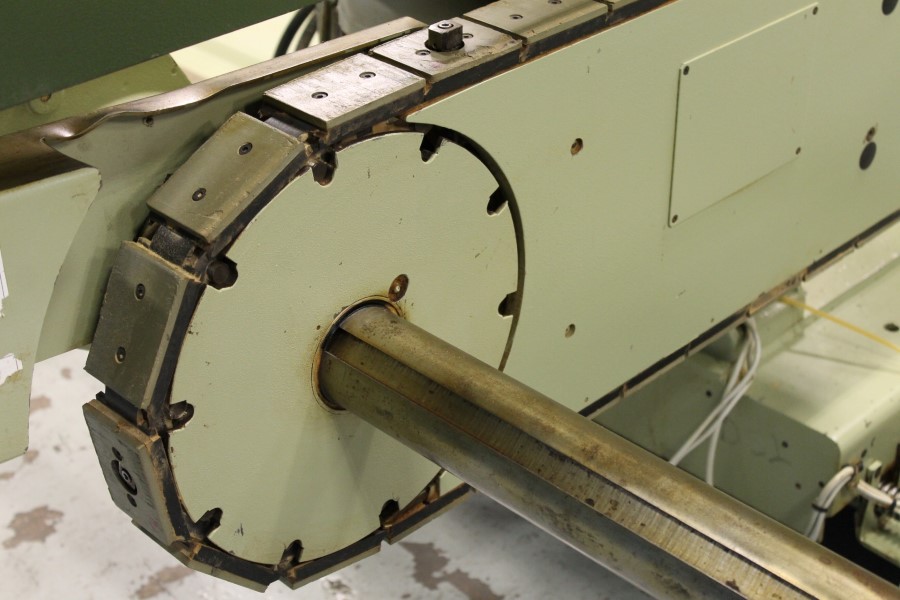

• Chain dogs on 15-3/4″ centers, rubber top non-marring chain pads,
• Heavy Duty chain links with needle bearings, automatic oil mist chain oiler, automatic brake on feed motor with emergency stop.
Complete with:

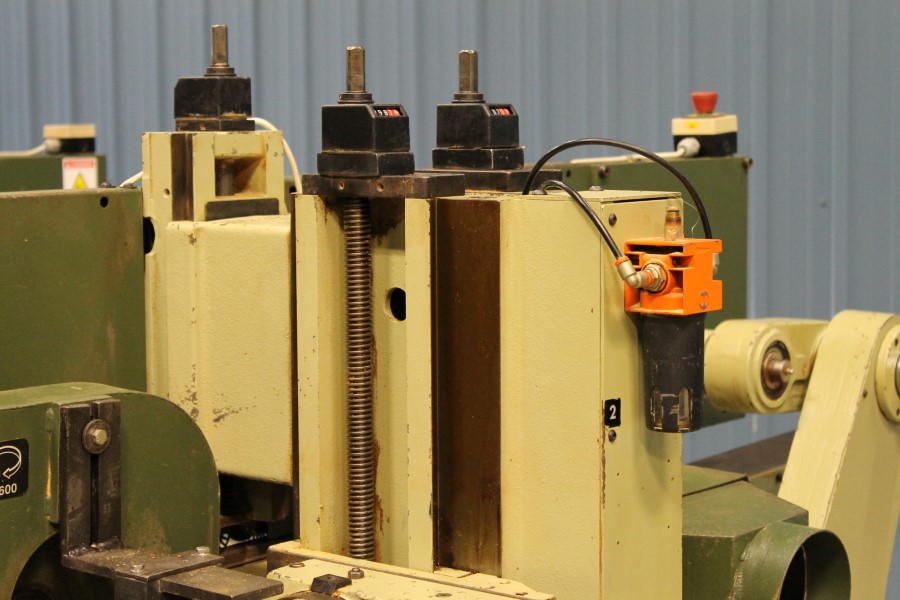

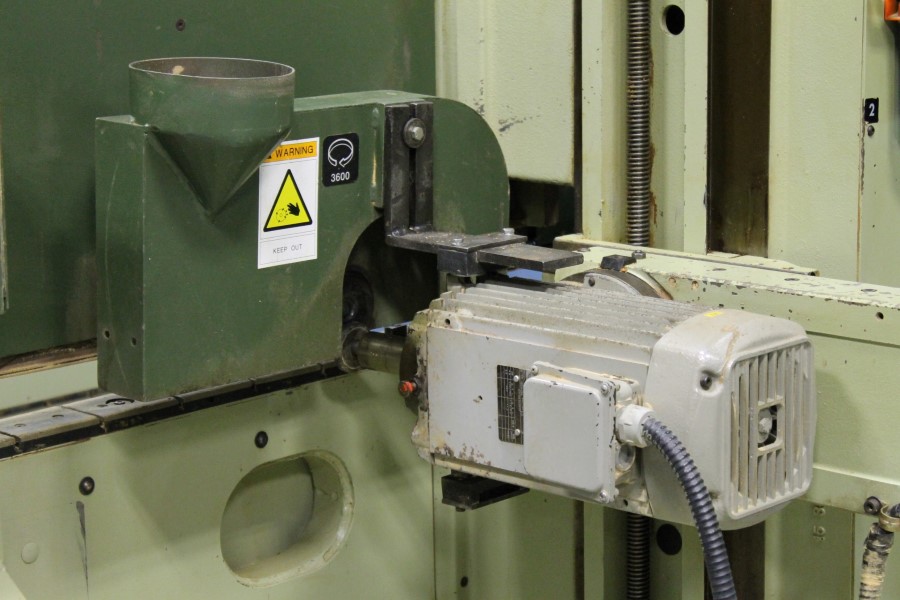

• : Upper driven holddowns with continuous feed belts, feed beams can be disengaged for conventional part feeding in front of dogs; mobile remote control for setup, dual lead screw for traversing beam, and exhaust hoods on all heads.

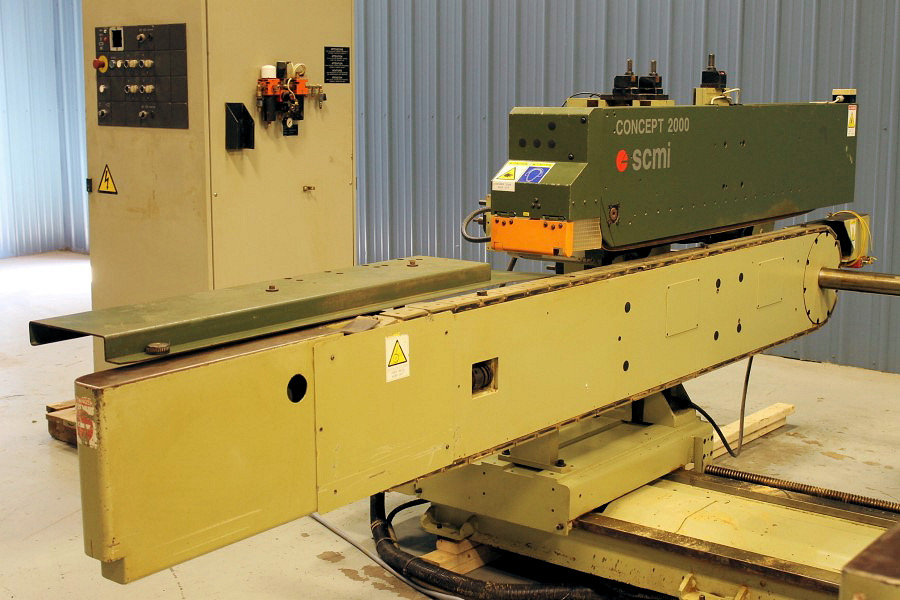

• Stand alone control cabinet w/ push button controls
• Adjustable infeed fence
