Description

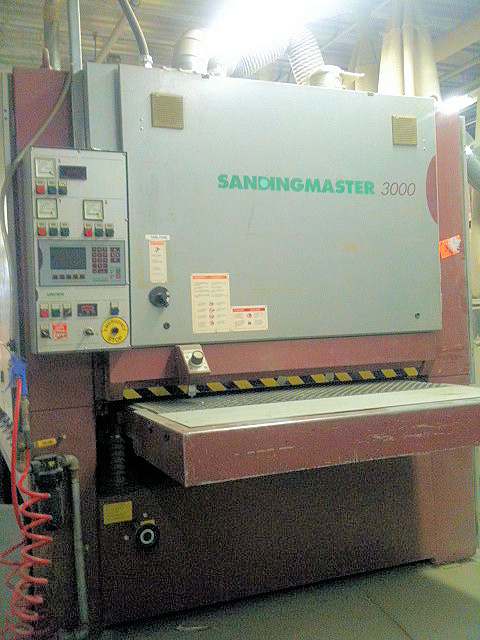

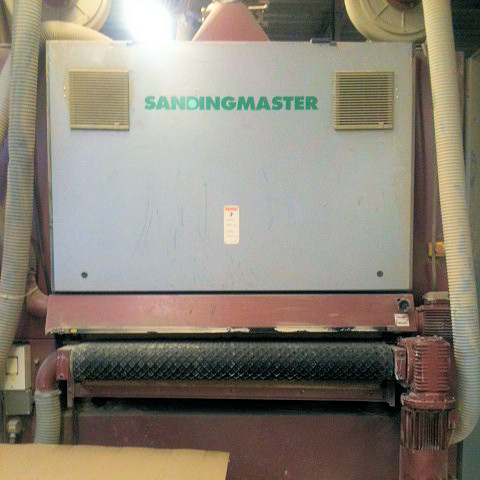

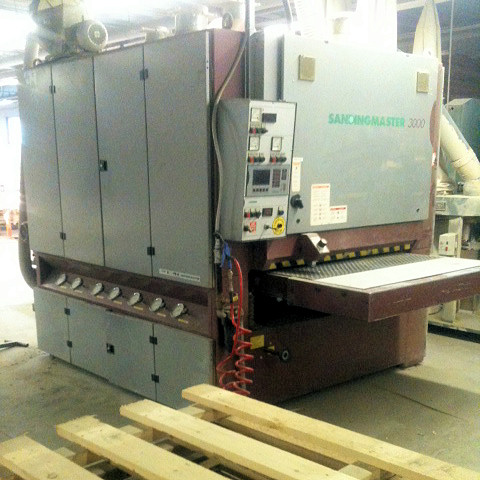

Sableuse à bande large SANDINGMASTER SA-3301-53 pouces 1994
3 stations

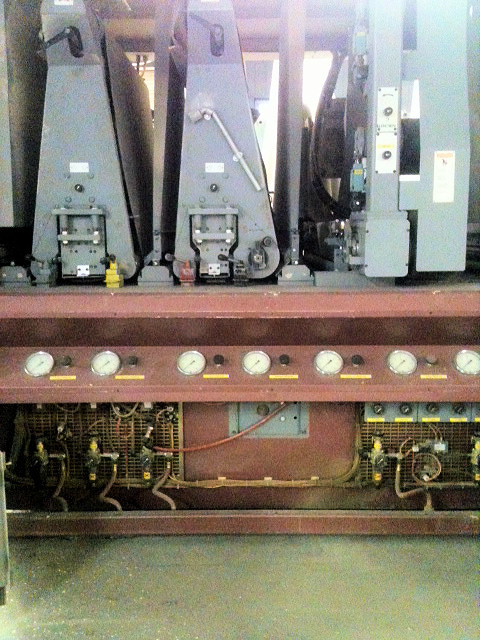

- 3-Heads, 53″ width cap. – Head sequence: Segmented cross-belt, combination head with segmented platen, and segmented platen.
- 1st Head: Cross-belt with electronically controlled segmented air platen, each segment 22 mm wide, 183″ long inside Chevron belt, 17 & 22 HP – 1,500/3,000 RPM 2-speed motor, 6″ wide x 204″ long abrasive belt.
- 2nd Head: Combination head with rubber covered contact roll (Shore-80) and segmented platen, electronically controlled 22 mm wide air segments, 21 & 25 HP – 1,500/3,000 RPM 2-speed motor.
- 3rd Head: Segmented polishing platen, electronically controlled 22 mm wide air segments, 15 HP frequency inverter controlled motor for belt speeds from 4 – 16 MPM, digital readout of sanding belt speed.
- 54″ x 103″ Abrasive belt size on heads #2 & #3 with electronic tracking, rotary panel cleaning brush on outfeed and conveyor belt cleaning brush.
- « LINDOTRONIC NC » Controlled segmented platens, programmable control with graphic screen readout; individual programs control dwell time of segments, air pressure control of all segments from +3 to -3 of segments in contact with edge of panel, conveyor belt feed speed, and thickness opening.
- Equipped with: 3 HP Variable feed inverter drive from 13 – 66 FPM, digital readout of feed speeds, vacuum bed assembly with (2) vacuum zones and (2) vacuum pumps.
- LINDOMATIC Automatic part thickness opening with digital readout of thickness, air blast abrasive belt cleaners with extraction funnels, rubberized in- & outfeed holddown pinch rollers on all heads, infeed safety stop, outfeed emergency stop, electronic brakes on all sanding heads.
Complete with: Motor load meters, high efficiency dust extraction and separate control console. – Actual model « SA-3301-1350-DFK »
0252
